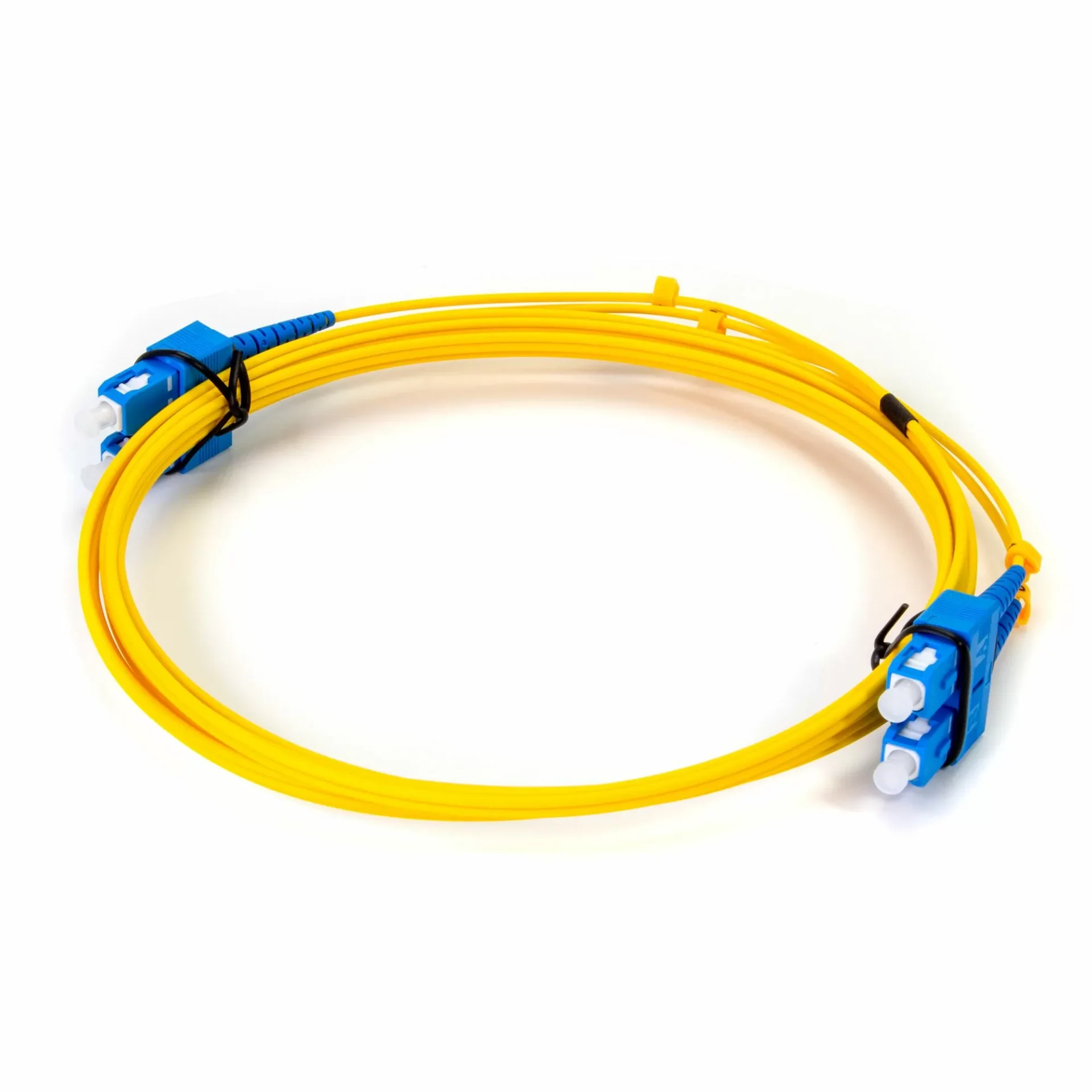

Fiber Patch chord MM SC-SC 3M
Fiber Patch Cord MM SC-SC 3M is a high-quality multimode fiber optic patch cable designed for reliable, high-speed data transmission in networking and telecommunications environments. It features SC-to-SC connectors on both ends and a 3-metre cable length, making it suitable for connecting fiber patch panels, switches, media converters, and other fiber-optic equipment.
The Fiber Patch Cord MM SC-SC 3M provides a dependable connection with low insertion loss and is suitable for LANs, data centers, telecommunications installations, and other fiber networking applications. Depending on the fiber grade, multimode versions may use 50/125 µm or 62.5/125 µm fiber.
Key Features
- SC-to-SC fiber optic connectors
- Multimode (MM) fiber
- 3-metre length
- Suitable for high-speed data transmission
- Low insertion loss
- Durable protective jacket
- Easy to install and maintain
- Ideal for network racks and fiber patch panels
- Suitable for LAN, data center, and telecommunications applications
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Multimode Fiber Patch Cord |
| Connector Type | SC to SC |
| Fiber Mode | Multimode |
| Cable Length | 3 Metres |
| Fiber Core | 50/125 µm or 62.5/125 µm, depending on variant |
| Fiber Type | OM1 / OM2 / OM3 / OM4, depending on variant |
| Connector Polish | SC/UPC |
| Configuration | Duplex, where applicable |
| Typical Insertion Loss | ≤ 0.3 dB |
| Wavelength | 850 nm / 1300 nm |
| Jacket | PVC or LSZH, depending on variant |
| Application | LAN, data center, telecommunications, fiber networking |
| Compatibility | Fiber patch panels, switches, SFP/SFP+ equipment, media converters |
| Length | 3 m |
Cable Specifications:
- Wavelengths: 850 and 1300nm
- Color Code: Orange
- Bend Radius: Minimum / 3.8cm
- Cable Jacket: 3.0mm PVC
- Operating Temperature: -40° to +85° C
- Fiber Core: OM2 50/125um
- Jacket: Standard Zip Cord Duplex
- Length in Meters: 3
- Length in Feets: 9.84252
- Termination: Connector A (SC) / Connector B (SC)
- Polarity: A(Tx) to B(Rx)
- Insertion Loss: ≤0.3dB
- Return Loss: ≥50dB
- Polish: UPC to UPC
Features:
- Low insertion loss
- Good inter-insertion performance
- Good interchangeability
- Good temperature stability
- Good repeatability
- Large return loss
- Stable and reliable transmission
- Compliance with international IEC quality testing standards
