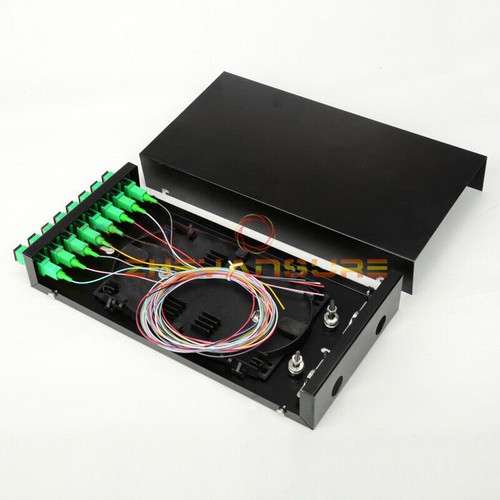

8 Port fiber tray With SC simplex adapters
The 8 Port Fiber Tray with SC Simplex Adapters is a compact fiber optic termination and distribution unit designed for secure fiber splicing, patching, and cable management in FTTH, enterprise, and telecommunications networks. Equipped with 8 SC simplex adapters, this fiber tray provides a reliable connection point for up to 8 single-mode or multimode fiber cores while protecting spliced fibers from damage.
Manufactured from durable cold-rolled steel or high-quality ABS (model dependent), the tray offers easy installation and maintenance, making it ideal for wall-mounted cabinets, communication rooms, and small network installations.
Key Features
- Supports up to 8 fiber connections
- Pre-installed with 8 SC simplex adapters
- Compatible with Single Mode (OS2) and Multimode (OM1/OM2/OM3/OM4) fiber
- Compact and space-saving design
- Integrated splice tray for organized fiber management
- Durable steel or ABS construction
- Easy cable routing and strain relief
- Suitable for wall-mounted or cabinet installations
- Quick installation and maintenance
- Ideal for FTTH and enterprise fiber networks
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Fiber Optic Tray / Termination Box |
| Port Capacity | 8 Ports |
| Adapter Type | SC Simplex |
| Fiber Compatibility | Single Mode (OS2) & Multimode (OM1/OM2/OM3/OM4) |
| Splice Capacity | Up to 8 Fibers |
| Material | Cold-Rolled Steel / ABS Plastic (Model Dependent) |
| Mounting Type | Wall Mount / Cabinet Mount |
| Cable Entry | Top, Bottom, or Rear |
| Color | Black / White (Model Dependent) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Compliance | IEC, TIA/EIA, RoHS |
Applications
- FTTH (Fiber to the Home)
- Enterprise Networks
- Telecommunications
- Optical Distribution Points
- Data Centers
- CCTV over Fiber
- Campus Networks
- Small Server Rooms
- Fiber Backbone Distribution
Package Contents
- 1 × 8 Port Fiber Tray
- 8 × SC Simplex Adapters
- 1 × Fiber Splice Tray
- Cable Management Accessories
- Mounting Screws
- Installation Guide
