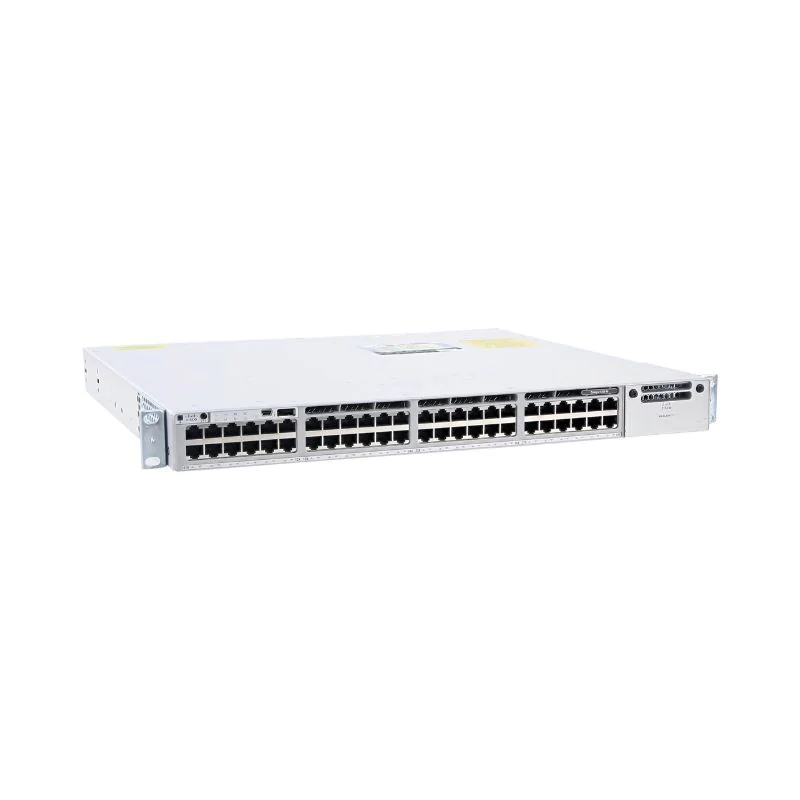

Buy Cisco C9300L-48P-4G-E Catalyst 9300L Series 48 Port PoE Switch from Brighttech Kenya
The Cisco C9300L-48P-4G-E Catalyst 9300L Series 48-Port PoE Switch is part of Cisco’s industry-leading Catalyst 9300L family, purpose-built for secure, scalable, and efficient enterprise access. Designed for high-density PoE+ deployments, this Layer 3 managed switch provides superior performance, reliability, and security for modern networks.
Key Features
48 × 10/100/1000 Mbps RJ-45 ports with full PoE+ (Power over Ethernet Plus) support
4 × 1 Gbps SFP uplinks for flexible fiber connectivity
505 W PoE budget to power IP phones, wireless access points, and IoT devices
StackWise-320 stacking technology supporting up to 8 switches with 320 Gbps stack bandwidth
Cisco IOS XE operating system with automation, security, and telemetry capabilities
8 GB DRAM / 16 GB Flash for modern network scalability
Network Essentials license for advanced Layer 2 and Layer 3 capabilities
1U rack-mountable form factor with front-to-back cooling design
Technical Specifications
- Model: Cisco C9300L-48P-4G-E
- Series: Cisco Catalyst 9300L Series
- Ports: 48 × 1G PoE+ RJ-45
- Uplinks: 4 × 1G SFP fixed
- Switching Capacity (Standalone): 104 Gbps
- Switching Capacity (Stacked): Up to 424 Gbps
- Forwarding Rate (Standalone): 77.38 Mpps
- Forwarding Rate (Stacked): 315.48 Mpps
- PoE Budget: 505 W (PWR-C1-715WAC-P power supply)
- Stacking Support: Up to 8 switches via StackWise-320
- MAC Address Table: 32,000 entries
- IPv4 Routes: 32,000 entries (24,000 direct + 8,000 indirect)
- IPv6 Routes: 16,000 entries
- VLAN Support: Up to 4,094 VLANs
- QoS Entries: 5,120
- ACL Entries: 5,120
- Jumbo Frame Support: 9,198 bytes
- Flexible NetFlow Entries: 64,000 flows
- DRAM: 8 GB
- Flash Memory: 16 GB
- Mean Time Between Failures (MTBF): ≈ 314,140 hours
- Layer 2 / Layer 3 Features
Layer 2: VLANs, STP, RSTP, MSTP, PVLANs, QoS, 802.1X, port security
Layer 3: Static Routing, OSPF, EIGRP Stub, VRRP, Policy-Based Routing
Automation & Management: Cisco DNA Center, NETCONF, RESTCONF, YANG, Model-Driven Telemetry
Security: 802.1X, MACsec-128, DHCP snooping, Dynamic ARP Inspection, Control Plane Policing (CoPP)
Physical & Environmental
Form Factor: 1U rack-mountable
Dimensions (H × W × D): 1.73 × 17.5 × 16.1 in (4.4 × 44.5 × 40.9 cm)
Weight: ≈ 7.03 kg (15.46 lb)
Operating Temperature: –5 °C to +45 °C (at 5,000 ft)
Cooling: Front-to-back airflow
Power Supply: PWR-C1-715WAC-P (AC Power)
Optional Secondary PSU: for increased PoE budget (855 W / 1,220 W options available)
Benefits
High PoE+ density: Power 48 devices without external injectors.
Enterprise reliability: Redundant power and stacking for zero downtime.
Scalability: Up to 8 switches in a single stack for larger networks.
Security Built-In: MACsec, 802.1X, TrustSec, and advanced access control.
Future-ready architecture: Cisco IOS XE enables automation, telemetry, and SD-Access integration.
Ideal Use-Cases
Enterprise access layer deployments
Campus and branch office networks
High-density PoE+ environments (IP phones, APs, cameras)
Layer 3 routed access designs
Smart building and IoT networks
Important Notes
Default uplinks are 4 × 1 Gb SFP; for higher-speed uplinks, choose a model with 10 G ports.
The 505 W PoE budget may limit maximum PoE+ power across all 48 ports simultaneously.
Network Essentials license includes core Layer 3 features; advanced routing (BGP, MPLS) requires Network Advantage.
Stacking requires a separate StackWise-320 kit.
