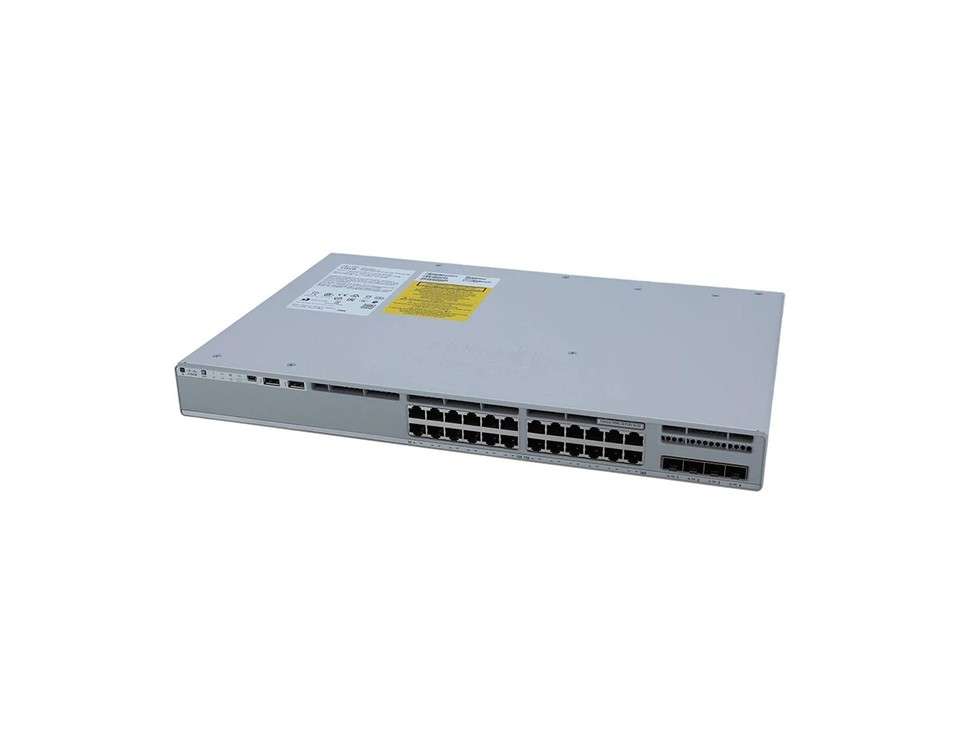

Cisco Switch Catalyst 9200 (C9200L-24P-4G-E)
The Cisco Switch Catalyst 9200L (C9200L-24P-4G-E) switch delivers enterprise-grade access performance and reliability in a compact, cost-effective design. It extends the power of the Cisco Catalyst 9000 family to small and medium-sized businesses, branch offices, and campus networks.
Equipped with 24 PoE+ Gigabit Ethernet ports and 4 × 1 Gigabit SFP uplinks, it provides robust connectivity for IP phones, access points, and surveillance devices while maintaining high-speed data performance.
Powered by Cisco IOS XE software, the Catalyst 9200L offers advanced security, automation, and analytics capabilities, making it ideal for future-ready networks. Its stackable architecture with up to 80 Gbps stacking bandwidth ensures scalability as your network grows.
Key Benefits for Cisco Switch Catalyst 9200 (C9200L-24P-4G-E)
Enterprise-class Layer 2 / Layer 3 switching with Cisco IOS XE.
24 × 10/100/1000 Mbps PoE+ ports for powering connected devices.
4 × 1 Gigabit SFP uplink ports for flexible network expansion.
56 Gbps switching capacity and 41.6 Mpps forwarding rate.
Enhanced hardware security with Trust Anchor and Secure Boot.
StackWise-160 support with up to 80 Gbps stacking bandwidth.
Energy-efficient operation and simplified management.
Backed by Cisco Enhanced Limited Lifetime Warranty (E-LLW).
Ideal for offices, campuses, and enterprise environments that require stable power delivery, strong security, and simplified automation.
Specifications
C9200L-24P-4G-E Specification | |
| Downlinks total 10/100/1000 or PoE+ copper ports | 24 ports full PoE+ |
| Uplink configuration | 4x 1G fixed uplinks |
| Default primary AC power supply | PWR-C5-600WAC |
| Fans | Fixed redundant |
| Software | Network Essentials |
| Chassis Dimensions | 1.73 x 17.5 x 11.3 in 4.4 x 44.5 x 28.8 cm |
| Weight | 4.35 Kg |
| Virtual Networks | 1 |
| Stacking bandwidth | 80 Gbps |
| Total number of MAC addresses | 16,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 11,000 (8,000 direct routes and 3,000 indirect routes) |
| IPv4 routing entries | 3,000 |
| IPv6 routing entries | 1,500 |
| Multicast routing scale | 1,000 |
| QoS scale entries | 1,000 |
| ACL scale entries | 1,500 |
| Packet buffer per SKU | 6 MB buffers for 24- or 48-port Gigabit Ethernet models |
| Flexible NetFlow (FNF) entries | 16,000 flows on 24- and 48-port Gigabit Ethernet models |
| DRAM | 2 GB |
| Flash | 4 GB |
| VLAN IDs | 1024 |
| Total Switched Virtual Interfaces (SVIs) | 512 |
| Jumbo frames | 9198 bytes |
| Wireless bandwidth per switch | N/A |
| Switching capacity | 56 Gbps |
| Forwarding rate | 83.33 Mpps |
| Mean time between failures (hours) | 392,210 |
