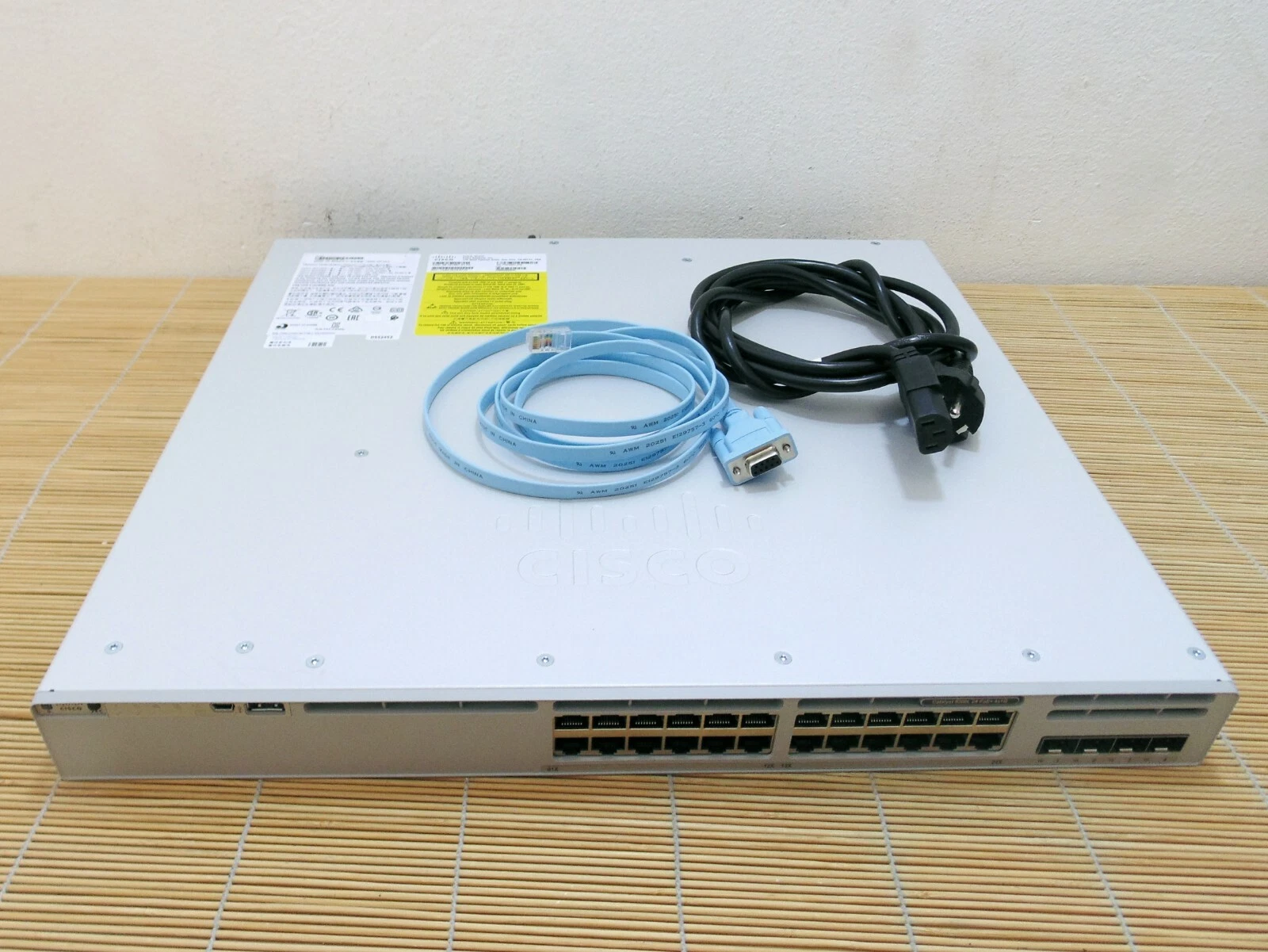

Cisco C9300L-24P-4G-E Catalyst 9300L Series 24-Port PoE Switch
The Cisco C9300L-24P-4G-E Catalyst 9300L Series 24-Port PoE Switch delivers high-performance, secure, and scalable connectivity for enterprise access networks. Featuring 24 × 1G PoE+ ports, 4 × 1G SFP uplinks, and a 505 W PoE power budget, this switch supports a wide range of powered devices including IP phones, cameras, and wireless access points.
Powered by Cisco IOS XE software, the Cisco C9300L-24P-4G-E Catalyst 9300L Series 24-Port PoE Switch offers advanced automation, telemetry, and Layer 3 capabilities for modern, cloud-managed networks. With StackWise-320 technology, up to 8 switches can be combined for seamless scalability and redundancy.
Ideal for businesses upgrading to a secure and efficient access layer, this model ensures top-tier performance, reliability, and flexibility in demanding enterprise environments.
Key Features
24 × 10/100/1000 Mbps RJ-45 ports with full PoE+ (802.3at) support
4 × 1G SFP fixed uplink ports
505 W PoE power budget for connected powered devices
StackWise-320 stacking technology supporting up to 8 switches and 320 Gbps stack bandwidth
Runs Cisco IOS XE operating system with automation, security, and telemetry features
8 GB DRAM and 16 GB flash memory for modern network demands
License: Network Essentials (Layer 2 and Layer 3 support)
1U rack-mountable form factor with front-to-back airflow cooling
Technical Specifications
Model: Cisco C9300L-24P-4G-E
Series: Cisco Catalyst 9300L Series
License: Network Essentials
Ports & Uplinks
24 × 10/100/1000 Mbps PoE+ RJ-45 ports
4 × 1G SFP uplinks (fixed)
Stacking: StackWise-320, up to 8 switches per stack
Performance & Capacity
Switching Capacity (Standalone): 56 Gbps
Switching Capacity (Stacked): 376 Gbps
Forwarding Rate (Standalone): 41.66 Mpps
MAC Address Table: 32,000 entries
IPv4 Routes: 32,000 entries (24,000 direct + 8,000 indirect)
IPv6 Routes: 16,000 entries
VLANs Supported: Up to 4,094
QoS Entries: 5,120
ACL Entries: 5,120
Jumbo Frame Support: 9,198 bytes
Flexible NetFlow Entries: 64,000 flows
Hardware & Memory
DRAM: 8 GB
Flash Memory: 16 GB
CPU Architecture: x86 multicore with hardware encryption support
PoE & Power
Total PoE Budget: 505 W (default with PWR-C1-715WAC-P PSU)
Power Supply Type: Internal, field-replaceable
Power Redundancy: Optional second PSU can be added for redundancy or increased PoE budget
PoE Standards Supported: IEEE 802.3af and 802.3at
Layer 2 / Layer 3 & Features
Layer 2: VLANs, PVLANs, STP/RSTP/MSTP, QoS, 802.1X, port-security
Layer 3: Static routing, OSPF, EIGRP Stub, VRRP, Policy-Based Routing (PBR)
Automation / Management: Cisco DNA Center, NETCONF, RESTCONF, YANG, Model-Driven Telemetry
Security: MACsec-128, 802.1X authentication, DHCP snooping, Dynamic ARP Inspection, IP Source Guard, Control Plane Policing (CoPP), and TrustSec
Physical & Environmental
Dimensions (H × W × D): 1.73 × 17.5 × 16.1 in (4.4 × 44.5 × 40.9 cm)
Weight: Approximately 6.8 kg (14.99 lb)
MTBF: Approximately 346,940 hours
Operating Temperature: –5 °C to +45 °C (up to 5,000 ft)
Cooling: Front-to-back airflow
Benefits
High-performance access switch: Delivers reliable Gigabit access and PoE+ power for connected devices.
Energy-efficient design: Intelligent power management reduces operational costs.
Scalable architecture: Stack up to 8 switches with a combined capacity up to 376 Gbps.
Enhanced security: Protects the network edge with advanced encryption and authentication features.
Future-ready platform: Cisco IOS XE supports automation, telemetry, and SD-Access.
Ideal Use-Cases
Enterprise access layer deployments
Campus and branch office networks
High-density PoE+ environments (IP phones, APs, cameras, IoT)
Routed access or Layer 3 distribution layer setups
Smart building and modern office deployments
Important Notes
Uplinks are fixed at 4 × 1G SFP; for higher bandwidth (10G) choose the C9300L-24P-4X model.
The 505 W PoE budget may not power all ports at maximum 30 W simultaneously.
Network Essentials license includes most Layer 3 features; advanced protocols like BGP or MPLS require Network Advantage.
Stacking requires optional StackWise-320 cables or kits.
