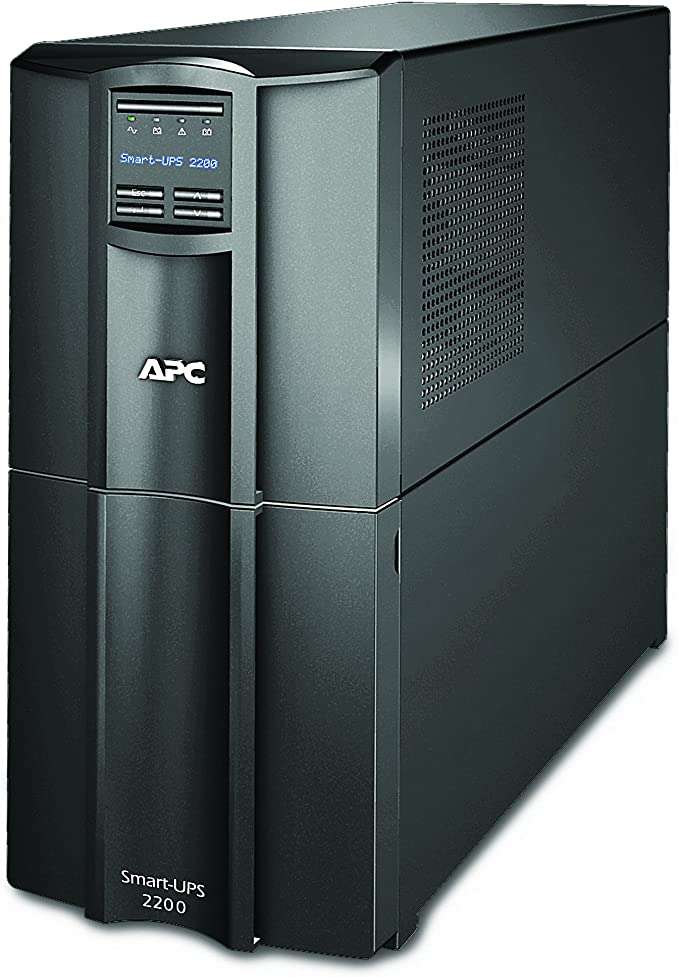

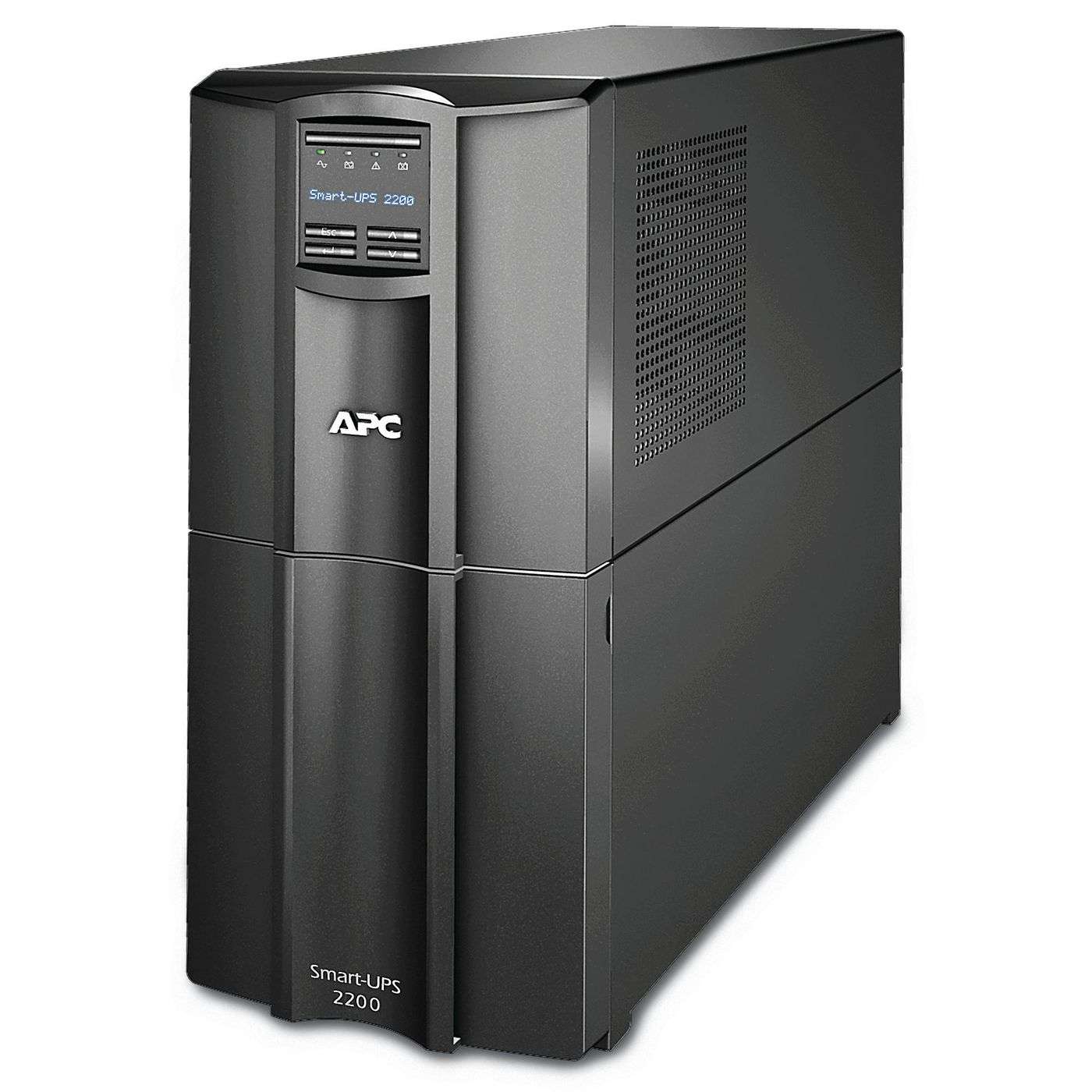

APC Smart-UPS 2200VA 2.2KVA LCD 230V SMT2200I
Keep your critical systems online with the APC Smart-UPS 2200VA 2.2KVA LCD 230V SMT2200I – the ultimate power protection solution for business servers, networking hardware, and sensitive IT equipment. With 2200VA of backup power and pure sine wave output, this UPS ensures stable, clean electricity even during outages and voltage fluctuations.
Specification for APC Smart-UPS 2200VA 2.2KVA LCD 230V SMT2200I
- Cold-start capableProvides temporary battery power when the utility power is out.
- Energy meterProvides actual kilowatt hours of usage for energy conscious users.
- Green modePatent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High online efficiencyReduces utlility costs, generates less heat.
- Intuitive LCD interfaceProvides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Predictive replace battery dateDynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Pure sine wave output on batterySimulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Sequenced network shutdown and rebootCustomize network shutdown and reboot sequence of connected servers and UPSs.
- Single switched outlet groupSingle outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- SmartSlotCustomize UPS capabilities with management cards.
- StruxureWare Data Center Expert compatibleEnables centralized management via StruxureWare Data Center Expert.
- Temperature-compensated battery chargingProlongs battery life by regulating the charge voltage according to battery temperature.
Smart-UPS Features & Benefits
Manageability
- Network manageableProvides remote power management of the UPS over the network.
- Disconnected battery notificationWarns when a battery is not available to provide backup power.
- Serial connectivityProvides management of the UPS via a serial port.
- USB connectivityProvides management of the UPS via a USB port (not available on all models).
- Audible alarmsActively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
- LED status indicatorsQuickly understand unit and power status with visual indicators.
Serviceability
- User-replaceable batteriesIncreases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Hot-swappable batteriesEnsures clean, uninterrupted power to protected equipment while batteries are being replaced
- Resettable circuit breakersEnables a quick recovery from overload events.
- Predictive failure notificationProvides early-warning fault analysis ensuring proactive component replacement.
- Battery failure notificationProvides early-warning fault analysis on batteries enabling timely preventive maintenance
Adaptability
- Adjustable voltage-transfer pointsMaximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Adjustable voltage sensitivityProvides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Safety
- Safety-agency approvedEnsures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Marketing Features
- Smarter productivity with ability to tailor to your specific application needsIntuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.
- Peace of mind that comes with full equipment compatibility and reliability of a leaderProvides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
- Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery managementPatented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.
- Avoids costly power problems by keeping your IT equipment and data safe and availableNetwork grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems
Print Technical Specification
Output
- Output power capacity1.98 KWatts / 2.2 kVA
- Max Configurable Power (Watts)1.98 KWatts / 2.2 kVA
- Nominal Output Voltage230V
- Output Voltage NoteConfigurable for 220 : 230 or 240 nominal output voltage
- Output Voltage DistortionLess than 5% at full load
- Output Frequency (sync to mains)47 – 53 Hz for 50 Hz nominal, 57 – 63 Hz for 60 Hz nominal
- TopologyLine Interactive
- Waveform typeSine wave
- Output Connections(1) IEC 320 C19 (Battery Backup)(8) IEC 320 C13 (Battery Backup)(2) IEC Jumpers (Battery Backup)
- Transfer Time2ms typical
Input
- Nominal Input Voltage: 230V
- Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)
- Input Connections: IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A
- Input voltage range for main operations: 160 – 286V
- Input voltage adjustable range for mains operation: 151 – 302V
- Number of Power Cords: 1
- Other Input Voltages: 220, 240
Batteries & Runtime
- Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
- Typical recharge time: 3hour(s)
- Replacement Battery: RBC55
- Expected Battery Life (years): 3 – 5
- RBC Quantity: 1
- Efficiency: View Efficiency Graph
Communications & Management
- Interface Port(s): SmartSlot
- Control panel: Multi-function LCD status and control console
- Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
- Emergency Power Off (EPO): Yes
- Available SmartSlot™ Interface Quantity: 1
Surge Protection and Filtering
- Surge energy rating365Joules
- FilteringFull time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
- Maximum Height435mm , 43.5CM
- Maximum Width197mm , 19.7CM
- Maximum Depth544mm , 54.4CM
- Net Weight48.8KG
- Shipping weight61.9KG
- Shipping Height699mm , 69.9CM
- Shipping Width381mm , 38.1CM
- Shipping Depth762mm , 76.2CM
- ColorBlack
- Units per Pallet9.0
Environmental
- Operating Temperature0 – 40 °C
- Operating Relative Humidity0 – 95 %
- Operating Elevation0-3000meters
- Storage Temperature-15 – 45 °C
- Storage Relative Humidity0 – 95 %
- Storage Elevation0-15000meters
- Audible noise at 1 meter from surface of unit45.0dBA
- Online thermal dissipation275.0BTU/hr
Conformance
- ApprovalsCE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
- Standard warranty3 years repair or replace (excluding battery) and 2 year for battery, optional on-site warranties available, optional extended warranties available
Sustainable Offer Status
- RoHSCompliant
- REACHREACH: Contains No SVHCs
- PEPAvailable in Documentation tab
- EOLIAvailable in Documentation tab
