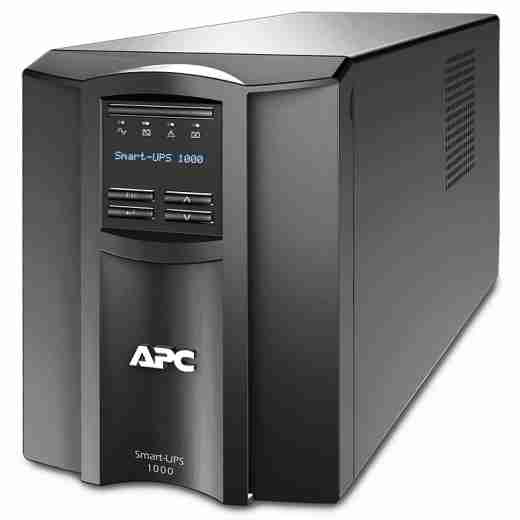

APC Smart-UPS 1000VA (SMT1000IC)
Protect your critical equipment with the APC Smart-UPS 1000VA (SMT1000IC), featuring pure sine wave output, SmartConnect remote monitoring, LCD display, and reliable 1kVA backup power
- Cold-start capableProvides temporary battery power when the utility power is out.
- Energy meterProvides actual kilowatt hours of usage for energy conscious users.
- Green modePatent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High online efficiencyReduces utlility costs, generates less heat.
- Intuitive LCD interfaceProvides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Predictive replace battery dateDynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Pure sine wave output on batterySimulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Single switched outlet groupSingle outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- SmartSlotCustomize UPS capabilities with management cards.
- Temperature-compensated battery chargingProlongs battery life by regulating the charge voltage according to battery temperature.
Smart-UPS Features & Benefits
Manageability
- Network manageableProvides remote power management of the UPS over the network.
- Disconnected battery notificationWarns when a battery is not available to provide backup power.
- Serial connectivityProvides management of the UPS via a serial port.
- USB connectivityProvides management of the UPS via a USB port (not available on all models).
- Audible alarmsActively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
- LED status indicatorsQuickly understand unit and power status with visual indicators.
Serviceability
- User-replaceable batteriesIncreases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Hot-swappable batteriesEnsures clean, uninterrupted power to protected equipment while batteries are being replaced
- Resettable circuit breakersEnables a quick recovery from overload events.
- Predictive failure notificationProvides early-warning fault analysis ensuring proactive component replacement.
- Battery failure notificationProvides early-warning fault analysis on batteries enabling timely preventive maintenance
Adaptability
- Adjustable voltage-transfer pointsMaximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Adjustable voltage sensitivityProvides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Safety
- Safety-agency approvedEnsures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Marketing Features
- Smarter productivity with ability to tailor to your specific application needsIntuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.
- Peace of mind that comes with full equipment compatibility and reliability of a leaderProvides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
- Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery managementPatented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.
- Avoids costly power problems by keeping your IT equipment and data safe and availableNetwork grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems
- Save time with easy and convenient remote accessibilityNetwork manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.
Availability
- Disconnected battery notificationWarns when a battery is not available to provide backup power.
- Automatic restart of loads after UPS shutdownAutomatically starts up the connected equipment upon the return of utility power.
- Automatic self-testPeriodic battery self-test ensures early detection of a battery that needs to be replaced.
- Boost and Trim Automatic Voltage Regulation (AVR)Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
- Intelligent battery managementMaximizes battery performance, life, and reliability through intelligent, precision charging.
- Power conditioningProtects connected loads from surges, spikes, lightning, and other power disturbances.
- Temperature-compensated battery chargingProlongs battery life by regulating the charge voltage according to battery temperature.
Output
- Output power capacity
700Watts / 1.0 kVA
- Max Configurable Power (Watts)
700Watts / 1.0 kVA
- Nominal Output Voltage
230V
- Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
- Output Voltage Distortion
Less than 5% at full load
- Output Frequency (sync to mains)
47 – 53 Hz for 50 Hz nominal, 57 – 63 Hz for 60 Hz nominal
- Other Output Voltages
220, 240
- Topology
Line Interactive
- Waveform type
Sine wave
- Output Connections(8) IEC 320 C13 (Battery Backup)(2) IEC Jumpers (Battery Backup)
Input
- Nominal Input Voltage
230V
- Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
- Input Connections
IEC-320 C14
- Input voltage range for main operations
160 – 286V
- Input voltage adjustable range for mains operation
151 – 302V
- Other Input Voltages
220, 240
Batteries & Runtime
- Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
- Typical recharge time
3hour(s)
- Replacement Battery
- Expected Battery Life (years)
3 – 5
- RBC Quantity
1
- Runtime
- Efficiency
Communications & Management
- Interface Port(s)
RJ-45 Serial , SmartSlot , USB
- Control panel
Multi-function LCD status and control console
- Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- Emergency Power Off (EPO)
Optional
- Available SmartSlot™ Interface Quantity
1
Surge Protection and Filtering
- Surge energy rating
459Joules
- Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
- Maximum Height
219mm , 21.9CM
- Maximum Width
171mm , 17.1CM
- Maximum Depth
439mm , 43.9CM
- Net Weight
18.86KG
- Shipping weight
22.77KG
- Shipping Height
376mm , 37.6CM
- Shipping Width
328mm , 32.8CM
- Shipping Depth
595mm , 59.5CM
- Color
Black
- Units per Pallet
12.0
Environmental
- Operating Temperature
0 – 40 °C
- Operating Relative Humidity
0 – 95 %
- Operating Elevation
0-3000meters
- Storage Temperature
-15 – 45 °C
- Storage Relative Humidity
0 – 95 %
- Storage Elevation
0-15000meters
- Audible noise at 1 meter from surface of unit
41.0dBA
- Online thermal dissipation
100.0BTU/hr
Conformance
- Approvals
CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE
- Standard warranty
3 years repair or replace (excluding battery) and 2 year for battery.
