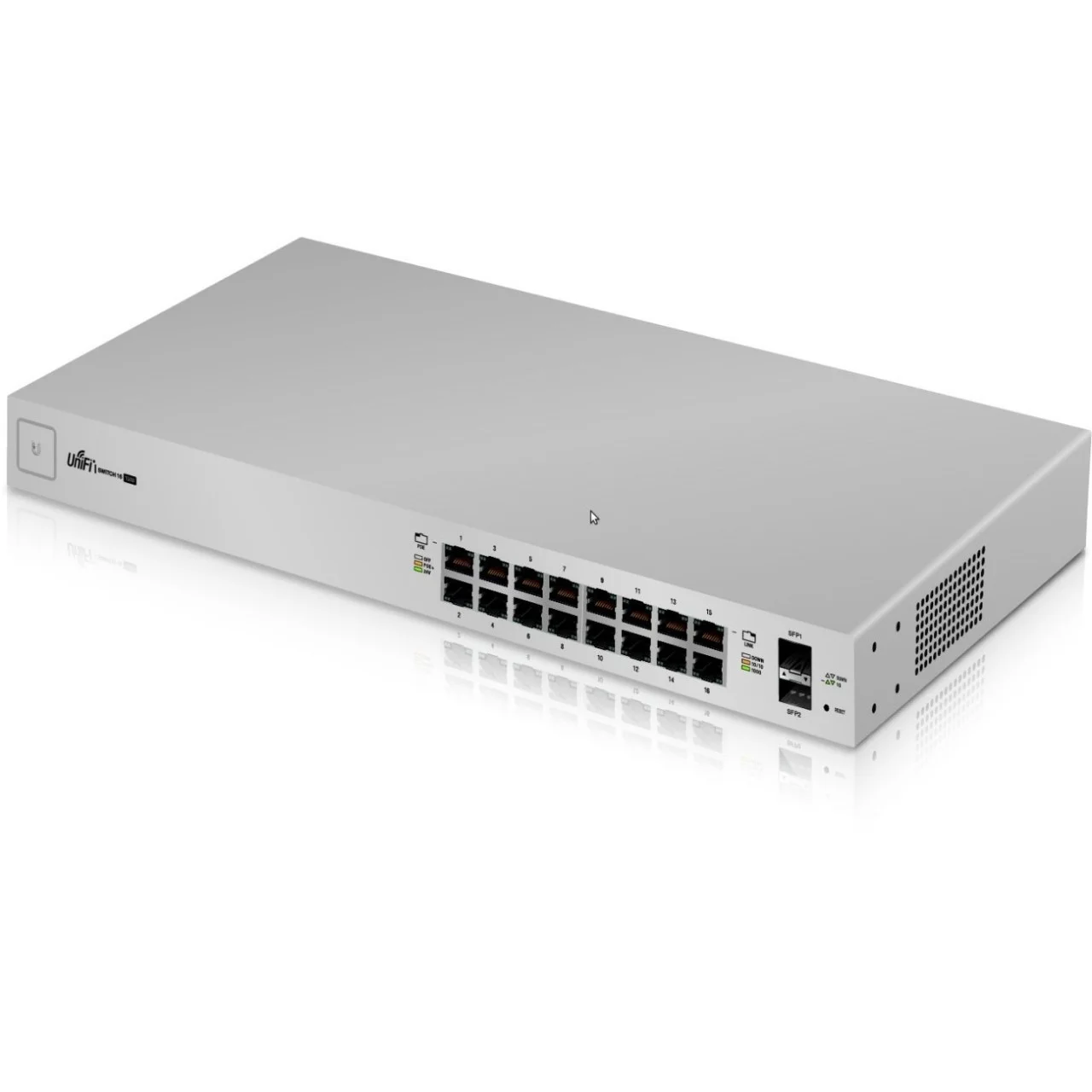

US-16-150W Ubiquiti UniFi Switch 16 ports 150W
Buy US-16-150W Ubiquiti UniFi Switch 16 ports 150W. Expand and power your network with the UniFi Switch US-16-150W, part of the Ubiquiti Networks UniFi Enterprise System. The US-16-150W is a fully managed PoE+ Gigabit switch, delivering robust performance and intelligent switching for enterprise networks. The US-16-150W offers the flexibility of (16) Gigabit RJ45 ports with auto-sensing PoE+ or 24V Passive PoE to power your UniFi access points and other PoE devices.
The Ubiquiti UniFi Switch US-16-150W is a fully managed Layer 2 Gigabit switch designed for enterprise, SMB, surveillance, and wireless networking deployments. Featuring 16 Gigabit RJ45 Ethernet ports and 2 Gigabit SFP uplink ports, it provides high-speed connectivity while delivering both IEEE 802.3af/at PoE+ and 24V Passive PoE to compatible devices.
With a 150W total PoE budget, the US-16-150W can power UniFi Access Points, IP cameras, VoIP phones, and other PoE-enabled devices through a single Ethernet cable. Integrated with the UniFi Network Controller, it offers centralized management, advanced VLAN configuration, traffic monitoring, port isolation, link aggregation, QoS, and comprehensive security features, making it ideal for scalable business and enterprise networks.
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | Ubiquiti UniFi Switch US-16-150W |
| Product Type | Layer 2 Managed Gigabit PoE+ Switch |
| Ethernet Ports | 16 × 10/100/1000 Mbps RJ45 Gigabit Ports |
| Uplink Ports | 2 × 1Gbps SFP Ports |
| PoE Standards | IEEE 802.3af, IEEE 802.3at PoE+, 24V Passive PoE |
| Maximum PoE Output | Up to 34.2W per PoE+ port |
| Passive PoE Output | Up to 17W per port |
| Total PoE Budget | 150W |
| Switching Capacity | 36 Gbps |
| Non-Blocking Throughput | 18 Gbps |
| Forwarding Rate | 26.78 Mpps |
| MAC Address Table | 16,384 Entries |
| Maximum VLANs | 255 |
| Link Aggregation | Up to 6 Groups |
| Management | UniFi Network Controller |
| Network Features | VLAN, QoS, Port Isolation, Storm Control, 802.1X Authentication |
| Flow Control | IEEE 802.3x |
| LEDs | PoE, Speed, Link/Activity |
| Mounting | Rack Mount (Brackets Included) |
| Power Input | 100–240V AC, 50/60Hz |
| Maximum Power Consumption | 150W (Including PoE) |
| Operating Temperature | -5°C to 40°C |
| Operating Humidity | 5–95% Non-condensing |
| Dimensions | 443 × 43 × 221 mm |
| Weight | 2.89 kg (with rack brackets) |
| Certifications | CE, FCC, IC |
Key Features
- 16 Gigabit RJ45 Ethernet ports
- 2 Gigabit SFP fiber uplink ports
- 150W total PoE power budget
- Supports IEEE 802.3af/at PoE+ and 24V Passive PoE
- Up to 34.2W PoE+ output per port
- Centralized management through UniFi Network Controller
- Advanced Layer 2 switching with VLAN, QoS, and Link Aggregation
- 16K MAC address table for enterprise performance
- Rack-mountable metal chassis
- Ideal for UniFi Access Points, IP cameras, VoIP phones, and enterprise LANs
