TP-Link AX1800 Wall Plate WiFi 6 Access Point – EAP615-WALL
The TP-Link EAP615-WALL is designed to provide seamless, high-speed WiFi 6 connectivity in structured environments like hotels, schools, offices, and multi-dwelling units. Offering combined speeds of up to 1.8Gbps (574 Mbps on 2.4GHz + 1201 Mbps on 5GHz), it ensures smooth internet for multiple devices simultaneously.
This wall plate AP comes with 4 Gigabit Ethernet ports, including a PoE out port to power devices such as IP phones. Its wall-mounted design makes installation neat and professional while maintaining reliable performance.

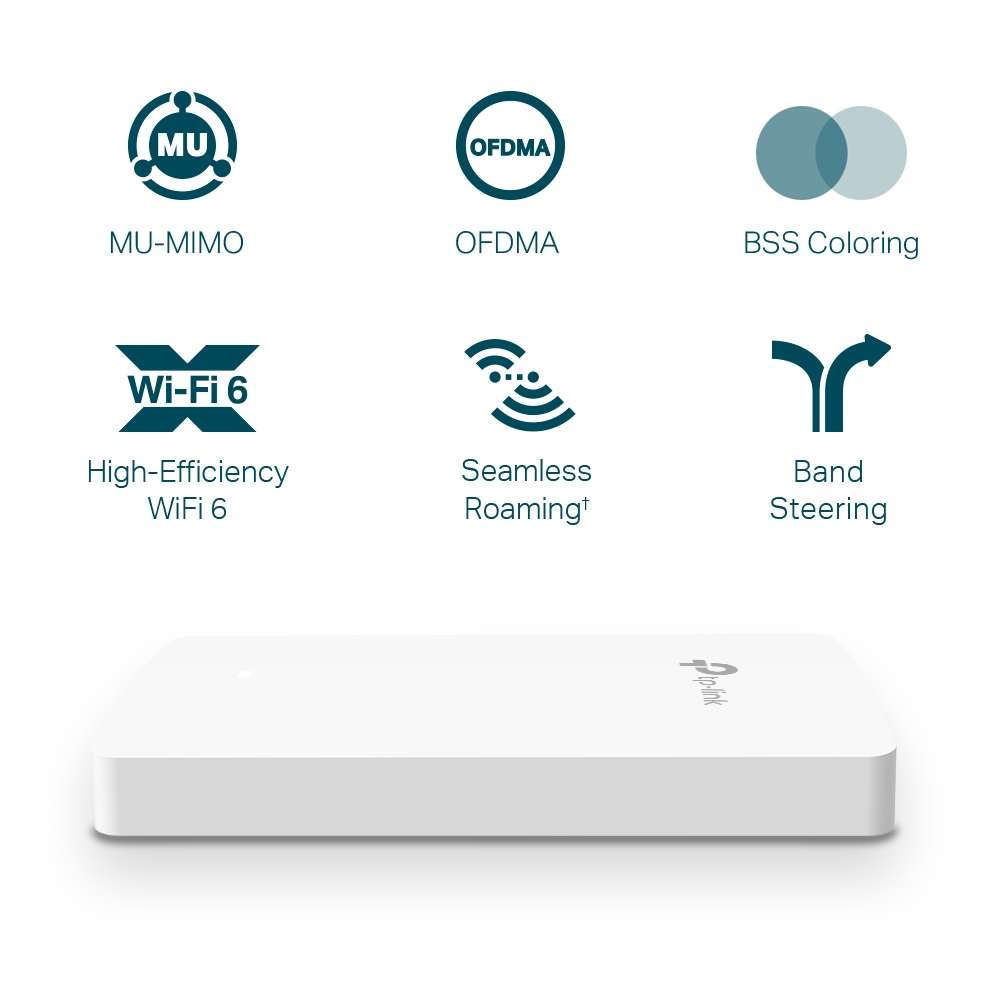

Equipped with WiFi 6 technologies like OFDMA, MU-MIMO, and Beamforming, the EAP615-WALL handles dense environments efficiently. Integrated into the Omada SDN ecosystem, it supports cloud and centralized management, giving administrators full network control.
Overall, the TP-Link AX1800 Wall Plate WiFi 6 Access Point – EAP615-WALL is a versatile and reliable wireless access point that provides high-speed and secure WiFi coverage for small to medium-sized businesses and similar venues.
Detailed specifications TP-Link AX1800 Wall Plate WiFi 6 Access Point – EAP615-WALL
TP-Link EAP615-WALL Specifications
| Category | Details |
|---|---|
| Wi-Fi Standard | IEEE 802.11ax / ac / n / g / b / a (WiFi 6) |
| Frequency Bands | Dual-Band: 2.4 GHz + 5 GHz |
| Max Data Rates | 2.4 GHz: up to 574 Mbps 5 GHz: up to 1201 Mbps Total: ~1775 Mbps |
| Wi-Fi Features | MU-MIMO, OFDMA, BSS Coloring, Beamforming, Band Steering, Airtime Fairness, Load Balancing, Multiple SSIDs (16 total, up to 8 per band) |
| Security | WPA/WPA2/WPA3 (Personal & Enterprise), 802.1X, Captive Portal, MAC Filtering, VLAN Support, Rogue AP Detection, Client Isolation |
| Interfaces / Ports | 4 × Gigabit Ethernet ports: 1 uplink + 3 downlink (1 downlink supports PoE pass-through) |
| PoE Support | 802.3af/at PoE input PoE pass-through requires 802.3at |
| Max Power Consumption | EU model: 10 W (PoE in, PoE out off) US model: 11.5 W (PoE in, PoE out off) |
| Antennae | 2 × dual-band antennas 2.4 GHz: 2 × 3 dBi 5 GHz: 2 × 4 dBi |
| Transmission Power | CE: < 20 dBm (2.4 GHz), < 23 dBm (5 GHz) FCC: < 21 dBm (both bands) |
| Management | Omada SDN Controller (hardware/software/cloud), Omada App, HTTP/HTTPS, SNMP v1/v2c/v3, SSH, Syslog |
| Physical Security | Lock slot, Reset button |
| LED Control | LED on/off control available |
| Dimensions | 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in) |
| Weight | ~195 g (0.43 lb) |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | −40 °C to 70 °C |
| Humidity | Operating: 10–90% non-condensing Storage: 5–90% non-condensing |
| Certifications | CE, FCC, RoHS |
