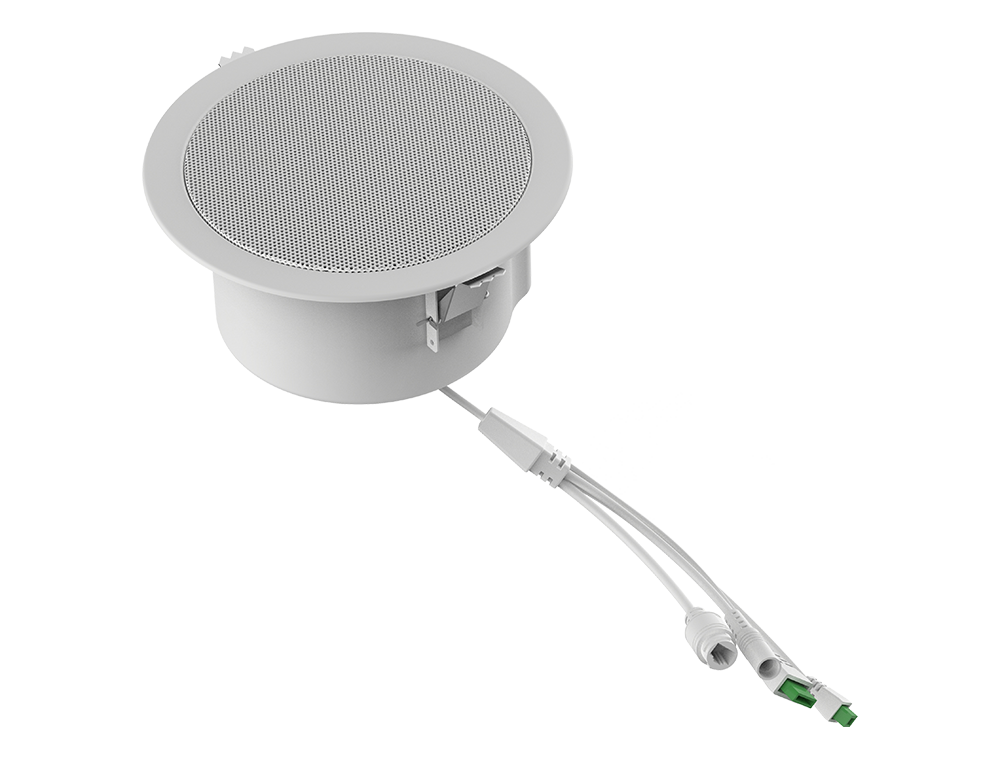

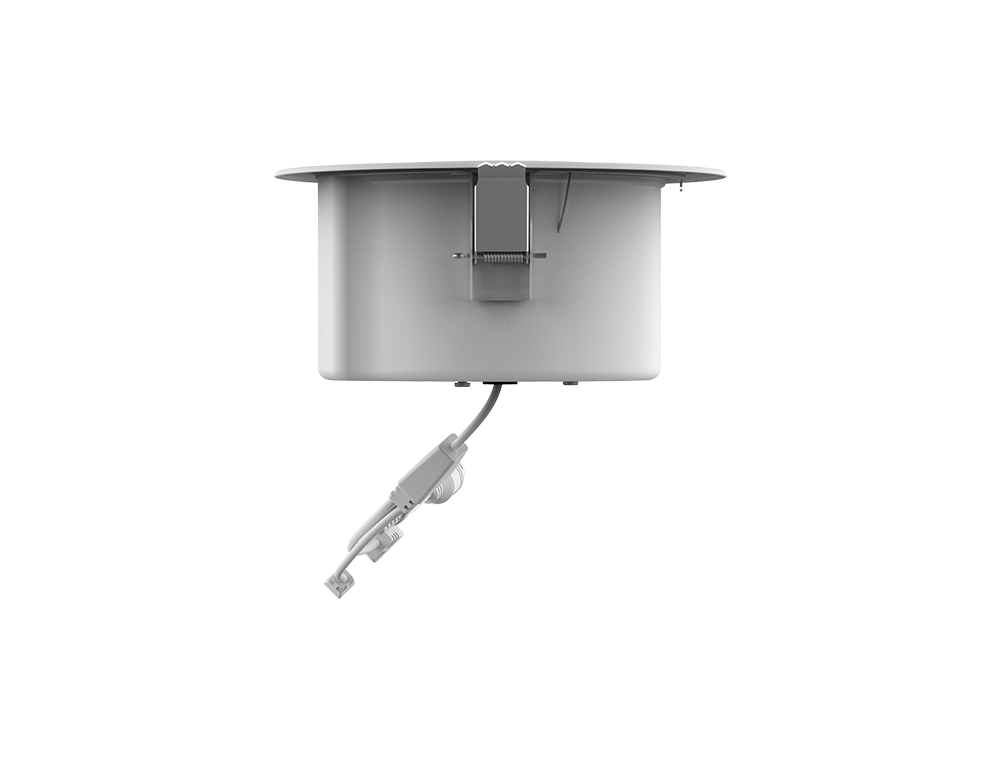

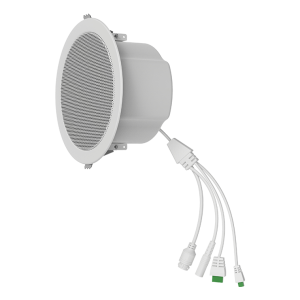

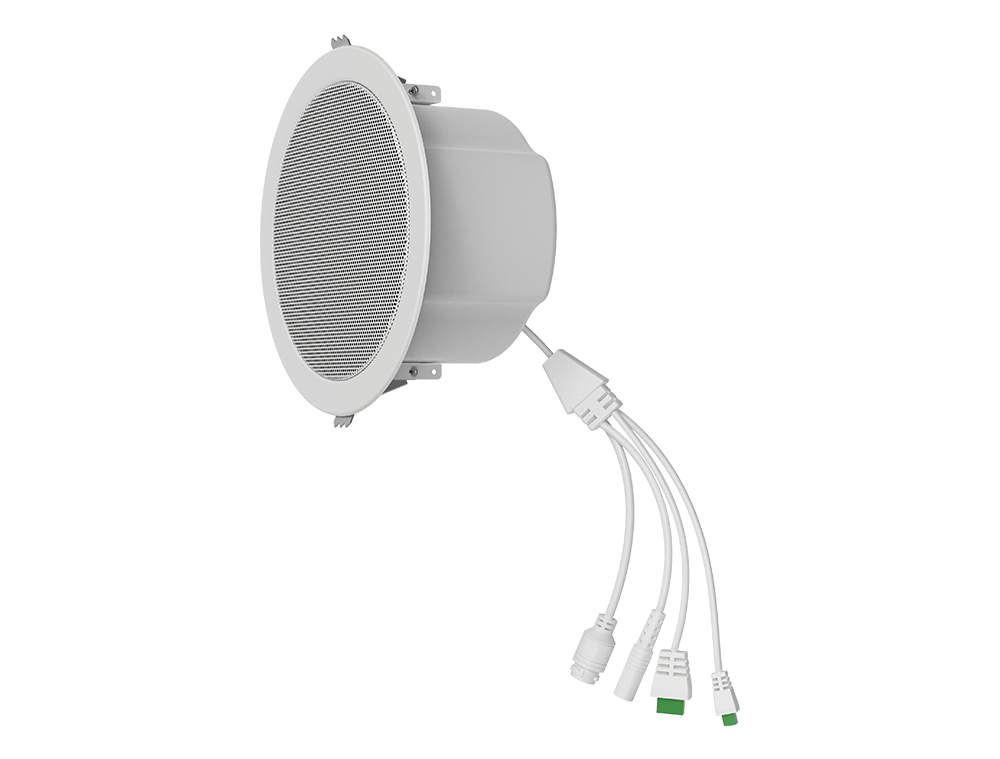

Fanvil A201 Ceiling Speaker
The Fanvil A201 Ceiling Speaker is an advanced network-based audio device built for modern communication and broadcasting systems. It combines a high-quality 10W ceiling speaker with an integrated microphone, allowing both audio playback and two-way communication.
Designed for enterprise environments, the A201 supports SIP protocol integration, enabling seamless connection with IP PBX systems, VoIP platforms, and unified communication solutions. It can also be integrated into security systems, access control, fire alarm systems, and broadcast management platforms.
With HD voice support and wideband codecs such as G.722 and Opus, the A201 delivers clear and natural audio reproduction for announcements and live communication. It also supports scheduled broadcasting, emergency alerts, and multicast audio distribution, making it suitable for large-scale installations.
The device is powered via PoE or PoE+ / DC power, ensuring flexible installation with minimal wiring complexity. Its ceiling-mounted design allows for discreet integration into interior spaces while providing wide sound coverage.
Key Features
- SIP-based IP ceiling speaker system
- 10W high-quality built-in speaker
- Built-in omnidirectional microphone for intercom
- Supports HD audio (G.722, Opus codecs)
- Two-way communication (speaker + mic)
- PoE / PoE+ power support
- Scheduled and emergency audio broadcasting
- Multicast audio distribution support
- Integration with IP PBX and security systems
- Ceiling-mounted discreet design
- Suitable for large indoor coverage areas
Technical Specifications
- Model: Fanvil A201
- Type: IP Ceiling Speaker / Audio Terminal
- Speaker Power: 10W (PoE+ / DC)
- Power Supply: PoE / PoE+ / DC 12–24V
- Microphone: Built-in omnidirectional microphone
- Audio Codecs: G.711, G.722, Opus, G.729
- Frequency Response: 250Hz – 20kHz
- Max SPL: 100dB
- Sensitivity: ~90dB ±3dB
- Network: RJ45 Ethernet (10/100 Mbps)
- Protocols: SIP, HTTP, RTP, ONVIF support
- Storage: 24MB internal audio storage
- Interfaces: Short-circuit input/output support
- Installation: Ceiling-mounted
Ideal For
- Office building paging systems
- Schools and universities
- Hospitals and clinics
- Shopping malls and retail stores
- Public announcement systems
- Security and emergency broadcast systems
- Smart building communication systems
