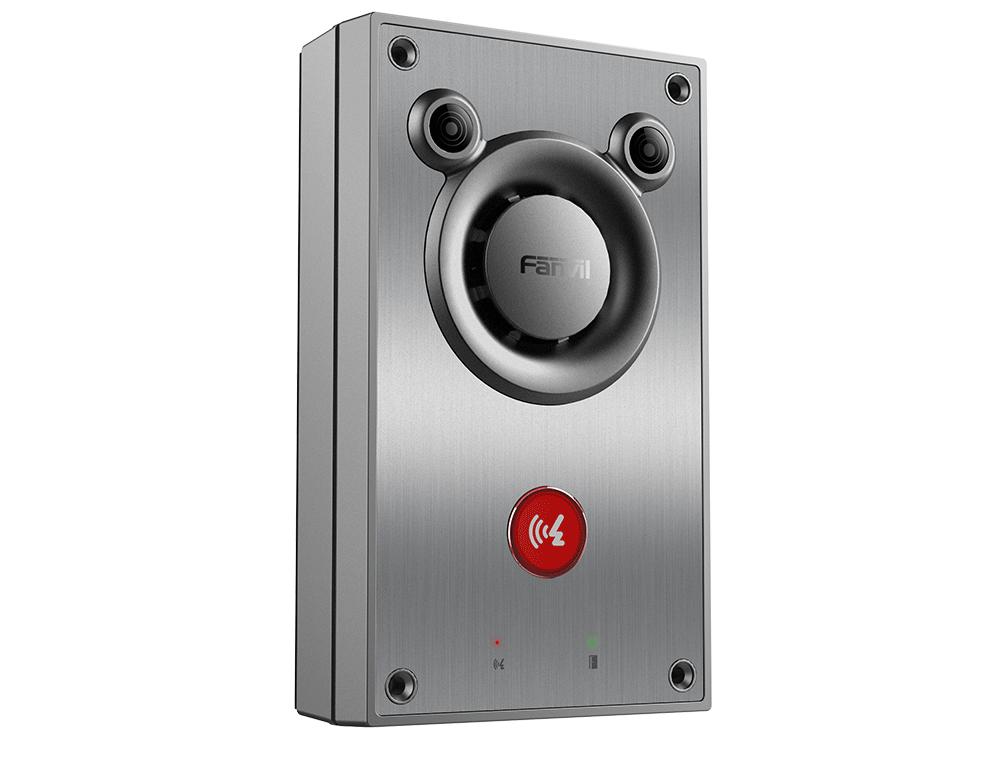

Fanvil A12 Audio Intercom
The Fanvil A12 Audio Intercom is a high-performance IP audio intercom built for demanding environments such as building entrances, offices, factories, and security checkpoints.
It delivers powerful and clear communication through a 10W built-in speaker and advanced turbo sound chamber design, ensuring loud and intelligible audio even in noisy outdoor settings.
Equipped with dual-microphone noise reduction and advanced voice enhancement algorithms, the A12 ensures crystal-clear voice capture while minimizing background noise interference.
Designed for durability, the device features a stainless steel front panel combined with aluminum alloy housing, offering excellent resistance to corrosion, vandalism, and harsh weather conditions. With IP66 waterproofing and IK10 impact resistance, it is suitable for outdoor and industrial deployment.
The A12 supports SIP protocol integration, allowing seamless connection with IP PBX systems, VoIP platforms, and access control systems. It also supports PoE (Power over Ethernet) for simplified installation with a single cable for both power and data.
Additional features such as Wiegand interface, relay control, SD card support, and alarm output make it a flexible solution for modern access control and communication systems.
Key Features
- SIP-based IP audio intercom system
- 10W high-power speaker with loud broadcast output
- Dual-microphone noise cancellation technology
- Advanced voice enhancement algorithms
- IP66 waterproof and dustproof rating
- IK10 vandal-resistant metal housing
- PoE support for easy installation
- Supports access control integration (Wiegand, relay I/O)
- Built-in SD card support for recording and playback
- Compatible with major SIP platforms (3CX, Asterisk, etc.)
- Wall-mounted outdoor-ready design
Technical Specifications
- Model: Fanvil A12 Audio Intercom
- Type: SIP Audio Intercom
- Audio Output: 10W speaker, high-volume broadcast
- Microphone: Dual omnidirectional noise-cancelling mics
- Audio Processing: AEC, ANR, AGC, AVC
- Network Protocol: SIP v2
- Power Supply: PoE / DC 12–24V
- Interfaces: RJ45 Ethernet, Wiegand, relay I/O, USB, SD card slot
- Protection Rating: IP66 (water/dust resistant)
- Impact Protection: IK10 vandal resistant
- Operating Environment: Indoor / outdoor harsh environments
- Mounting: Wall-mounted
- Material: Stainless steel + aluminum alloy body
Ideal For
- Building entrances and gate access control
- Commercial and office intercom systems
- Industrial and factory communication points
- Security and surveillance integration
- Residential apartments and estates
- Reception and visitor management systems
