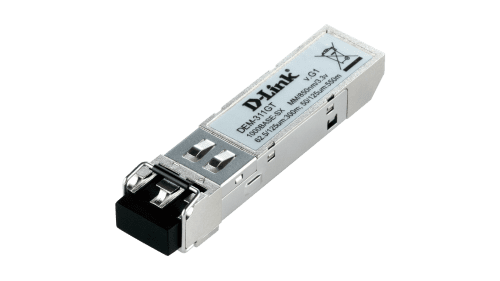

D-Link DEM-311GT 1000BASE-SX Mini-GBIC Gigabit Ethernet Module

D-Link DEM-311GT 1000BASE-SX Mini-GBIC Gigabit Ethernet Module

The DEM–311GT is hot pluggable and is backed by a standard 2-year product warranty and free technical support. D-Link’s new line of Gigabit Interface Converters (GBICs) and Small Form-Factor Pluggables (SFPs) transceivers represent an industry leading combination of performance and affordability. D-Link’s new Gigabit transceivers are available in two form-factors: standard (GBIC) or (SFP)/mini-GBIC.

• 850nm Multi-Mode Tranceiver
• 550m Max Distance, Duplex LC Connector

D-Link’s new line of Gigabit Interface Converters (GBICs) and Small Form-Factor Pluggables (SFPs) transceivers represent an industry leading combination of performance and affordability. D-Link’s new Gigabit transceivers are available in two form-factors: standard (GBIC) or (SFP)/mini-GBIC.

The DEM-311GT is a high performance 850nm multimode SFP/mini-GBIC transceiver. Supporting full duplex, Gigabit speeds on multimode fiber for distances of up to 220m/550m on 62.5µm/50µm fiber respectively. The unit features a metal housing to reduce EMI and to increase durability. The DEM-311GT is hot pluggable and is backed by a standard 2-year product warranty and free technical support.

Product/Performance Specifications

Optical Receiver Sensitivity

• -18dBm (max)

Interface Options

Connector Type

• LC

Operational Ranges

Support Voltage

• 3.1-3.5V

Max Voltage

• 6.0V

Max Current

• 300mA

Safety Certifications and Environmental Information

Class 1 Laser

• EN 60825-1

FDA 21

• 1040.10 & 1040.11

Physical Specifications

Dimensions (WxDxH)

• 1.19 x .47 x 2.25in (3.02x 1.19 x 5.71cm)

Warranty and Support Information

Warranty

• 2 Year Warranty

Support

• Free Technical Support

Ordering Information

Part Number            Description

DEM-310GT            1000BASE-LX SFP Up to 10km
DEM-311GT             1000BASE-SX SFP Up to 220/550m
