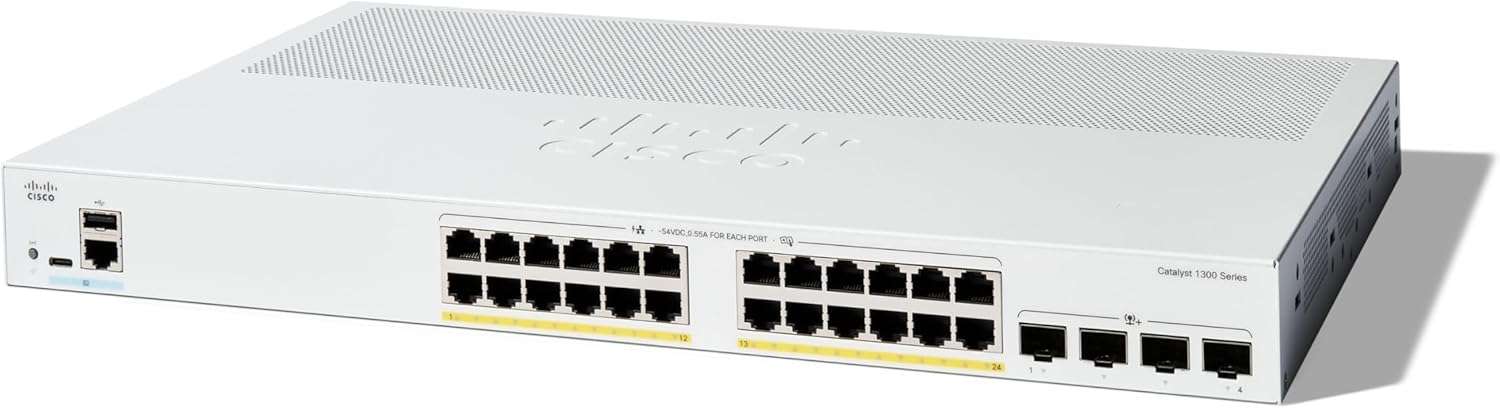

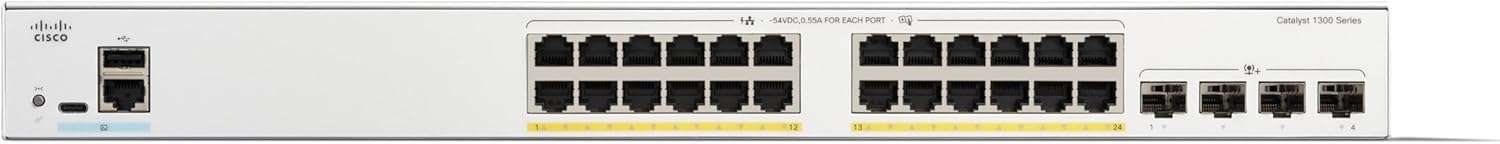

Cisco Catalyst 1300 24-Port PoE Switch 4x10G SFP+
The Cisco Catalyst 1300 24-Port PoE Switch 4x10G SFP+ is an advanced enterprise networking device designed for organizations that require secure, high-speed connectivity with built-in flexibility. It powers IP phones, cameras, and access points through PoE+ while offering 10G uplinks for future-proof performance. In addition, it ensures silent operation in office or branch environments, making it ideal for professional use.
The Cisco Catalyst 1300 C1300-24P-4X is a compact, high-performance Layer 2/3 switch designed for small to medium-sized enterprise networks. With 24 Gigabit Ethernet ports supporting PoE, it powers IP phones, access points, and cameras directly through the network cable. The switch also features 4x10G SFP+ uplinks for high-speed aggregation and seamless integration with core networks.
Built for reliability and ease of management, the Catalyst 1300 supports Cisco IOS software, advanced security features, QoS, VLANs, and network segmentation. Its robust PoE capabilities ensure connected devices operate efficiently without additional power adapters. The compact design is ideal for wiring closets, small offices, and campus edge deployments.
Specifications & Technical Details:
| Feature | Description |
|---|---|
| Model | Cisco Catalyst 1300 C1300-24P-4X |
| Switch Type | Layer 2/3 Ethernet Switch |
| Ports | 24 x 10/100/1000 GE PoE Ports |
| Uplink Ports | 4 x 10G SFP+ |
| PoE Standard | IEEE 802.3af/at (PoE/PoE+) |
| PoE Budget | Up to 370 W (varies by model/configuration) |
| Forwarding Bandwidth | 128 Gbps |
| Forwarding Rate | 95.2 Mpps |
| VLANs | Supports up to 256 VLANs |
| QoS | Yes, Layer 2/3 QoS |
| Security Features | Access Control Lists (ACLs), 802.1X, DHCP Snooping, Port Security |
| Management | Cisco IOS, Web GUI, CLI, SNMP |
| Power Supply | Internal, 100–240V AC |
| Fan/Noise | Low-noise fan (suitable for office deployment) |

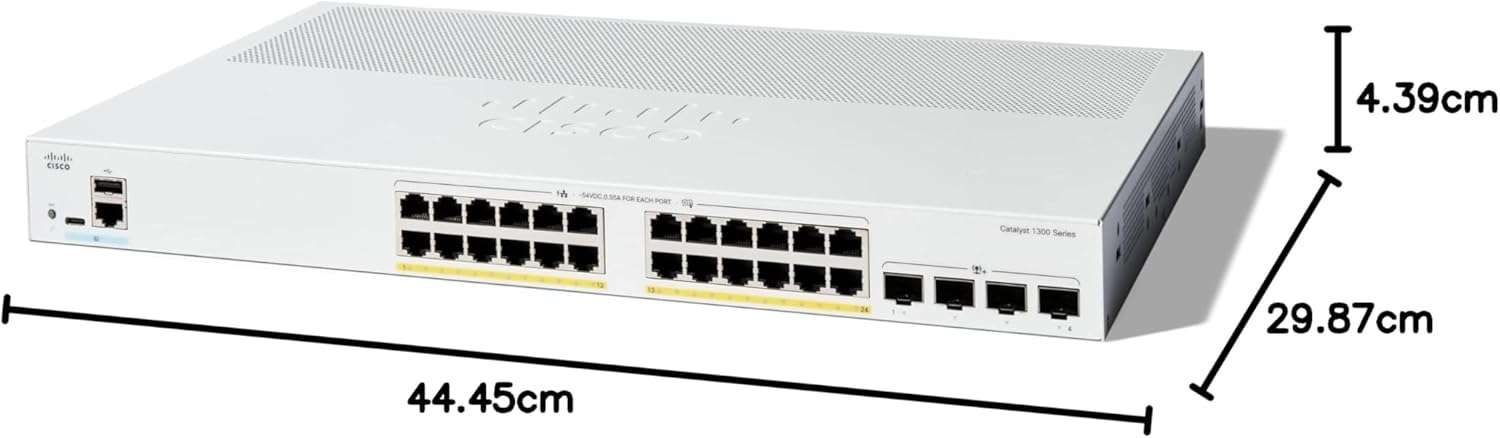

| Dimensions | 44.5 x 25 x 4.4 cm (approx.) |
| Weight | 3.5 kg (approx.) |
| Warranty | Limited Cisco warranty (check vendor) |
Applications
Enterprise and campus access networks
Small/medium business office deployment
Powering PoE devices like IP phones, cameras, and Wi-Fi APs
High-speed uplinks to core or aggregation switches
Network segmentation and secure VLAN deployments
Technical Specifications
Brand: Cisco Catalyst 1300 Series
Model: Cisco C1300-24P-4X Switch
Device Type: Managed PoE+ Switch
Form Factor: Rack-mountable
Ports: 24 × 10/100/1000 PoE+; 4 × 10G SFP+; 1 × USB-C; 1 × RJ-45 console
Data Transfer Rate: Up to 10 Gbps (uplinks)
Protocols: Gigabit Ethernet
PoE: Supported (PoE+)
MAC Table Size: 16,000 entries
Jumbo Frames: Up to 9,000 bytes
Processor: ARM architecture
RAM: 1 GB DDR4 SDRAM
Flash Memory: 512 MB
Power Supply: Internal PSU, AC 100–240V, 50–60 Hz
MTBF: 698,220 hours
Warranty: To be confirmed
Why Choose This Switch?
Firstly, it combines high-density Gigabit PoE+ access with enterprise-level 10G uplinks. Secondly, it offers reliable long-term performance supported by advanced Cisco management and security tools. Furthermore, its rack-mountable and fanless design makes it suitable for environments where both silence and efficiency matter. As a result, the Cisco Catalyst 1300 24-port PoE+ switch with 10G uplinks is a future-ready investment for professional networks.
