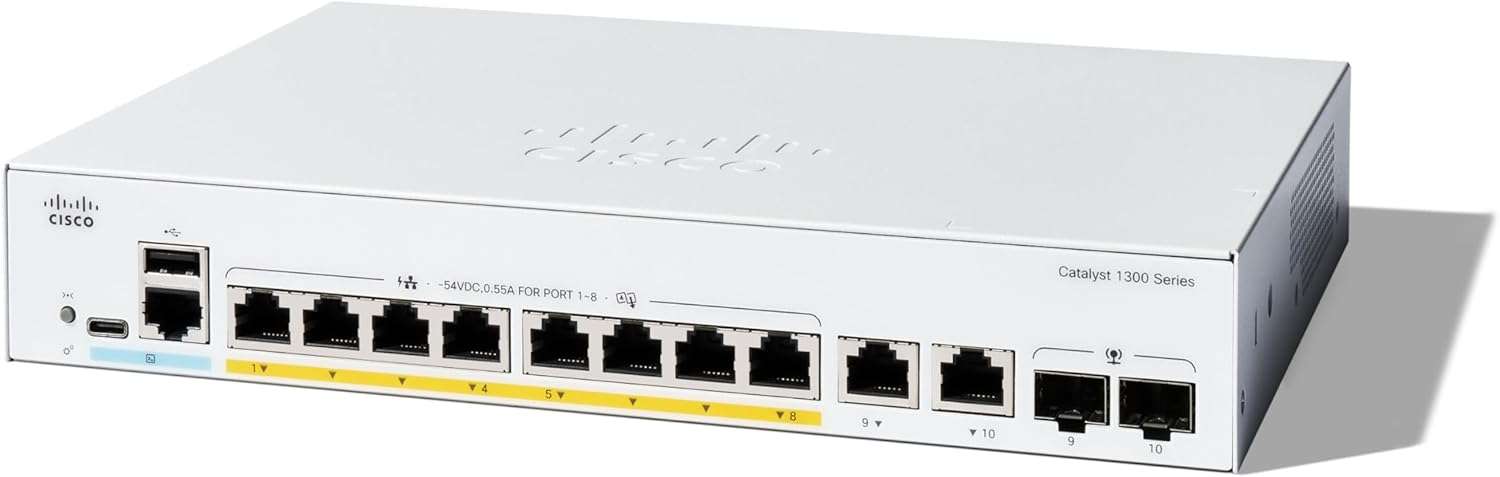

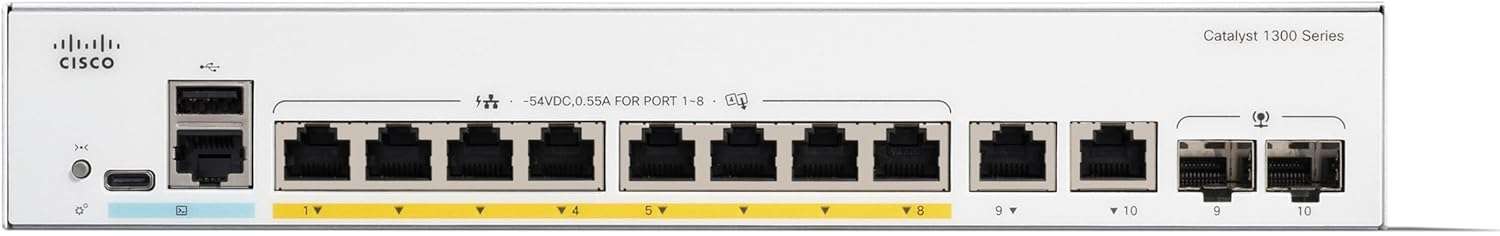

Cisco Catalyst C1300-8P-E-2G 8-Port PoE+ Managed Switch
The Cisco Catalyst C1300-8P-E-2G 8-Port PoE+ Managed Switch is a compact, high-performance Layer 2/3 managed switch designed for small office or branch deployments. With 8 Gigabit Ethernet PoE+ ports, it powers devices such as IP phones, access points, and security cameras directly through the network cable, eliminating the need for separate power adapters.
It features 2 Gigabit SFP uplinks for high-speed network connectivity and easy integration with existing infrastructure. The switch supports advanced Layer 2/3 features, including VLANs, QoS, ACLs, and security protocols, ensuring optimal network segmentation, performance, and protection.
Designed for reliability, energy efficiency, and ease of management, the Catalyst C1300-8P-E-2G provides seamless network expansion and enterprise-grade functionality in a compact form factor suitable for wiring closets and small office environments.
Specifications & Technical Details
| Feature | Description |
|---|---|
| Model | Cisco Catalyst C1300-8P-E-2G |
| Switch Type | Layer 2/3 Managed PoE+ Switch |
| Ports | 8 x 10/100/1000 Mbps Gigabit Ethernet PoE+ |
| Uplink Ports | 2 x 1G SFP |
| PoE Standard | IEEE 802.3af/at (PoE/PoE+) |
| PoE Power Budget | Up to 124 W |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| VLAN Support | Up to 128 VLANs |
| QoS (Quality of Service) | Layer 2/3 QoS Supported |
| Security | 802.1X, ACLs, Port Security, DHCP Snooping |
| Management | Cisco IOS, Web GUI, CLI, SNMP |
| Power Supply | Internal AC 100–240V |
| Dimensions (W x D x H) | 21 x 15 x 4.5 cm (approx.) |
| Weight | 1.2 kg (approx.) |
| Operating Temperature | 0°C to 45°C |
| Warranty | Cisco Limited Warranty |
Applications
Small office or branch network deployments
Powering IP phones, cameras, and Wi-Fi access points
Secure VLAN segmentation and network management
High-speed uplinks to core or aggregation switches
Enterprise-class performance in a compact design
