Buy Bosch GRL 600 CHV Professional Rotation Laser – 60M from Brighttech Limited.

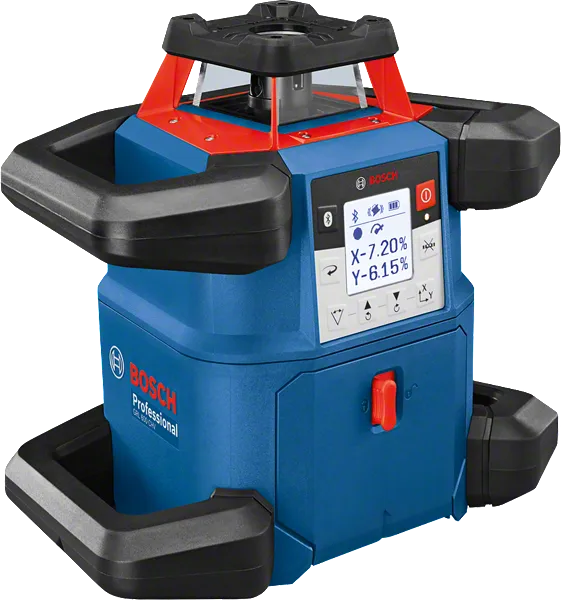

The Bosch GRL 600 CHV Professional Rotation Laser is a high-performance rotary laser designed for demanding construction, surveying, excavation, and site leveling applications. Built with an IP68-rated rugged housing, it withstands harsh jobsite conditions including dust, rain, and impacts. The laser provides an impressive 60-meter working range without a receiver and up to 600 meters in diameter with the Bosch LR 60 laser receiver, delivering exceptional accuracy for both indoor and outdoor work. It features automatic self-leveling, manual slope mode, remote control operation, and Bluetooth connectivity via the Bosch Levelling Remote App for increased productivity.
Key Features
- Working range up to 60 m without a receiver
- Up to 600 m diameter with Bosch LR 60 receiver
- High-precision self-leveling rotary laser
- Horizontal and vertical operation
- Manual single and dual slope functionality
- Bluetooth connectivity with Bosch Levelling Remote App
- IP68-rated dustproof and waterproof construction
- Shock-resistant design for harsh construction environments
- Compatible with Bosch 18V Professional batteries or D-cell batteries
- Remote control for convenient operation
- Rotation speeds of 150, 300, and 600 RPM
Technical Specifications
| Specification | Details |
|---|---|
| Model | Bosch GRL 600 CHV Professional |
| Laser Type | Rotary Laser |
| Laser Class | Class 2 |
| Laser Diode | 630–650 nm, <1 mW |
| Working Range (Without Receiver) | 60 m diameter |
| Working Range (With Receiver) | 600 m diameter |
| Leveling Accuracy | ±1.5 mm at 30 m (Horizontal), ±3.0 mm at 30 m (Vertical) |
| Self-Leveling Range | ±5° (±8.5%) |
| Rotation Speed | 150 / 300 / 600 RPM |
| Projection | 360° Rotary Laser |
| Slope Function | Yes |
| Power Supply | Bosch 18V Li-Ion Battery or 4 × D Batteries |
| Maximum Runtime | Up to 70 hours (D batteries), up to 60 hours (18V battery) |
| Protection Rating | IP68 |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +50°C |
| Tripod Thread | 2 × 5/8″ |
| Weight | 4.3 kg (with 4.0Ah battery) |
| Compatible Receiver | Bosch LR 60 |
Applications
- Construction site leveling
- Foundation layout
- Excavation and grading
- Concrete and formwork alignment
- Road construction
- Landscaping
- Ceiling and wall installations
- Infrastructure projects
- Surveying and earthworks
Package Contents
- Bosch GRL 600 CHV Professional Rotary Laser
- Bosch LR 60 Laser Receiver
- RC 6 Remote Control
- RB 60 Receiver Holder
- Wall Mount WM 6
- Battery Adapter BA 1
- Target Plate
- Red Laser Glasses
- Carrying Case
- User Manual
