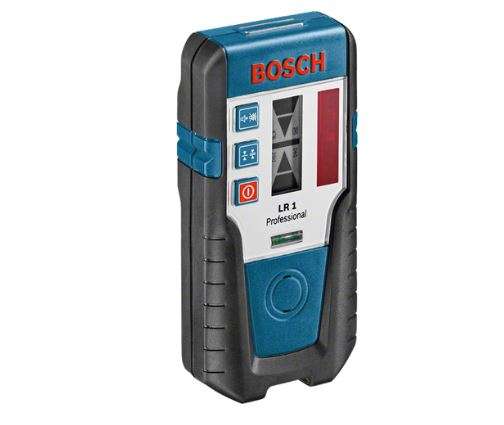

Buy Bosch LR 1 Professional Laser Receiver Range 0-200M from Brighttech Limited.
The Bosch LR 1 Professional Laser Receiver Range 0–200M is a professional laser receiver engineered to detect red rotary laser beams over long distances, making it the ideal companion for Bosch rotary lasers used in construction, surveying, landscaping, and leveling applications. It extends the working range of compatible Bosch rotary lasers up to 200 meters (radius), ensuring accurate laser detection even in bright outdoor environments.
Designed for productivity, the Bosch LR 1 Professional Laser Receiver Range 0–200M features a dual-sided LCD display, clear visual alignment indicators, and selectable audible signals for quick and precise positioning. Its rugged IP65-rated housing protects against dust and water jets, while integrated magnets allow convenient attachment to metal surfaces such as suspended ceiling tracks. Whether working indoors or outdoors, this receiver delivers dependable performance and precise alignment for professional measuring tasks.
Key Features
- Detects red rotary laser beams up to 200 m working range (radius) with compatible Bosch rotary lasers
- Compatible with Bosch GRL series rotary lasers
- Dual-sided LCD display for easy reading from either side
- Visual arrow indicators for fast laser alignment
- Selectable audible signals for hands-free operation
- Fine and medium accuracy modes
- Integrated heavy-duty magnets for metal surface mounting
- IP65-rated dustproof and water-resistant housing
- Automatic power-off to extend battery life
- Suitable for indoor and outdoor professional applications
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Bosch LR 1 Professional Laser Receiver Range 0–200M |
| Model | LR 1 Professional |
| Product Type | Laser Receiver |
| Laser Compatibility | Red Rotary Lasers |
| Working Range | Up to 200 m (radius)* |
| Reception Accuracy | ±1 mm (Fine), ±3 mm (Medium) |
| Reception Angle | 120° |
| Compatible Rotation Speed | >200 rpm |
| Display | Dual-sided LCD |
| Audio Signal | Yes (Selectable) |
| Protection Rating | IP65 |
| Power Supply | 1 × 9V (6LR61) Battery |
| Battery Runtime | Approx. 50 hours |
| Dimensions | 148 × 73 × 30 mm |
| Weight | Approx. 0.25 kg |
| Compatible Bosch Lasers | GRL 250 HV, GRL 300 HV, GRL 400 H |
Applications
- Construction site leveling
- Surveying and site layout
- Concrete and foundation work
- Landscaping projects
- Excavation and grading
- Suspended ceiling installation
- Outdoor laser alignment
- General professional measuring and leveling
Package Contents
- 1 × Bosch LR 1 Professional Laser Receiver
- 1 × Mounting Bracket
- 1 × 9V Battery
- User Manual
Compatible with rotary lasers including GRL 400 H and GRL 300 HV Professional, making it highly versatile on job sites
Bosch LR 1 Professional Laser Receiver Range 0-200M provides accurate laser detection over long distances
Durable design with IP65-rated housing for resistance to dust and water in rugged environments
Dual-sided LCD display for convenient readings from either side of the device
Includes a robust mounting bracket for secure attachment to leveling rods or staffs
