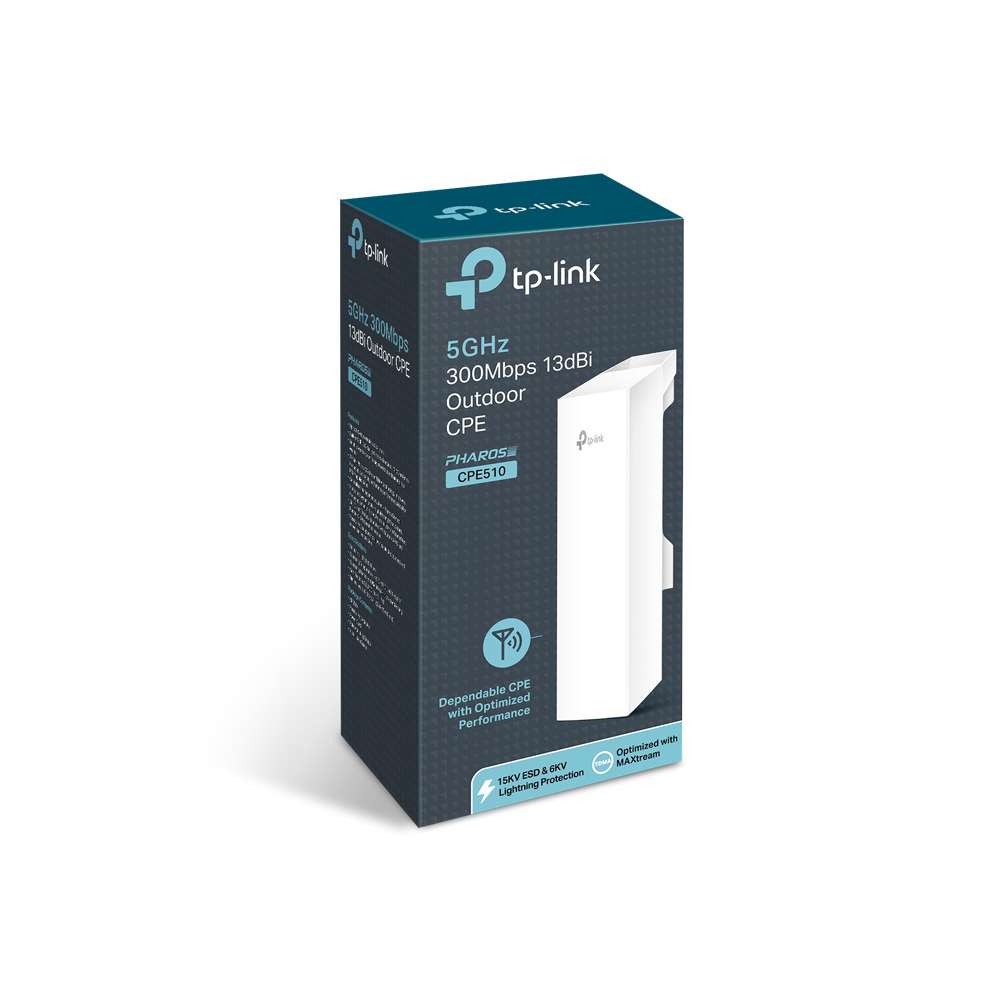

TP-Link 5GHz 300Mbps 13dBi Outdoor CPE – TL-CPE510

TP-Link 5GHz 300Mbps 13dBi Outdoor CPE – TL-CPE510

The TP-Link CPE510 5GHz 300Mbps 13dBi Outdoor CPE is a professional wireless networking solution built for long-distance point-to-point and point-to-multipoint connections. With its Qualcomm Atheros enterprise-grade chipset, dual-polarized directional antenna, and high transmission power, it delivers stable speeds up to 300Mbps and a coverage range of up to 15km.

Engineered for outdoor use in Kenya, the CPE510 features weatherproof IPX5-rated housing, 15KV ESD and 6KV lightning protection, ensuring reliable performance in harsh environments. It supports Pharos MAXtream TDMA technology for reduced latency and improved throughput, making it ideal for ISPs, CCTV backhaul, business networking, and rural internet deployments.

The device is powered via 24V passive PoE for flexible installation up to 60m, and can be easily managed through the Pharos Control centralized management platform. Advanced features such as multi-SSID with VLAN tagging, transmission power control, DFS, SNMP, and spectrum analysis make it a versatile outdoor wireless solution.

Whether you are connecting multiple buildings, distributing internet in rural areas, or deploying long-range Wi-Fi in Kenya, the TP-Link CPE510 provides cost-effective, high-performance outdoor networking.

Technical Specifications

Hardware Features

• Processor: Qualcomm Atheros 560MHz CPU (MIPS 74Kc)

• Memory: 64MB DDR2 RAM, 8MB Flash

• Interface: 1 × 10/100Mbps Shielded Ethernet Port (Passive PoE in)

• Power: Passive PoE (24V, up to 60m)

• Power Consumption: 10.5W Max

• Antenna: Built-in 13dBi 2×2 Dual-polarized directional antenna

• Protection: 15KV ESD, 6KV Lightning

• Enclosure: ASA stabilized plastic, IPX5 waterproof

• Dimensions: 224 × 79 × 60 mm

Wireless Features

• Standards: IEEE 802.11a/n

• Frequency: 5.15 ~ 5.85GHz

• Wireless Speed: Up to 300Mbps

• Transmission Range: Up to 15km

• Transmission Power: Adjustable up to 23dBm

• Modes: AP, Client, Repeater, AP Router, AP Client Router (WISP)

• Security: WPA/WPA2, WPA-PSK/WPA2-PSK, 64/128/152-bit WEP

Software Features

• Pharos MAXtream TDMA technology

• Channel width: 5/10/20/40MHz

• Pharos Control centralized management

• SNMP, DDNS, SSH, HTTPS/HTTP web-based management

• Spectrum Analyzer, Speed Test, Ping, Traceroute

Environmental

• Operating Temp: -30°C ~ 70°C

• Humidity: 10% ~ 90% non-condensing

Certifications

• CE, FCC, RoHS, IPX5

Package Contents

• CPE510 Unit

• 24V Passive PoE Adapter

• AC Power Cord

• Pole Mounting Straps

• Quick Installation Guide
