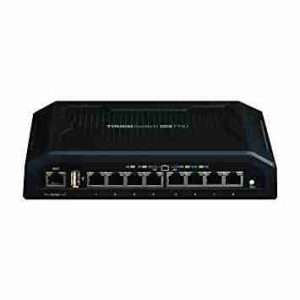

Ubiquiti Networks TS-8-PRO ToughSwitch 8 Port
Buy Ubiquiti Networks TS-8-PRO ToughSwitch 8 Port from Brighttech Kenya
The TS-8-PRO features Gigabit Ethernet performance combined with industrial strength construction and a 150 Watt power supply. The TOUGHSwitch PRO version is capable of powering up to eight 24V or 48V devices with software selectable output voltage control. It is the ideal PoE solution for use with Ubiquiti airMAX base station deployments.
Product Features
• 8 Gigabit PoE ports
• 24V / 48V Configurable passive PoE
• 150W Power
• TOUGHSwitch PoE configuration interface
• Tough full metal and rubber casing
Product Specifications
• Dimensions: 210 x 185 x 41mm
• Weight: 1.24kg
• Power Input: 110-120VAC / 210-230VAC
• Max. Power Consumption: 150W
• PoE Out Voltage Range: 45-48VDC / 22-24VDC
• Max. PoE Wattage per Data PorT: 18W
• ESD Rating: 24kV Air / 24kV Contact
• PoE Method: Passive
• Button: Reset
• USB Port: 2.0 Type A (reserved for future use)
• Processor: MIPS24K 400MHz
• System Memory: 64MB
• Code Storage: 8MB
• Certifications: CE, FCC, IC
• Operating Temperature: -24 to 55°C (-13 to 131°F)
• Operating Humidity: 90% non-condensing
• PoE Configurable per Port:
Management Port: N/A
Data Ports: Off/24V/48V
• LEDs per Port:
Management Port: Power/Link/Activity
Data Ports: PoE, Speed/Link/Activity
• Networking Interfaces:
Management Port: (1) 10/100 Ethernet Port
Data Ports: (8) 10/100/1000 Ethernet Ports
