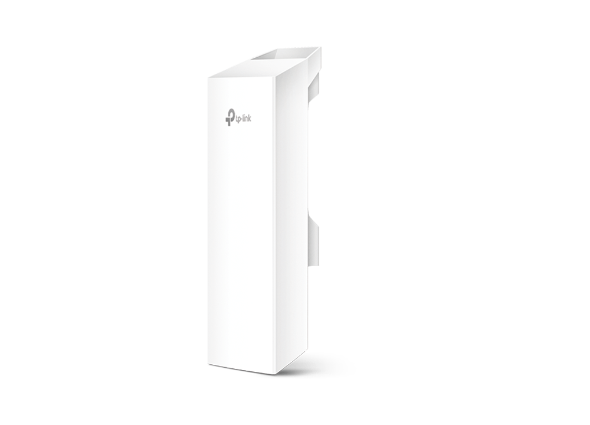

TP-Link 2.4GHz 300Mbps 12dBi Outdoor CPE – TL-CPE220
The TP-Link TL-CPE220 2.4GHz 300Mbps Outdoor CPE is an excellent choice for reliable, long-range outdoor wireless connections. Its 12dBi high-gain antenna extends Wi-Fi up to 5km, making it perfect for point-to-point links, rural internet, or extending networks across campuses.
Designed for the Kenyan market, the TL-CPE220 outdoor CPE in Kenya ensures consistent connectivity with strong signal penetration, weatherproof housing, and lightning protection. Businesses and ISPs can deploy it for Wi-Fi hotspots, CCTV backhaul, and broadband distribution. With passive PoE and Pharos Control software, it offers flexibility and easy management.
Specifications
Hardware Features
Model: TL-CPE220
Processor: Qualcomm Atheros enterprise-class chipset
Flash Memory: 4MB
RAM: 64MB DDR2
Interface: 1 × 10/100Mbps Ethernet (Passive PoE in)
Power Supply: Passive PoE (24V, 0.6A) up to 60m
Antenna: Built-in 12dBi directional dual-polarized antenna
LED Indicators: Power, LAN, Signal Strength
Button: Reset
Enclosure: Outdoor weatherproof (IPX5-rated)
Wireless Features
Wireless Standards: IEEE 802.11 b/g/n
Frequency Band: 2.4GHz
Data Rate: Up to 300Mbps
Transmit Power: Up to 27dBm (adjustable)
Reception Sensitivity:
300Mbps: -74dBm @10% PER
144Mbps: -77dBm @10% PER
54Mbps: -80dBm @10% PER
11Mbps: -95dBm @8% PER
Operating Modes: AP / Client / Repeater / AP Router / AP Client Router (WISP)
Software Features
Management: Pharos Control centralized management
Wireless Functions: Bridge, Router, WDS, Distance Adjustment (ACK timeout), Wireless Statistics
Security: WPA/WPA2, WPA-PSK/WPA2-PSK, 64/128/152-bit WEP encryption
QoS: Bandwidth control per SSID/client
Physical & Environmental
Dimensions (W × D × H): 224 × 79 × 60 mm
Operating Temperature: -30°C ~ 70°C
Storage Temperature: -40°C ~ 70°C
Operating Humidity: 10% ~ 90% (non-condensing)
Storage Humidity: 5% ~ 95% (non-condensing)
