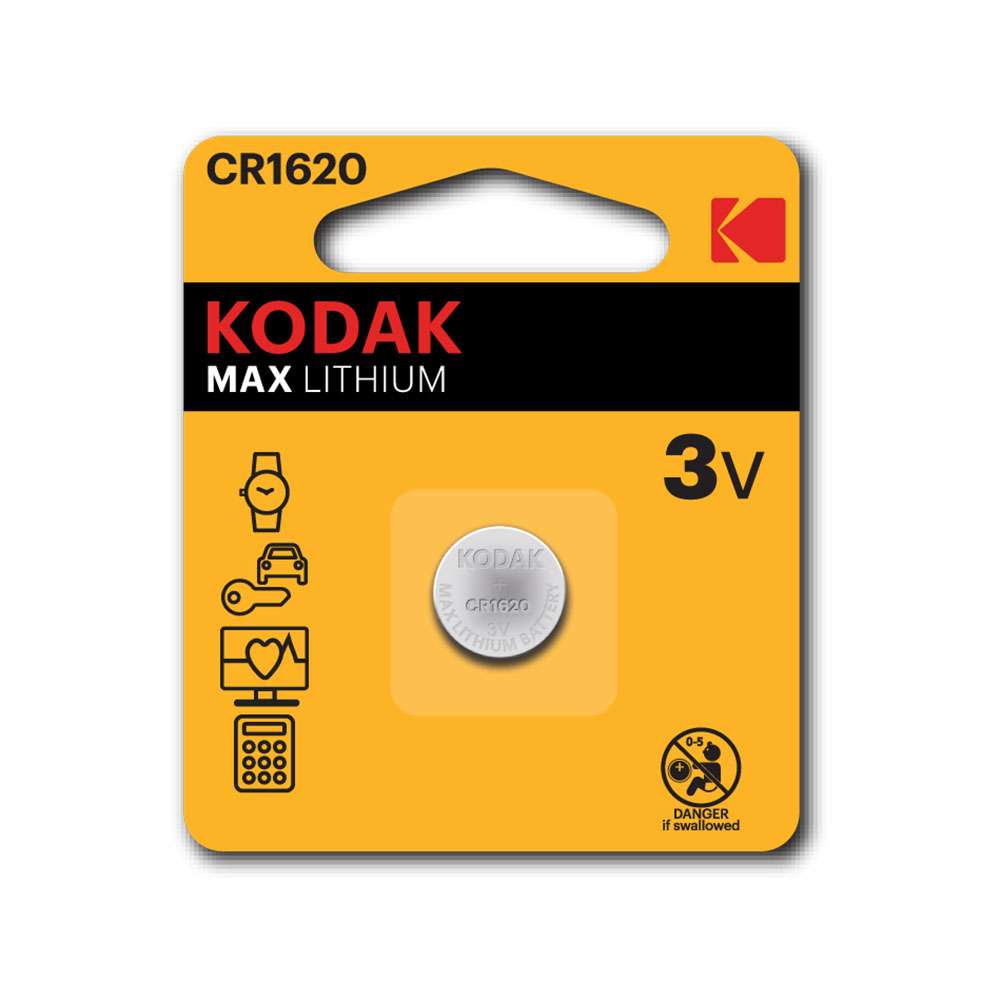

Kodak CR1620 Battery

The Kodak CR1620 battery is a lithium coin cell battery, known for its compact size and reliable power supply. It’s commonly used in devices such as watches, key fobs, and small electronics. Here are some key details:

• Voltage: 3V
• Diameter: 16 mm
• Thickness: 2.0 mm
• Capacity: Approximately 50 mAh

When replacing this battery, make sure to dispose of the old one properly, as lithium batteries can be harmful to the environment. If you need to purchase one, they are widely available at electronics stores, online retailers, and supermarkets.

Product Data Sheet
D-04-225-13
Page 1 of 1
Version:2.2
Date: 13 January 2021
KODAK KCR1620 MAX Lithium coin cell Effective: 13/01/2021

Chemical system: Lithium/Manganese Dioxide, Li / MnO2
Designations: IEC CR1620, ANSI 5009LC.
Nominal Voltage : 3.0 V
Nominal Capacity: 70 mAh at 62 kOhms to 2.0 Volts
Weight: 1.3 g
Volume: 0.4 cm3
Normal storage temperature: +10 – +25 °C, RH no more than 75%.
Normal Operating temperatures: -20 – +50 °C
Maximum Operating temperatures: -40 – +65°C
Reaction: Li + MnO2 → LiMnO2
Terminals: Flat contacts
Jacket: None
Approximate Lithium content: <=0.1 grams / cell
Note:
1) No added Mercury / 99.9999% Mercury Free
2) No added Lead /99.999% Lead Free
3) No added Cadmium / 99.9999% Cadmium Free
4) No added PFOS (Perfluorooctane sulfonates)
5) This battery complies with ANSI C18, IEC 60086, and EU Directive 2013/56/EU & 2006/122/EC.
6) SDS sheets are available on request from Strand Europe Ltd.
DANGER: Keep batteries out of reach of children. If swallowed, the battery can cause serious injury or death. Severe burns
can occur within hours of ingestion. If you suspect that a battery has been ingested, seek immediate medical attention.
Have doctor call CHEMTREC Day or Night on 1-800-424-9300 / +1 703-527-3887. CAUTION: Ensure that the battery
compartment is completely secure, meaning closed and locked to prevent easy access by children. If the battery
compartment cannot be completely secured, discontinue use of the product or keep out of sight and reach of children.
