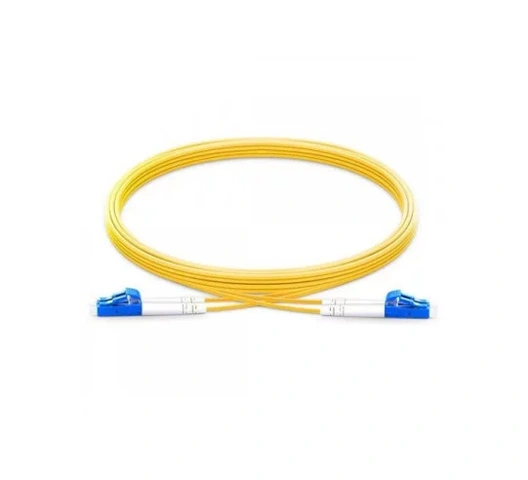

Fiber Patch Cord LSZH, LC UPC to LC UPC, SM, DX, 1M – LW-PC-LCU-LCU-DX-SM-1M:
The LW-PC-LCU-LCU-DX-SM-1M is a premium-quality LC UPC to LC UPC duplex fiber patch cord constructed using OS2 9/125μm single-mode bend-insensitive fiber with Low Smoke Zero Halogen (LSZH) outer jacket. This cable is purpose-built for high-performance, long-distance data transmission in high-density environments like data centers, telecom rooms, enterprise LANs, and cloud-based networks.
Thanks to its bend-insensitive fiber core, the cable minimizes signal loss when bent or twisted, making it easier to install in tight spaces while ensuring maximum data integrity. Whether you’re supporting 1G/10G/40G/100G/400G Ethernet or high-speed optical transmissions over 10km at 1310nm or 40km at 1550nm, this patch cord delivers reliable results every time..
Key Features
- Connector Type: LC UPC to LC UPC (Duplex)
- Fiber Type: OS2 9/125μm Single Mode
- Cable Length: 1 Meter
- Jacket Material: LSZH (Low Smoke Zero Halogen) – fire retardant and environmentally safe
- Bend-Insensitive Design: Reduces attenuation and makes cable routing easier
- High-Speed Compatibility: Supports 1G/10G/40G/100G/400G Ethernet
- Long-Distance Transmission: Up to 10km @ 1310nm, and up to 40km @ 1550nm
- Compact Build: Ideal for dense rack and panel setups
- RoHS Compliant: Ensures safety and environmental compliance
Specifications
| Parameter | Description |
|---|---|
| Product Code | LW-PC-LCU-LCU-DX-SM-1M |
| Connector Type | LC/UPC to LC/UPC |
| Fiber Classification | OS2 Singlemode (9/125µm) |
| Cable Construction | Duplex (2 cores) |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Jacket Diameter | 3.0mm (typical) |
| Cable Length | 1 Meter |
| Polish Type | UPC (Ultra Physical Contact) |
| Insertion Loss | ≤ 0.3dB |
| Return Loss | ≥ 50dB |
| Operating Wavelength | 1310nm / 1550nm |
| Transmission Distance | 10km (1310nm), 40km (1550nm) |
| Storage/Operating Temp | -20°C to +70°C |
| Color | Yellow (standard for single-mode) |
| Compliance | RoHS, IEC, TIA/EIA standards |
