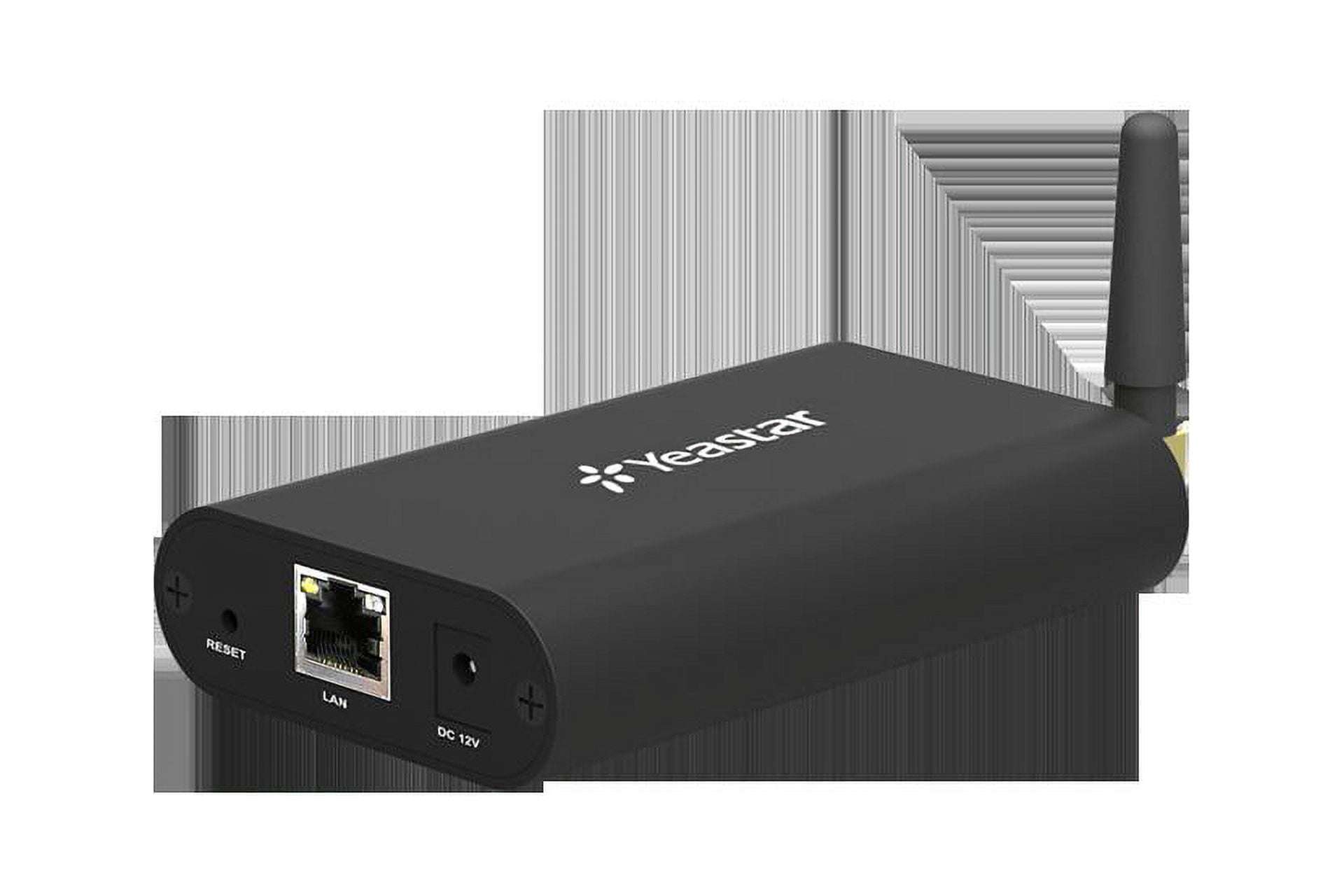

Yeastar Neogate TG100 GSM Gateway
The Yeastar Neogate TG100 is a compact, reliable GSM gateway designed to connect mobile networks with VoIP/IP-based phone systems. It enables businesses to reduce call costs by routing calls through GSM, while supporting SMS messaging, USSD services, and advanced call management features.
Ideal for small to medium-sized businesses, the TG100 features a user-friendly web interface, powerful security options, and high compatibility with most IP-PBX and softswitch platforms.
Key Benefits
Reduce communication costs by routing calls via GSM networks
SMS and USSD support for messaging and interactive services
Fallback communication link during landline outages
Compatible with most IP-PBX and softswitch systems
Secure and easy to manage via web interface
Specifications
| Feature | Specification |
|---|---|
| Model | Yeastar Neogate TG100 |
| Channels / Ports | 1 GSM/CDMA/UMTS (single SIM slot) |
| Mobile Network Support | GSM 850/900/1800/1900 MHz; UMTS 850/1900/900/2100 MHz; CDMA 800 MHz |
| VoIP Protocols | SIP, IAX2 |
| Voice Codecs | G.711 A-law/µ-law, G.722, G.726, G.729A, GSM, ADPCM, Speex |
| DTMF Methods | RFC2833, SIP-INFO, In-band |
| Networking | 1 × 10/100 Mbps LAN port (RJ45); Static IP/DHCP/DDNS; Firewall; VLAN; QoS; OpenVPN; NAT Traversal |
| Management | Web-based GUI; firmware upgrades; SMS/USSD API; system logs; backup/restore |
| Additional Features | Caller ID/CLIR, call waiting/transfer, call detail records, routing rules, blacklist/whitelist, PIN modification, balance alarms, bulk SMS, network-attack alerts, gain adjustment |
| Indicators | LEDs: RUN (system status), SIM/channel status |
| Physical / Power | Approx. 110 × 70 × 24 mm; DC 12 V adapter |
| Operating Conditions | 0 °C to 40 °C operating, -20 °C to 65 °C storage, 10–90% non-condensing humidity |
| Warranty | 2–3 years (varies by vendor) |
Product Overview
The TG100 Gateway from Yeastar can be a cost-saving addition for a backup option should landlines go out, and is great for phone calls between mobiles or to PTSN. Best of all, it’s easy to install with a web based GUI and simple to integrate.
Yeastar Neogate Series includes features such as SIP proxy Registrar for IP phones, incoming and outgoing call routing, SMS sending and receiving with a web interface, callback function, Least Cost Routing (LCR), top voice quality (EFR super sound), simple web based configuration, and it’s easy to integrate and easy to install.
Yeastar Neogate TG100 GSM Gateway Features and Functions:
- Number of GSM channels (Max): 1 (Quad-Band GSM/GPRS850/900/1800/1900MHz; Support external antenna)
- Protocol: SIP (RFC3261), IAX2
- Transport: UDP,TCP,TLS,SRTP
- DTMF: RFC2833, SIP INFO, In-band
- Codec: G.711 A/u-law, G.726, G.729 A, GSM, Speex.
- LAN: 1 (10/100MBps)
- Network: Static IP, DHCP Client, Firewall, VLAN, DDNS, QoS, OpenVPN
- Power Supply: AC 100~240V/50~60Hz (DC 12V, 1A)
- Size: 110x70x24mm
