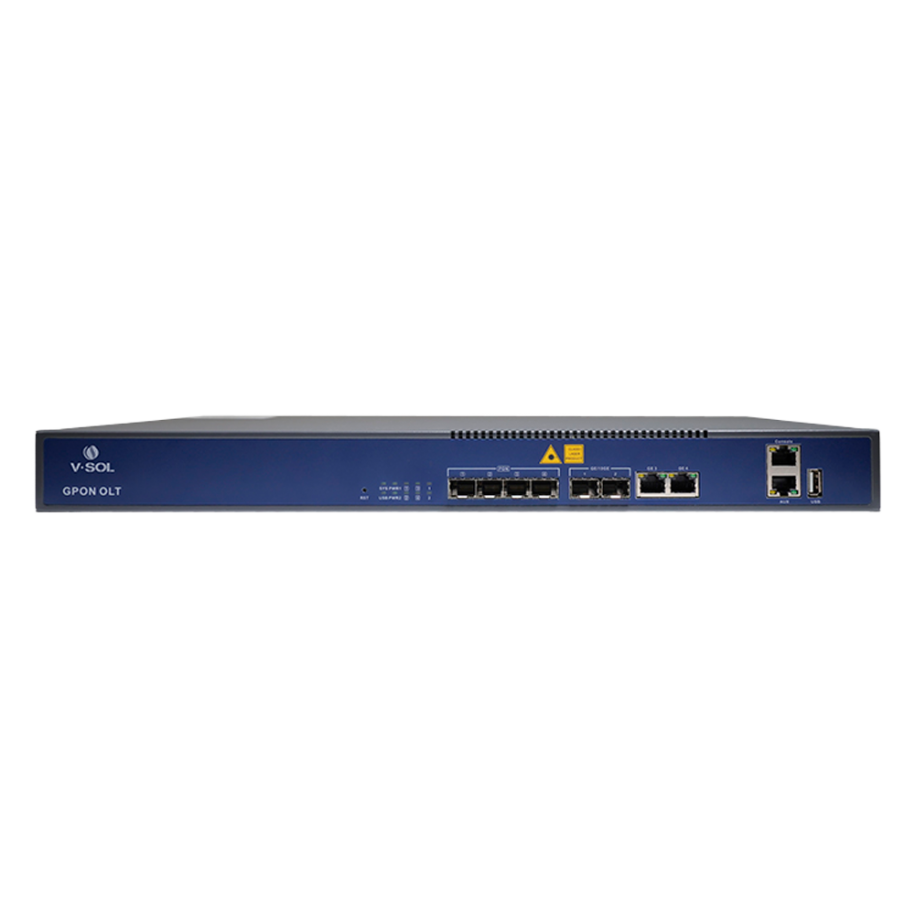

Vsol VSOL-V1600G0-B – V-SOL 4 Pon Gpon OLT Ports

KSh98,000.00

V-SOL V1600G0-B 4-Port GPON OLT is a high-performance Optical Line Terminal designed for FTTH and ISP broadband deployments. Featuring 4 GPON ports, dual 10G SFP+ uplinks, Layer 3 routing, advanced security features, and cloud-based management, it delivers reliable, scalable, and cost-effective fiber access for residential, enterprise, campus, and multi-dwelling unit networks.

✔️ Genuine & New • ✔️ Official Warranty • ✔️ Same-Day Nairobi Dispatch • ✔️ Secure Checkout (M-Pesa / Bank Transfer)

Description

Vsol VSOL-V1600G0-B – V-SOL 4 Pon Gpon OLT Ports

The V-SOL V1600G0-B GPON OLT is a high-performance 1U rack-mounted Optical Line Terminal designed for Fiber-to-the-Home (FTTH), Fiber-to-the-Building (FTTB), and Fiber-to-the-Multiple-Dwelling Unit (FTTM) deployments. Featuring 4 GPON ports, dual 10G SFP+ uplinks, Layer 3 routing capabilities, and comprehensive network management features, the V1600G0-B delivers reliable and scalable broadband access for Internet Service Providers (ISPs), enterprises, campuses, hotels, and residential fiber networks.

Built with advanced GPON technology, each PON port supports a split ratio of up to 1:128, allowing service providers to connect a large number of subscribers while maintaining excellent network performance. The OLT supports dynamic routing protocols such as RIP and OSPF, making it ideal for modern broadband infrastructure. Its compact 1U design, dual power options, and cloud-based management capabilities ensure easy deployment and simplified operation and maintenance.

Key Features

4 GPON PON ports
Supports up to 128 ONUs per PON port
Maximum split ratio of 1:128
2 × 10G SFP+ uplink ports
2 × Gigabit RJ45 uplink ports
Layer 3 routing support (RIP, OSPF)
Cloud EMS management
SNMP, CLI, Telnet, and Web management
Dual power supply support (AC/DC)
1U rack-mount design
Advanced firewall and security protection
Plug-and-play deployment with template configuration
Suitable for FTTH, FTTB, FTTM, and ISP applications
Supports centralized service management and monitoring

Technical Specifications

Specification	Details
Model	V-SOL V1600G0-B
Product Type	GPON OLT
GPON Ports	4 x GPON
GPON Interface	SFP Slots
Maximum Split Ratio	1:128
Uplink Ports	2 × Gigabit RJ45, 2 × 10G SFP+
GPON Downstream Rate	2.488 Gbps
GPON Upstream Rate	1.244 Gbps
Transmission Distance	Up to 20 km
Wavelength	TX 1490nm / RX 1310nm
Connector Type	SC/UPC
Fiber Type	9/125μm Single Mode Fiber
Dynamic Routing	RIP, OSPF
Management Ports	FE Out-band Port, Console Port, USB 2.0
Management Methods	EMS, Web, SNMP, Telnet, CLI
Backplane Bandwidth	104 Gbps
Forwarding Rate	47.616 Mpps
Power Supply	AC 100–240V or DC -48V
Power Consumption	35W
Dimensions	442 × 230 × 43.6 mm
Weight	2.95 kg
Operating Temperature	-20°C to +60°C
Relative Humidity	5% – 95% (Non-condensing)
Mounting	19-inch Rack Mount, 1U Height
