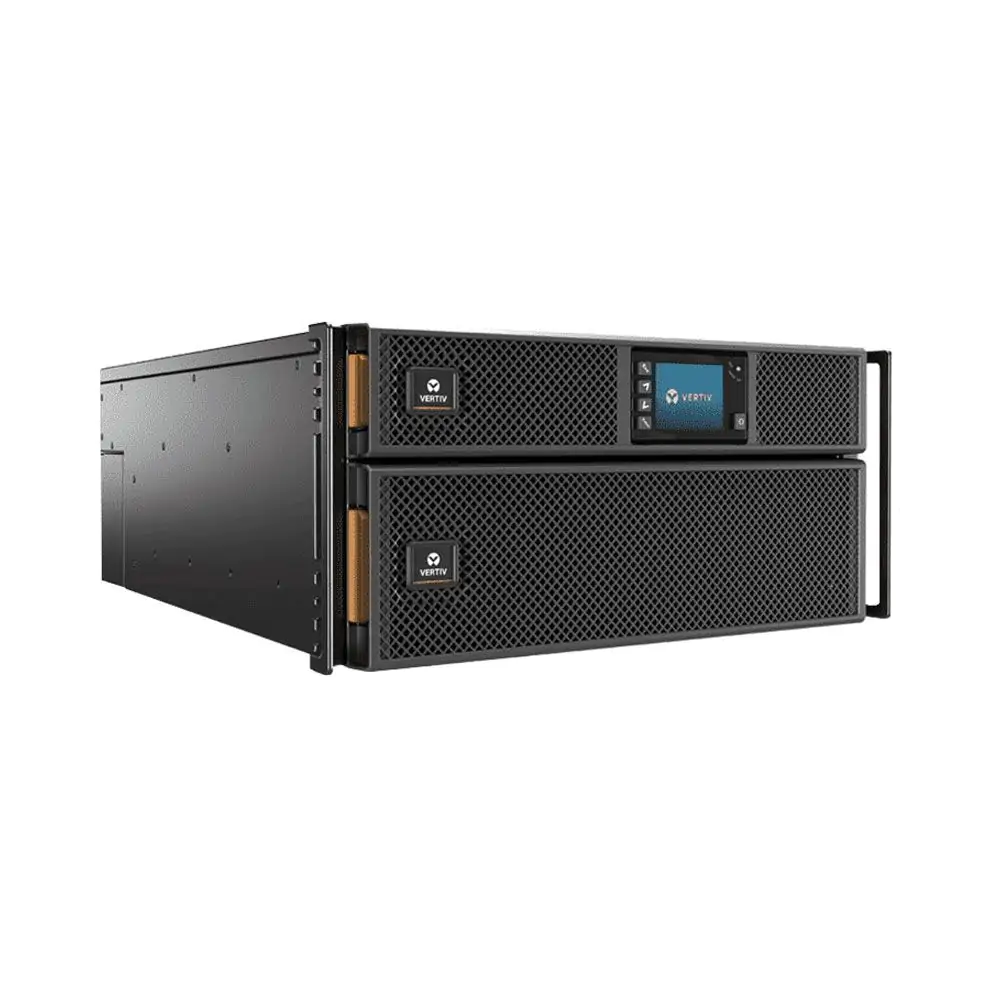

Vertiv Liebert GXT5 1ph UPS, 6kVA, input plug – hardwired, 5U, output – 230V, hardwired, output socket groups (6)C13 & (2)C19
The Liebert® GXT5™ single phase UPS operates with high power efficiency and it is ideally suited to protect critical infrastructure in both centralized and edge network applications. Scalable runtime options with matching external battery cabinets offer additional flexibility when extended uninterrupted power is required. Userfriendly LCD interface as well as full network management capability, including configuration and remote updates, make this system easy to deploy and simple to maintain. With market-leading efficiency and unity power factor operation, the Liebert® GXT5™ will fill your critical application needs.Sleep well knowing your business is protected by the premium products from Vertiv.
With internet of things (IoT), edge computing and 5G driving the proliferation of interconnected devices, there is growing need to place compute and storage closer to the users to reduce latency and improve the overall customer experience.These new technology trends are putting pressure on the power demand, as there is all the more a need to maintain efficiency and availability. You need an uninterruptible power supply (UPS) system that’s highly available, energy efficient and flexible enough to adapt according to your business needs.
The new Liebert GXT5 from Vertiv is an advanced version of the widely-regarded GXT UPS series.
Specifications
| Power | |
|---|---|
| Output power | 6000 W |
| Input operation voltage (min) | 176 V |
| Input operation voltage (max) | 288 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 94% |
| Output power capacity | 6 kVA |
| Charging current | 2.25 A |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Pure sine |
| Noise level | 55 dB |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Double-conversion (Online) |
| Waveform | Pure sine |
| Output power | 6000 W |
| Input operation voltage (min) | 176 V |
| Input operation voltage (max) | 288 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 94% |
| Noise level | 55 dB |
| Output power capacity | 6 kVA |
| Input frequency | 40/70 Hz |
| Charging current | 2.25 A |
| Ports & interfaces | |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Battery | |
| Typical backup time at half load | 870 min |
| Typical backup time at full load | 330 min |
| Charging current | 2.25 A |
| Design | |
| Form factor | Tower |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -15 – 40 °C |
| Operating relative humidity (H-H) | 0 – 95% |
| Technical details | |
| Output frequency | 50/60 Hz |
| Weight & dimensions | |
| Weight | 70.8 kg |
| Width | 430 mm |
| Height | 217 mm |
| Depth | 630 mm |
