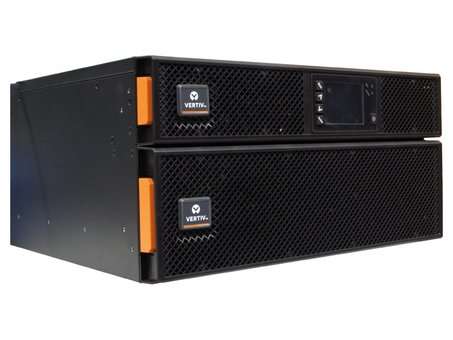

Vertiv Liebert GXT5 1ph UPS, 10kVA, input plug - hardwired, 5U, output – 230V, hardwired, output socket groups (4)C13 & (4)C19 - GXT5-10kIRT5UXLE

Vertiv Liebert GXT5 1ph UPS, 10kVA, input plug - hardwired, 5U, output – 230V, hardwired, output socket groups (4)C13 & (4)C19 - GXT5-10kIRT5UXLE - Image 2

Vertiv Liebert GXT5 1ph UPS, 10kVA, input plug - hardwired, 5U, output – 230V, hardwired, output socket groups (4)C13 & (4)C19 - GXT5-10kIRT5UXLE - Image 3

Vertiv Liebert GXT5 1ph UPS, 10kVA, input plug - hardwired, 5U, output – 230V, hardwired, output socket groups (4)C13 & (4)C19 - GXT5-10kIRT5UXLE - Image 4

Vertiv Liebert GXT5 1ph UPS, 10kVA, input plug - hardwired, 5U, output – 230V, hardwired, output socket groups (4)C13 & (4)C19 - GXT5-10kIRT5UXLE - Image 5

Vertiv Liebert GXT5 1ph UPS, 10kVA, input plug - hardwired, 5U, output – 230V, hardwired, output socket groups (4)C13 & (4)C19 - GXT5-10kIRT5UXLE - Image 6

Vertiv Liebert GXT5 1ph UPS, 10kVA, input plug – hardwired, 5U, output – 230V, hardwired, output socket groups (4)C13 & (4)C19 – GXT5-10kIRT5UXLE

KSh480,000.00

Vertiv Liebert GXT5 1ph UPS, 10kVA, input plug – hardwired, 5U, output – 230V, hardwired, output socket groups (4)C13 & (4)C19 – GXT5-10kIRT5UXLE

Vertiv Liebert GXT5 1ph UPS, 10kVA, Input Plug – Hardwired, 5U, Output ? 230V, Hardwired, Output Socket Groups (4)C13 & (4)C19

Features ;

Liebert GXT5 UPS is an online double conversion UPS solution.
It offers premium power outage protection and continuous power conditioning in a compact and flexible deployment system.
It protects critical equipment from all power disturbances due to blackouts, brownouts, saps, surges or noise interference.

✔️ Genuine & New • ✔️ Official Warranty • ✔️ Same-Day Nairobi Dispatch • ✔️ Secure Checkout (M-Pesa / Bank Transfer)

Category: Vertiv Liebert UPS Tags: gxt5 3000irt2uxl datasheet, gxt5 5000irt5uxln manual, gxt5 ebc192vrt3u, gxt5-10kirt5uxle data sheet, gxt5-10kirt5uxle manual, gxt5-16kirt9uxle, gxt5-6000irt5uxle, vertiv gxt5

Description

Vertiv Liebert GXT5 1ph UPS, 10kVA, input plug – hardwired, 5U, output – 230V, hardwired, output socket groups (4)C13 & (4)C19 – GXT5-10kIRT5UXLE

Liebert™ GXT5 UPS is an online double conversion UPS solution which offers premium power outage protection and continuous power conditioning in a compact and flexible deployment system. It protects critical equipment from all power disturbances due to blackouts, brownouts, saps, surges or noise interference. Scalable runtime option with matching auto-detection external battery cabinets offer additional flexibility when extended uninterrupted power is required. User friendly LCD interface as well as full network management capability, including configuration and remote updates, make this system easy to deploy and simple to maintain. With market leading efficiency and unity power factor operation, the Liebert™ GXT5 will fill your critical applications needs.

Technical Data

Power
Output voltage regulation	3%
Output power factor	1
Input power factor	0.99
Output power	10000 W
Input operation voltage (min)	176 V
Input operation voltage (max)	288 V
Output operation voltage (min)	230 V
Output operation voltage (max)	240 V
Efficiency	95%
Emergency Power Off (EPO)	Yes
Power factor	1
Output power capacity	10000 VA
Efficiency (On-line mode)	95%
Single-phase input voltage supported	220,230,240 V
Battery
Battery type	VRLA
Number of batteries supported	16
Battery voltage	12 V
Battery capacity	9 Ah
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at half load	7 min
Typical backup time at full load	2 min
Hot-swap battery	Yes
Battery recharge time(90%)	5 h
Performance
UPS topology	Double-conversion (Online)
Waveform	Pure sine
Number of output phases	1
Number of input phases	1
Power protection features	Overload
Noise level	55 dB
Audible alarm(s)	Yes
Overload capacity (1 minute)	150%
Overload capacity (5 minute)	125%
Features
Output frequency	50/60 Hz
UPS topology	Double-conversion (Online)
Waveform	Pure sine
Output voltage regulation	3%
Number of output phases	1
Number of input phases	1
Output power factor	1
Input power factor	0.99
Output power	10000 W
Input operation voltage (min)	176 V
Input operation voltage (max)	288 V
Output operation voltage (min)	230 V
Output operation voltage (max)	240 V
Efficiency	95%
Emergency Power Off (EPO)	Yes
Power protection features	Overload
Power factor	1
Noise level	55 dB
Audible alarm(s)	Yes
Output power capacity	10000 VA
Overload capacity (1 minute)	150%
Overload capacity (5 minute)	125%
Efficiency (On-line mode)	95%
Single-phase input voltage supported	220,230,240 V
Input frequency	50/60 Hz
Ports & interfaces
USB port	Yes
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler,C19 coupler,IEC 320,Terminal
Power plug	Terminal
Serial ports quantity	1
RS-232 ports	1
Design
International Protection (IP) code	IP20
Rack capacity	5U
Form factor	Rackmount/Tower
Product colour	Black
Safety	IEC62040-1:2008
Display	LCD
Cooling type	Active
Certification	CE, EMI/EMC/C-Tick EMC, ESD
RoHS compliance	Yes
Operational conditions
Operating temperature (T-T)	0 – 40 C
Storage temperature (T-T)	-15 – 40 C
Operating relative humidity (H-H)	0 – 95%
Storage relative humidity (H-H)	0 – 95%
Operating altitude	0 – 3000 m
Technical details
Output voltage	230 V
Output frequency	50/60 Hz
Cooling
Cooling type	Active
Weight & dimensions
Weight	74.5 kg
Width	430 mm
Height	217 mm
Depth	630 mm
Package width	646 mm
Package depth	816 mm
Package height	520 mm
Package weight	93 kg
Packaging data
Package width	646 mm
Package depth	816 mm
Package height	520 mm
Package weight	93 kg
Certificates
Safety	IEC62040-1:2008
Certification	CE, EMI/EMC/C-Tick EMC, ESD
RoHS compliance	Yes
Other features
Output voltage	230 V
Battery type	VRLA
