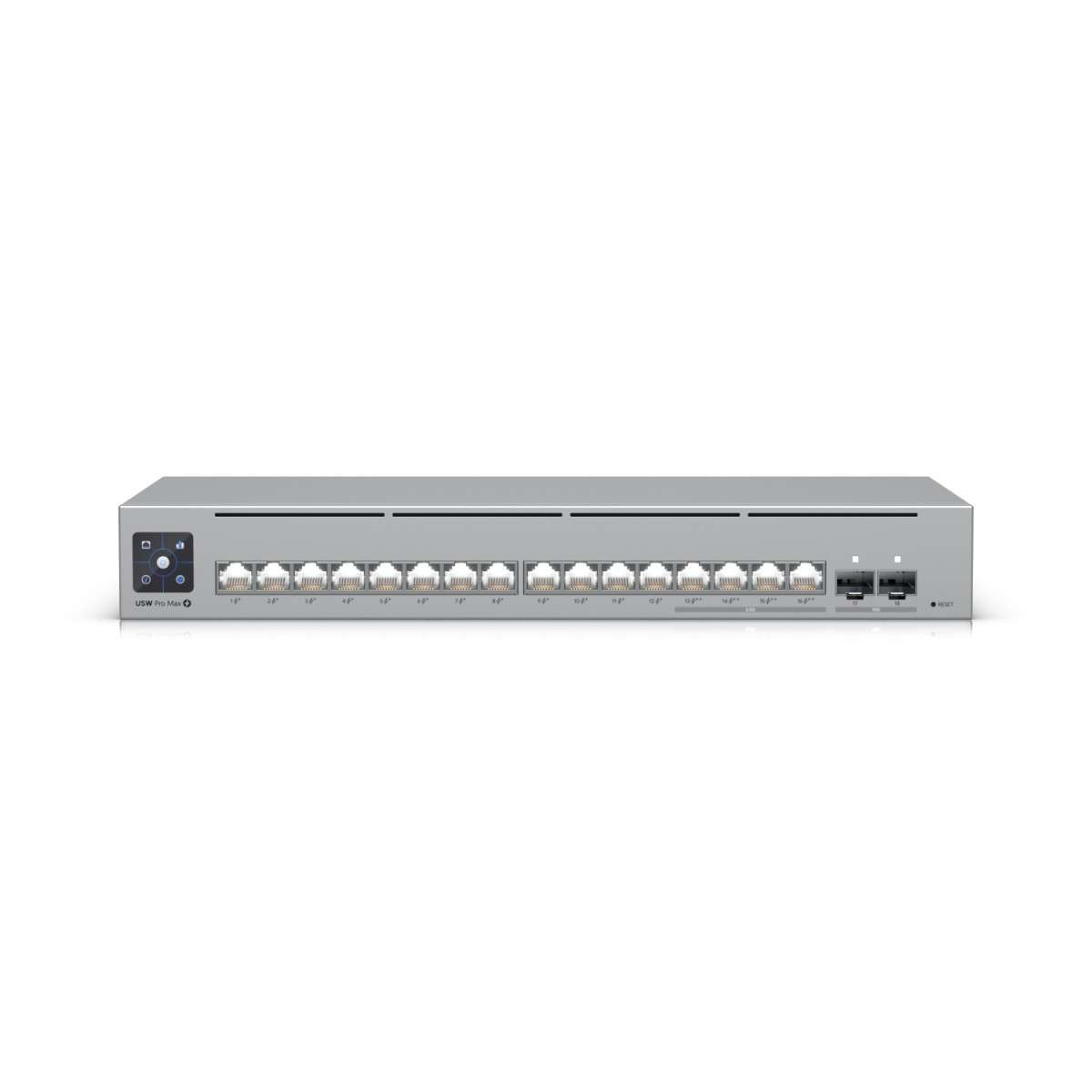

Ubiquiti USW-Pro-Max-16-PoE Switch
The Ubiquiti USW-Pro-Max-16-PoE Switch is a high-performance, 16-port managed switch designed to meet the needs of modern networking environments. Whether you’re building a small business network or setting up a large enterprise infrastructure, the Ubiquiti USW-Pro-Max-16-PoE Switch provides superior reliability, scalability, and power. Equipped with advanced features like PoE+ support, a robust management interface, and top-tier performance, this switch is an essential component for high-demand networking applications.
Featuring 16 Gigabit Ethernet ports, the Ubiquiti USW-Pro-Max-16-PoE Switch delivers seamless data transfer and power over Ethernet, allowing you to power devices such as IP cameras, phones, and access points directly from the switch. The built-in Power over Ethernet (PoE) support simplifies installation by eliminating the need for additional power sources or adapters.
What sets the Ubiquiti USW-Pro-Max-16-PoE Switch apart from other networking solutions is its ability to handle heavy traffic loads without compromising on performance. With its advanced Layer 2 and Layer 3 switching capabilities, users can manage VLANs, routing, and security policies with ease, ensuring smooth and secure operations. The switch also comes with a built-in touchscreen interface for quick and easy setup and monitoring, making network management straightforward even for users with limited technical experience.
The Ubiquiti USW-Pro-Max-16-PoE Switch also includes redundancy features such as hot-swappable power supplies, ensuring that your network remains up and running even in the event of a hardware failure. This makes it an ideal choice for businesses that require continuous uptime and minimal disruption.
Key Features:
16 × RJ45 ports (mix of 1GbE and 2.5GbE)
2 × 10Gb SFP+ uplink ports for high-speed backbone connections
Layer 3 switching and routing capabilities
PoE++ (802.3bt) power with 180 W total budget

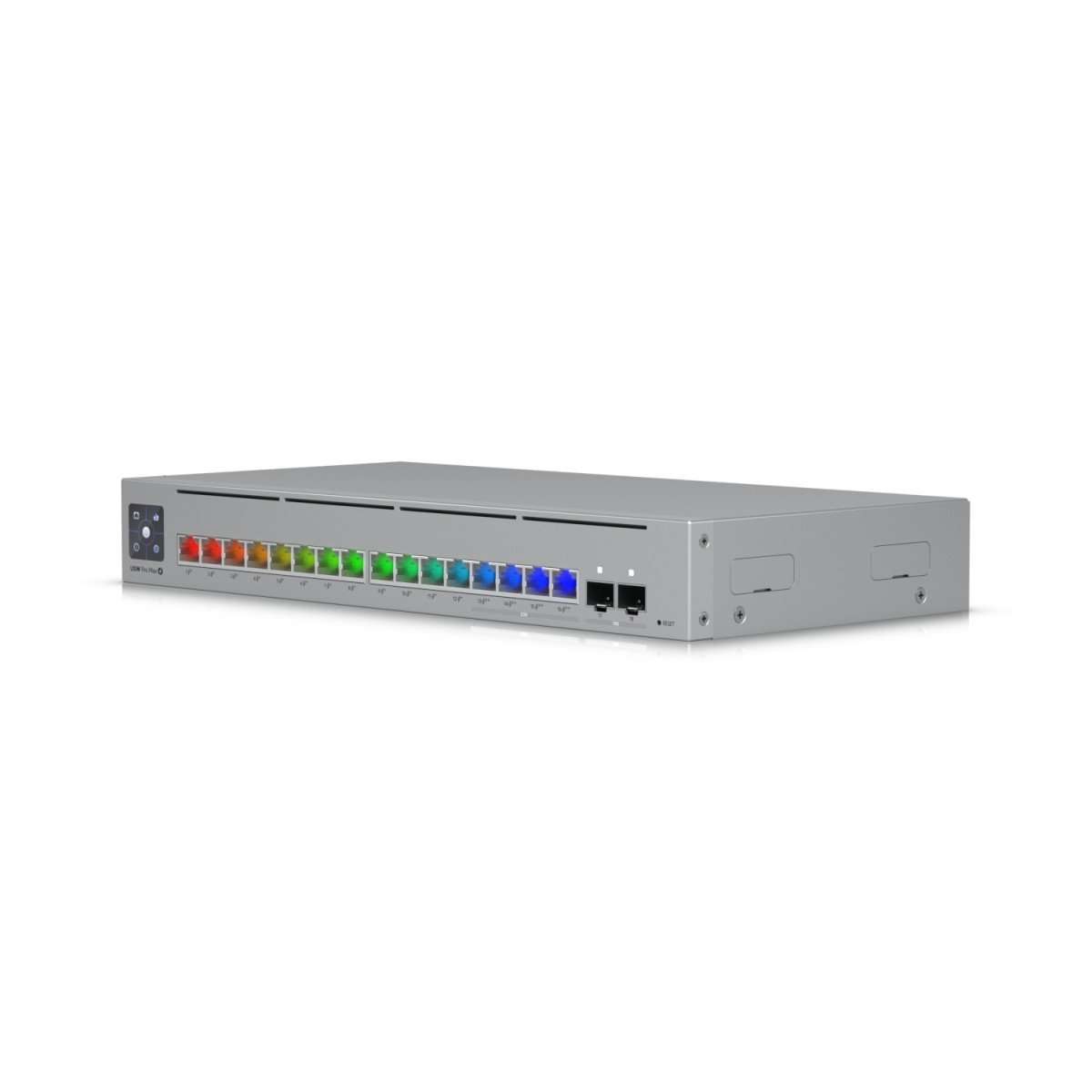

Etherlighting™ port illumination for quick visual identification
Centralized management via UniFi Network Controller
Ideal for powering Wi-Fi 6/6E access points, IP cameras, and VoIP systems
Benefits:
High performance: 2.5GbE ports ensure faster data throughput for bandwidth-intensive applications.
Future-ready: PoE++ support powers advanced UniFi devices and smart IoT solutions.
Smart management: Configure VLANs, QoS, and PoE schedules through the UniFi Controller.
Enterprise-grade: Built for modern businesses, data centers, and smart office setups.
Specifications:
| Specification | Details |
|---|---|
| Ports | 16 × RJ-45 (12 × 1 GbE, 4 × 2.5 GbE), 2 × 10 Gb SFP+ |
| Switching Capacity | 84 Gbps |
| Non-Blocking Throughput | 42 Gbps |
| Forwarding Rate | 62 Mpps |
| PoE Standard | 802.3af/at/bt (PoE++) |
| Total PoE Budget | 180 W |
| Layer 3 Features | Static routing, inter-VLAN routing, ACLs |
| Management | UniFi Network Controller |
| MAC Address Table | 16,000 entries |
| VLAN Support | Up to 1,000 VLANs |
| Power Input | External AC/DC adapter |
| Operating Temperature | −5 °C – 40 °C |
| Dimensions | 325.1 × 160 × 43.7 mm |
| Mounting Options | Desktop, wall, or rack mount (1U) |
| Certifications | CE, FCC, IC |
