Ubiquiti UniFi U7 Pro Max WiFi 7 Access Point (U7-Pro-Max)
Experience the future of wireless networking with the Ubiquiti UniFi U7 Pro Max WiFi 7 Access Point (U7-Pro-Max). Designed for high-performance enterprise environments, this access point supports the latest WiFi 7 (802.11be) standard with total throughput of 15.1 Gbps, ensuring seamless connectivity for over 500 concurrent devices.
With 8 spatial streams, real-time spectral analysis, and 4×4 MIMO on the 5GHz band, the UniFi U7 Pro Max guarantees exceptional speed and reliability for bandwidth-heavy applications such as video conferencing, streaming, and VR. Its cloud-managed UniFi Network software offers easy setup, remote management, and advanced security features including WPA3 encryption, guest traffic isolation, and per-user QoS.

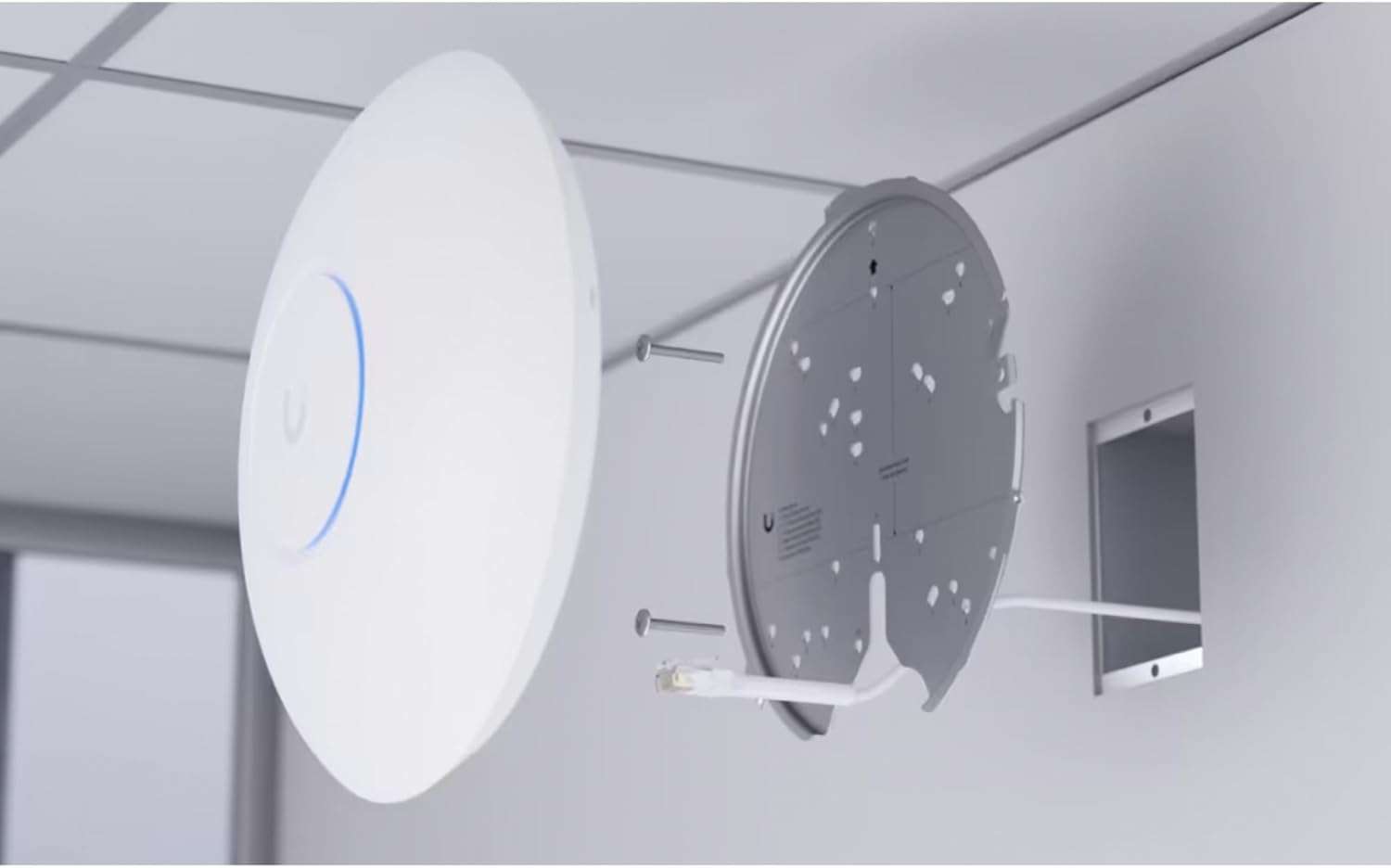

Powered via PoE+, installation is simple—only one cable for both data and power. The device comes with wall and ceiling mounting options, making it adaptable to any professional setup.
Perfect for corporate offices, educational institutions, hotels, and event spaces, the UniFi U7 Pro Max combines cutting-edge wireless technology with robust hardware for maximum uptime and performance.
Specifications
Mechanical
Dimensions: Ø206 × 46 mm
Weight: 680 g
Enclosure: Polycarbonate, aluminum

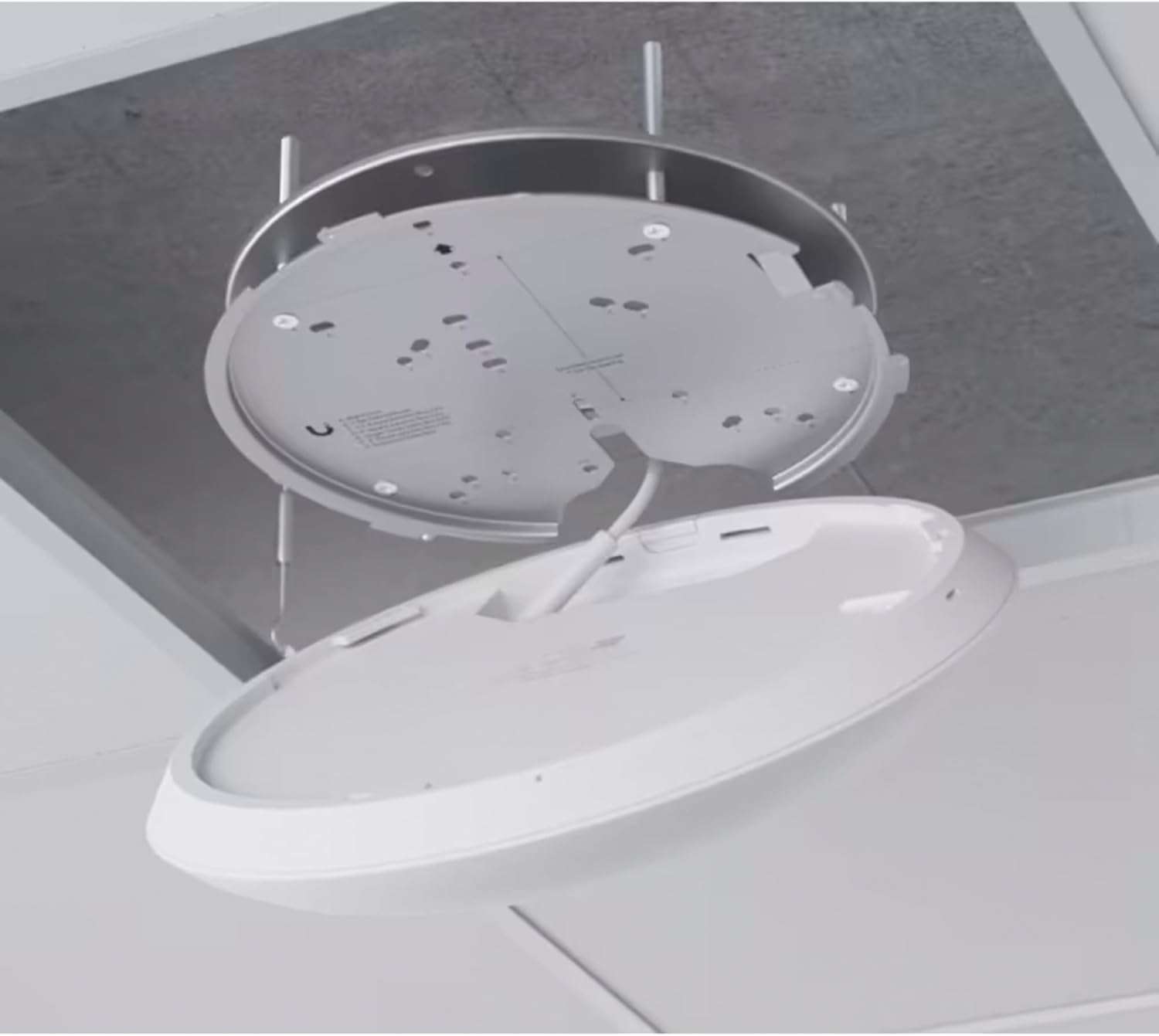

Mounting: Wall/Ceiling (included)
Hardware
Networking Interface: (1) 1/2.5 GbE RJ45 port
Power Method: PoE+ (44–57V DC)
Max Power: 22W
Max Clients: 500+
Max TX Power: 2.4GHz – 23 dBm | 5GHz – 29 dBm | 6GHz – 23 dBm
Performance
WiFi Standards: 802.11a/b/g/n/ac/ax/be (WiFi 7)
Throughput: 2.4GHz – 688 Mbps | 5GHz – 8648 Mbps | 6GHz – 5765 Mbps
Antenna Gain: 2.4GHz – 4 dBi | 5GHz – 6 dBi | 6GHz – 5.9 dBi
MIMO: 2×2 (2.4GHz, 6GHz) | 4×4 (5GHz)
Software Features
Security: WPA-PSK, WPA2, WPA3, WPA-Enterprise
VLAN Support: 802.1Q
QoS: Per-user rate limiting
Guest Isolation: Supported
Environment
Operating Temperature: -30° to 60°C
Operating Humidity: 5–95% non-condensing
