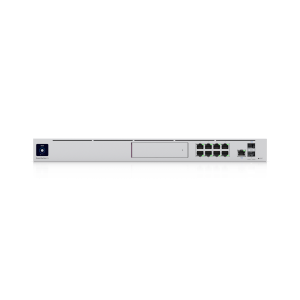

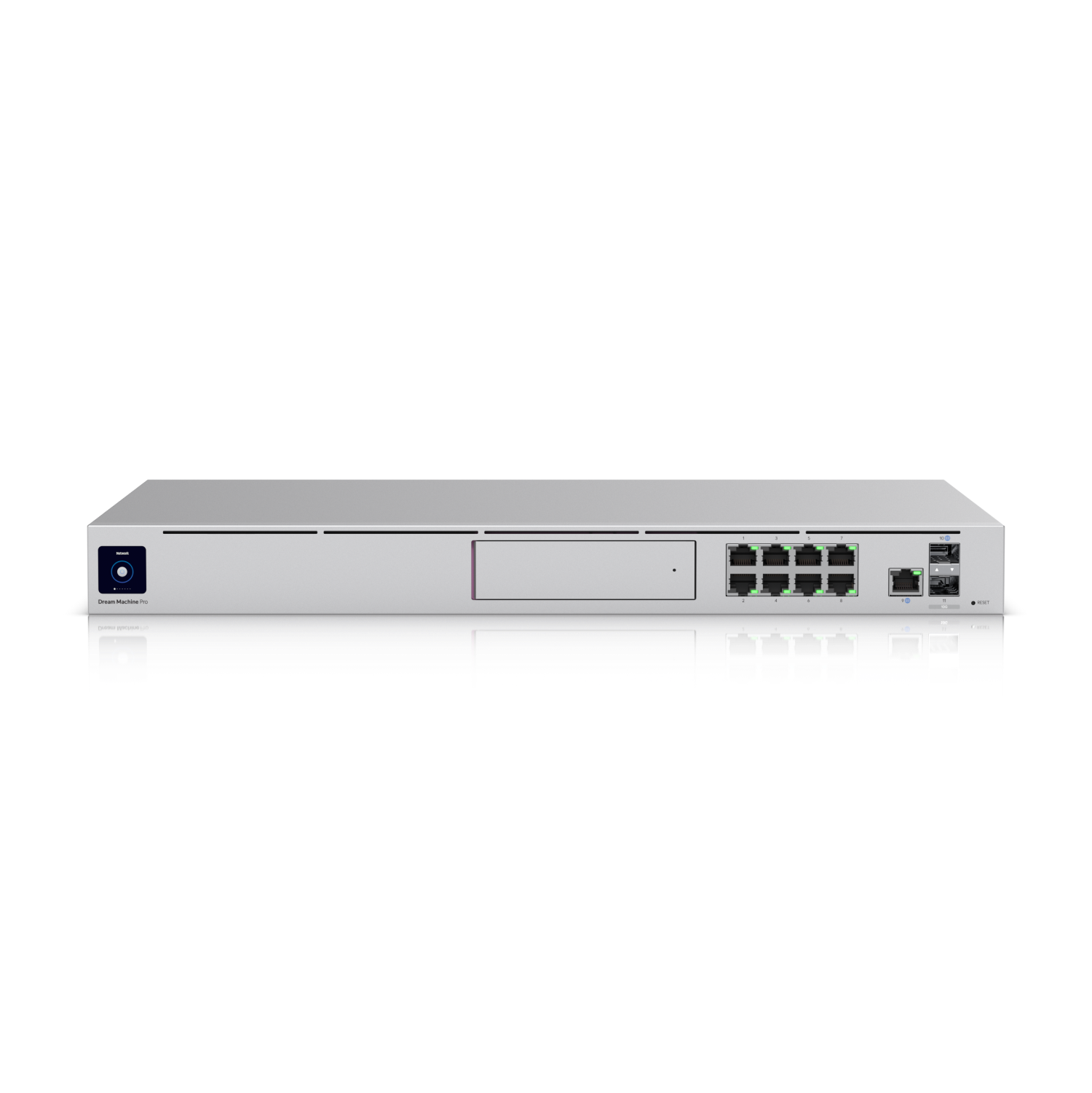

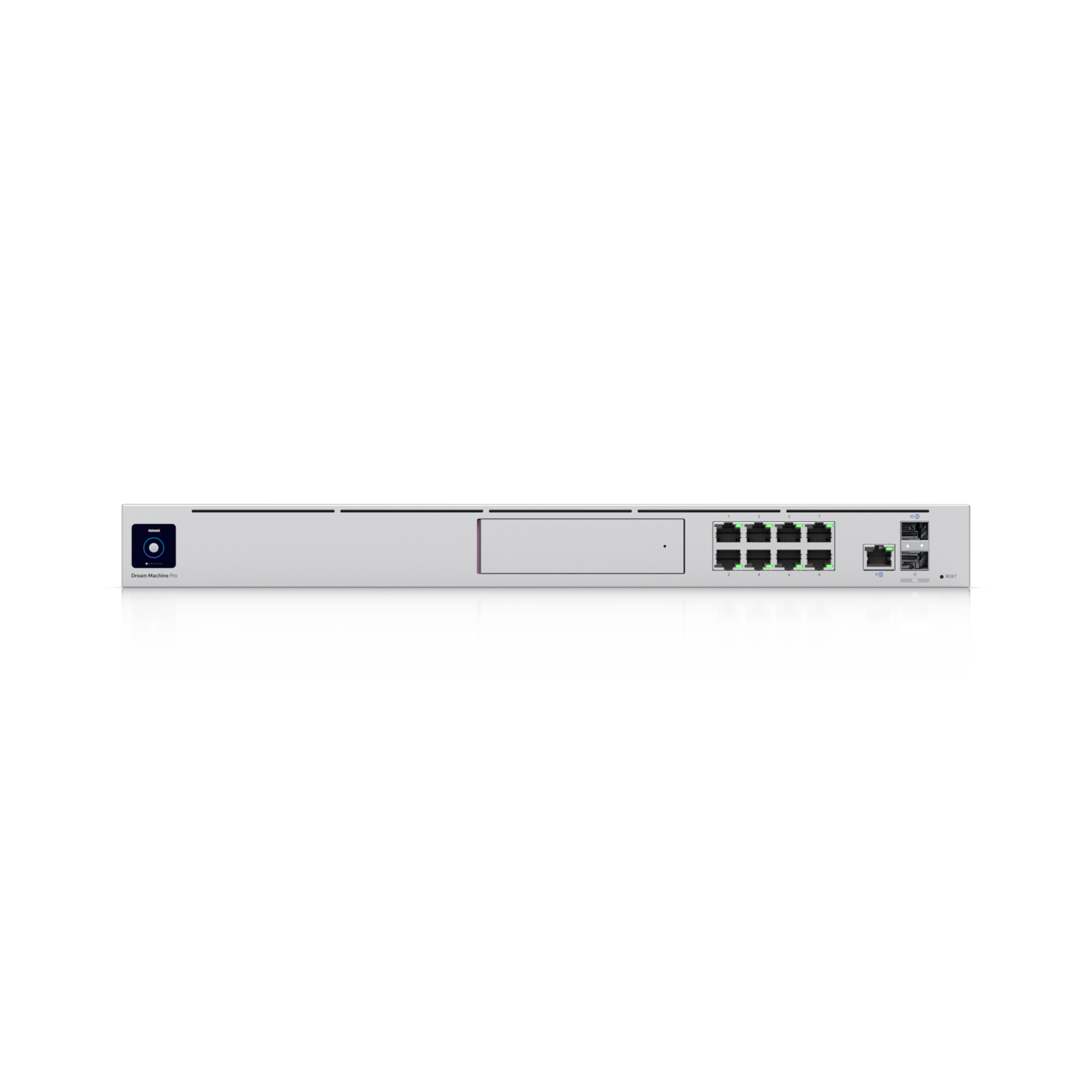

Ubiquiti UDM-PRO UniFi Dream Machine PRO
UniFi Dream Machine Pro (UDM-Pro): (8) GbE LAN, (1) 10G SFP+ LAN, WAN: (1) GbE + (1) 10G SFP+
The Ubiquiti UDM-PRO UniFi Dream Machine PRO is a network security gateway device designed for small to medium-sized businesses and home networks. It is a combination of a router, switch, and access point with advanced features such as IDS/IPS, VPN server, and more.
The UDM-PRO features an 8-port gigabit switch with 10G SFP+ ports, providing high-speed connectivity for wired devices. It also has a built-in 802.11ac Wave 2 access point, providing wireless connectivity with up to 1.7 Gbps speeds.
In terms of security, the UDM-PRO has a built-in Intrusion Detection System/Intrusion Prevention System (IDS/IPS) that can detect and block network attacks. It also has a built-in VPN server that supports site-to-site and client-to-site VPNs, allowing remote access to the network.
The UDM-PRO is managed through the UniFi Controller software, which provides an easy-to-use interface for configuring and monitoring the network. The software also provides advanced features such as network statistics, guest portal, and more.
specifications for the Ubiquiti UDM-PRO UniFi Dream Machine PRO:
Dimensions and weight:
- Dimensions: 442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24″)
- Weight: 3.90 kg (8.60 lb)
Networking Interfaces:
- (8) 10/100/1000 RJ45 LAN Ports
- (1) 10/100/1000 RJ45 WAN Port
- (1) 10G SFP+ LAN Port
- (1) 10G SFP+ WAN Port
Wi-Fi:
- 802.11a/b/g/n/ac Wave 2
- 4×4 MU-MIMO with up to 1.7 Gbps aggregate radio rate
- Supports both 2.4GHz and 5GHz bands
IDS/IPS:
- Hardware-accelerated IDS/IPS engine for efficient network protection
- Deep packet inspection (DPI) with customizable threat management
VPN:
- Integrated VPN server for secure remote access
- Supports site-to-site and client-to-site VPNs
- Easy-to-use VPN interface for configuring and managing VPN connections
Management:
- UniFi Network app and UniFi Network Controller for easy network management
- Web browser access via UniFi Network Controller
- Advanced network statistics and monitoring
- Guest portal and hotspot support
Hardware:
- 1.3 GHz quad-core processor
- 2 GB DDR RAM
- 16 GB eMMC storage
- Fanless design for quiet operation
Power:
- Internal 100-240V AC/50-60 Hz, 1.5A power supply
- Power consumption: 33W (max)
