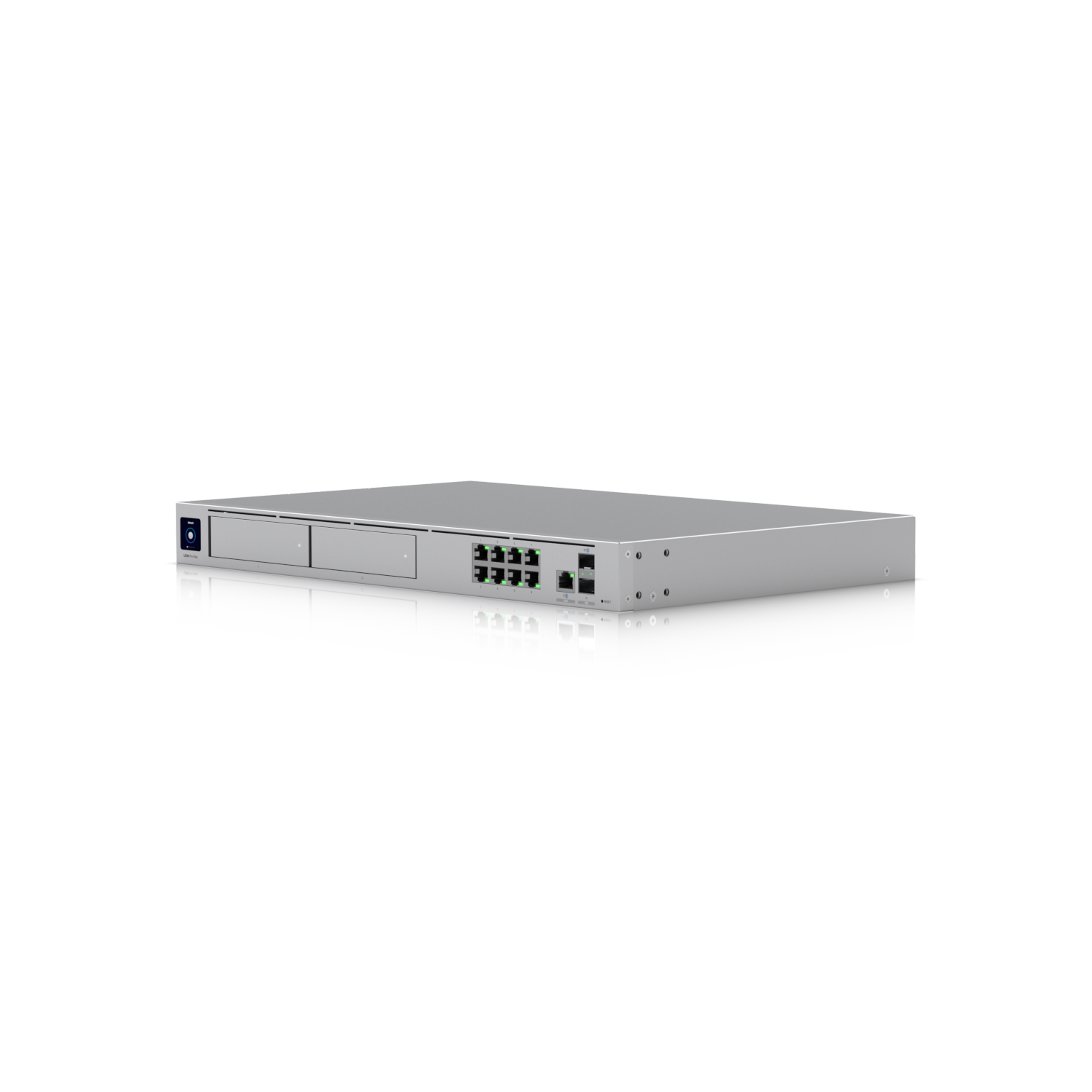

Ubiquiti Dream Machine Pro Max (UDM-Pro-Max)
UniFi Dream Machine Pro Max (UDM-Pro-Max)
The Ubiquiti Dream Machine Pro Max (UDM-Pro-Max) is a high-performance all-in-one UniFi OS console designed for businesses, enterprises, and advanced home networks. It combines a next-generation security gateway, 10G WAN/LAN ports, an 8-port PoE switch, and a built-in UniFi Protect Network Video Recorder (NVR) in a sleek 1U rack-mountable design.
Powered by an ARM Cortex-A57 multi-core processor at 2.0 GHz with 8GB DDR4 RAM and 32GB flash memory, the UDM-Pro-Max delivers high-speed routing, VLAN management, IDS/IPS security, VPN services, and enterprise-grade network performance.
Its UniFi OS enables centralized management of UniFi Network, Protect, Access, and Talk applications, providing seamless control for Wi-Fi access points, IP cameras, VoIP phones, and door access systems. With dual WAN support, 10G fiber connectivity, and cloud/mobile app management, the UDM-Pro-Max ensures full visibility, control, and reliability for professional networks.
Specifications
General
Model: UDM-Pro-Max
CPU: ARM Cortex-A57, 2.0 GHz
RAM: 8 GB DDR4
Flash Memory: 32 GB
Built-in Storage: SSD + HDD bay for UniFi Protect NVR
Form Factor: 1U, rack-mountable
Housing Material: Aluminum, Galvanized steel
Color: Gray
Ports & Interfaces
WAN Ports: 10G SFP+, 2.5G Ethernet
LAN Ports: 10G SFP+ + 8 × GbE PoE
Basic RJ45 Ethernet Ports: 9
2.5G RJ45 Ports: 1
Gigabit Ethernet Ports: 1
SFP Module Slots: 10
SFP+ Slots: 2
Power Connector: DC-in jack
Network & Performance
Switching Layer: L3
QoS Support: Yes
VLAN Support: Yes (IP subnet-based VLAN)
Policy-based Routing: Yes
Ethernet LAN Data Rates: 10/100/1000/2500 Mbit/s
10G Support: Yes
Throughput: 5 Gbit/s
Security & Management
IDS/IPS, Firewall, VPN
DHCP Server & Relay
IGMP Proxy
UniFi OS Management: Cloud, Mobile App, Front LCM touchscreen
Power & Operational
Number of PSU: 1 (RPS support)
Power Consumption: 60 W max
AC Input Voltage: 100–240 V, 50/60 Hz
DC Input Voltage: 12 V
Power Supply Included: Yes
Operating Temperature: -10°C to 40°C
Operating Humidity: 5–95%
Additional Features
LED Indicators: Activity, Error, Link, Ready
Reset Button: Yes
Rack Mount Kit: Included
Cables Included: AC
Compliance: CE, FCC, IC
