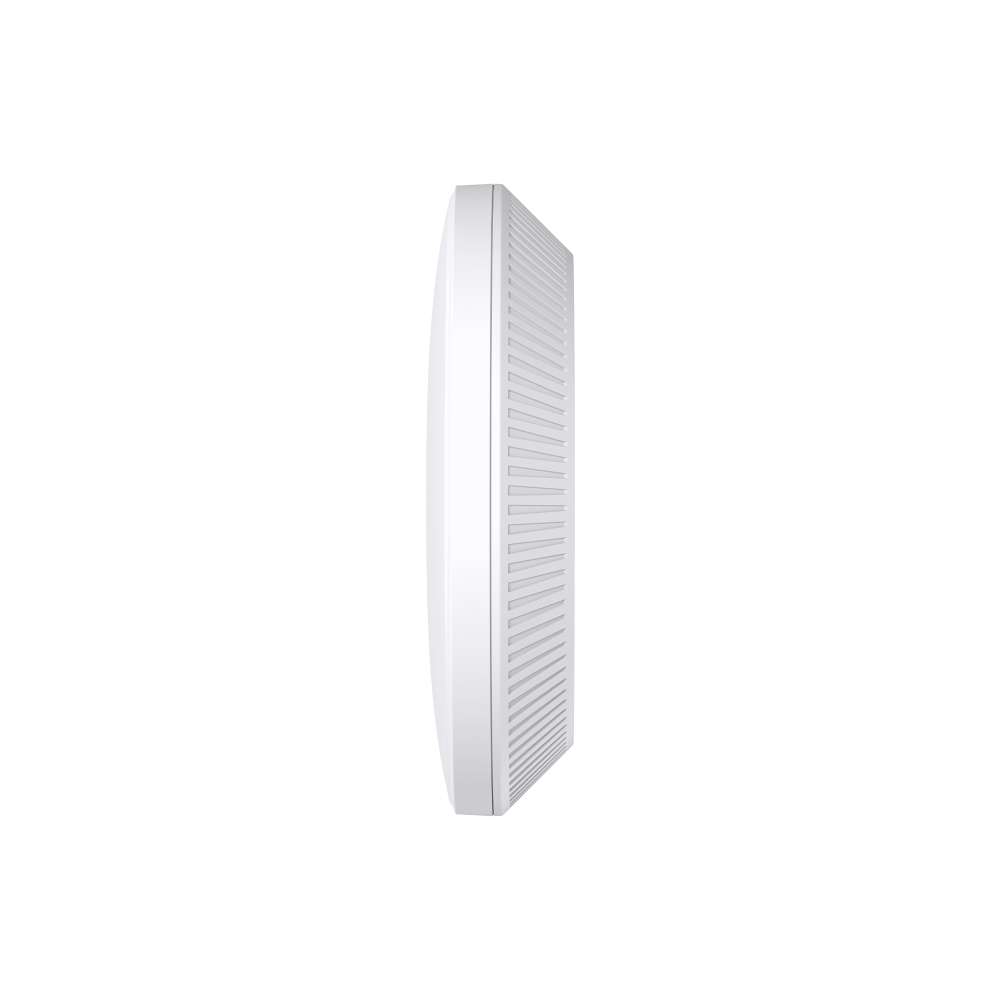

TP-Link TL-EAP723 BE5000 Tri-Band Wi-Fi 7 AP
The TP-Link TL-EAP723 BE5000 Tri-Band Wi-Fi 7 AP brings Wi-Fi 7 power to your office, hotel, school, or retail network. Delivering up to 5.0 Gbps speeds across tri-band frequencies, it provides smooth streaming, video conferencing, and cloud access for hundreds of devices at once.
Designed for effortless installation, the TL-EAP723 BE5000 uses a 2.5 GbE PoE port to combine data and power. With Omada SDN support, IT teams can manage and monitor multiple APs from the cloud or on-site with ease.
Safety and privacy are ensured with WPA3, guest isolation, VLAN tagging, and captive portals. Mountable on ceilings or walls, it blends professional design with enterprise-grade features.
Specifications
| Feature | Details |
|---|---|
| Model | TP-Link TL-EAP723 BE5000 |
| Wireless Standard | Wi-Fi 7 (802.11be), backward compatible with 802.11a/b/g/n/ac/ax |
| Bands | Tri-Band (2.4 GHz + 5 GHz + 5 GHz) |
| Maximum Data Rate | Up to 5.0 Gbps combined |
| Ethernet Port | 1 × 2.5 GbE RJ-45 with PoE (802.3at) |
| Power Options | PoE (802.3at) or 12V DC input |
| Power Consumption | ~19.5 W (PoE), ~16.8 W (DC) |
| Antennas | Internal high-gain antennas (2.4 GHz: ~4 dBi, 5 GHz: ~5 dBi) |
| Coverage Area | ~140 m² (approx. 1,500 ft²) |
| Concurrent Clients | 250+ |
| Wireless Features | 4K-QAM, OFDMA, Multi-RUs, Band steering, Load balancing, Beamforming, Mesh, Seamless roaming, up to 16 SSIDs |
| Security | WPA3 Personal & Enterprise, VLAN, Rogue AP detection, Captive portal, MAC filtering, RADIUS authentication |
| Management | Omada SDN Cloud/On-Premise, Local management |
| Mounting Options | Ceiling mount, Wall mount, Junction box mount |
| Dimensions | 160 × 160 × 36.7 mm |
| Weight | ~412 g |
| Operating Conditions | 0–40°C; Humidity: 10–90% non-condensing |
| Certifications | CE, FCC, RoHS |
