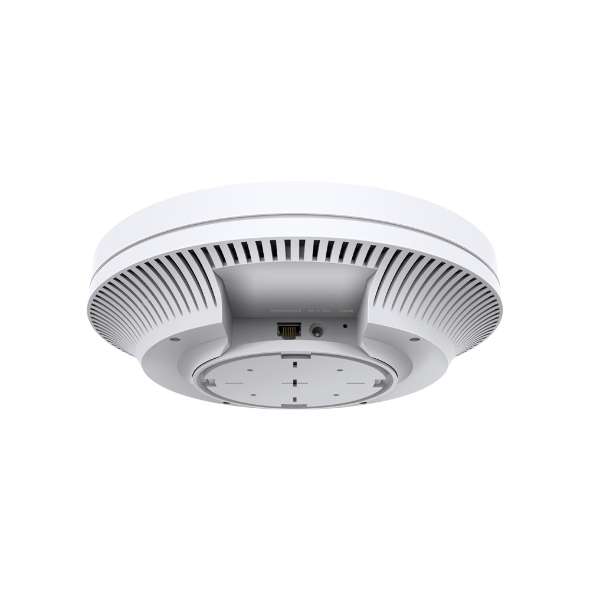

TP-Link AX1800 Ceiling Mount WiFi 6 Access Point – TL-EAP610
Upgrade your business WiFi with the TP-Link AX1800 Ceiling Mount WiFi 6 Access Point – TL-EAP610. Designed for high-performance and reliability, this WiFi 6 access point provides dual-band speeds up to 1.8 Gbps, seamless roaming, MU-MIMO, and advanced security.
Its slim design blends into ceilings or walls, powered via PoE+ or DC adapter. Supporting 250+ concurrent clients and Omada Cloud SDN, it offers centralized control for scalable enterprise networks. Ideal for offices, campuses, and hospitality environments.
Specifications for TP-Link AX1800 Ceiling Mount WiFi 6 Access Point – TL-EAP610
Hardware Features
Interface: 1× Gigabit Ethernet Port
Button: Reset
Power Supply (V4):
802.3af PoE
48 V Passive PoE
12 V/1 A DC (adapter included)
Max Power Consumption: 10.9W (PoE), 9.9W (DC)
Dimensions: 160 × 160 × 33.6 mm
Antenna: Internal Omni Antennas
2.4 GHz: 2 × 4 dBi
5 GHz: 2 × 5 dBi
Mounting: Ceiling / Wall / Junction Box (kits included)
Wireless Features
Coverage: 115㎡ (1250 ft²)
Concurrent Clients: 250+
Standards: IEEE 802.11ax/ac/n/g/b/a
Frequency: 2.4 GHz & 5 GHz
Signal Rate:
5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps
Functions: OFDMA, MU-MIMO, Beamforming, Band Steering, Airtime Fairness, Load Balance, Omada Mesh, Seamless Roaming (802.11k/v/r), Multiple SSIDs (16 total), Wireless Scheduling, QoS, Captive Portal Authentication, VLAN Mapping
Security: WPA3/WPA2/WPA, 802.1X, Access Control, Rogue AP Detection, MAC Filtering
Management Features
Omada App: Yes
Centralized Management: Omada Cloud, Hardware Controller, Software Controller
Cloud Access: Yes (with controller)
Controls: LED ON/OFF, SNMP (v1/v2c/v3), SSH, Syslog, HTTP/HTTPS, Multi-site, VLAN, Zero-Touch Provisioning
Others
Certification: CE, FCC, RoHS
Package Contents: EAP610, Power Adapter, Mounting Kits, Installation Guide
System Requirements: Windows XP–11, Linux
Environment:
Operating Temp: 0–40 ℃
Storage Temp: -40–70 ℃
Humidity: 10–90% (operating), 5–90% (storage)
