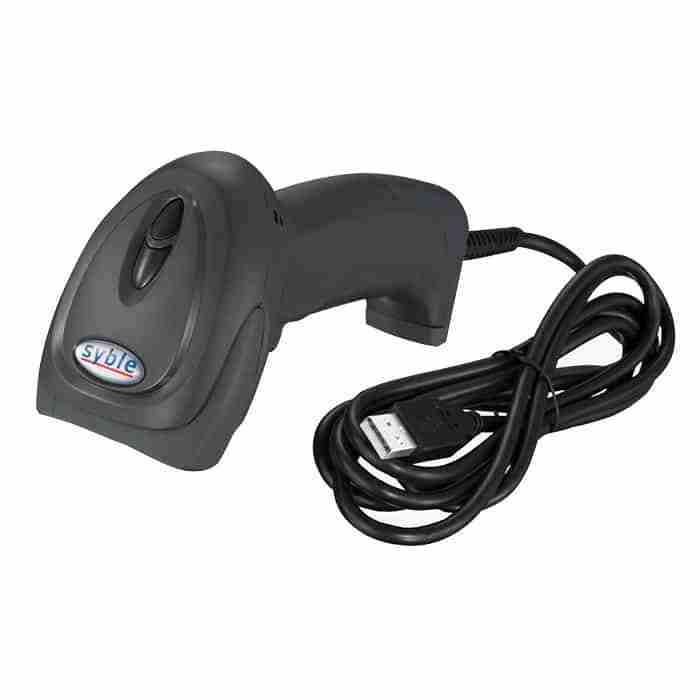

Syble XB-2055 Barcode scanner
- 1D laser bar code scanner for pos system
- Comfortable and convenient to operate
- Light bar code scanner only 170g-good for handheld
- Support manually, automatically and successively scanning
- High scanning speed, over 300 scans per second
- Flexible interface option: USB-HID, USB-COM, PS2, RS232
- Strong 3m drop resistance and high IP54 level
- A cost-effective single-line laser scanner with good performance
- Affordable price while beating other low-cost brands with its better performance
- Provides faster scanning, larger depth of field, wider scanning angle and nearly zero error rates
- 32-bit processor, High decoding ability for easily reading poorly printed and low quality barcodes
- “Plug-and-play” with “no extra setting” enables quick integration with various office devices
Technical Specifications
| Performance Parameters | |
| Light Sources | 650nm laser (safe visible laser diode) |
| Decoded Capability | EAN-8, EAN-13, UPC-E, CODE39, CODE93, CODE128, Codebar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, China Post Code and all 1D barcodes |
| Performanceparameters | Description |
| Light Source: | Visible Laser diode ,650nm |
| Scan rate: | 300scans per second |
| Scanning Angle: | ±55°±65°±30°(left&right, front&back, turn) |
| Scanning wideth: | 30mm@ scanning window 220mm@200mm |
| Scanning type: | Single-line |
| Resolution: | 0.1mm(4mil)at pcs 0.9 |
| Depth of scanning field: | 0-280mm(0.33mm.PCS 90%) |
| Print Contrast Minimum: | 30%,minimum reflective difference(@650nm) |
| Indicator light: | LED DIODE |
| Interface Support | USB,PS2,RS232 |
| Minimum Resolution: | 3mil |
| Pysical Charateristic | Description |
| Voltage: | DC 5V±1% |
| Current: | 85mA(Operating mode),36mA(Quiescent current) |
| Dimensions: | L83mm*W70mm*H172mm |
| Weight: | 205g(include the cable) |
| USB: | 2M(Can not remove) |
| Housing Materials: | ABS+PC |
| User Environment: | |
| Operating Temperature: | -10°~50° |
| Storage Temperature: | -40°~70° |
| Operating Humdity: | 5~95% relative humidity,non-condensing |
| Environment luminance: | 5,000 Lux Max(Fluorescence) |
| IP Level: | IP54 |
| Drop Specification: | withstands multiple 3m drops to concrete |
| Safe: | |
| EMI/RFI: | FCC class A and CE |
| Laser safety: | CDRH class 2 laser product |
| Decode Capability: | UPC-A,UPC-E,EAN-13,EAN-8,Code 39,code128, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5 ,Codabar, EAN 128,M ,China Post code,ect. |
| Certificate | RoHS,CE,FC |
