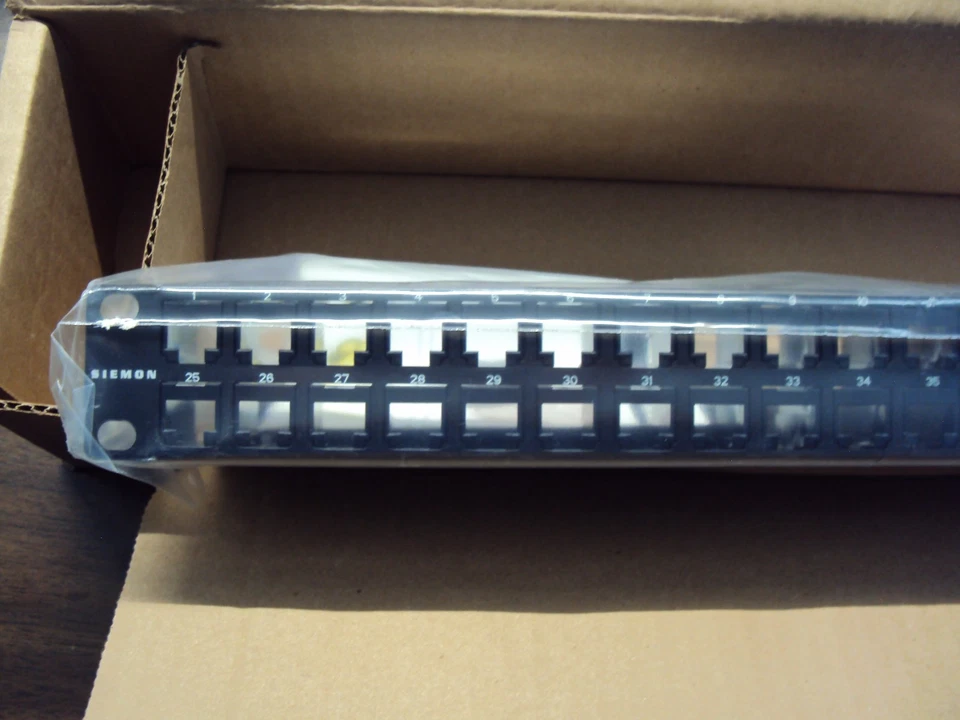

The Siemon Z6AS‑PNL‑U48K Z‑MAX 48‑Port 6A Shielded Patch Panel is a high‑performance network component designed for structured cabling systems in data centers, server rooms, and enterprise networks. Built to support shielded twisted‑pair (STP) cabling and to deliver exceptional signal integrity, this 1U‑rack‑mount panel provides organized connectivity for up to 48 network ports.
Engineered with precision and durability, the Z‑MAX series patch panel offers robust Category 6A shielded performance, ensuring reduced crosstalk and superior EMI/RFI protection in high‑density environments. Its durable black housing and standardized 19‑inch rack form factor make installation and management easy while maintaining a clean, professional network setup.
Ideal for high‑speed Gigabit and 10G Ethernet applications, this 48‑port panel simplifies cable management and improves overall network reliability.
Standards Compliance
- ANSI/TIA-568-C.2
- ISO/IEC 11801 Ed 2.2
- ETL Tested
- IEC 60603-7
- IEC 60603-7-51
- IEEE 802.3an
- IEEE 802.3af (PoE)
- IEEE 802.3at (PoE+)
- ANSI/TIA-1096-A
Part Numbers
- Fixed Cable Managers
- Z6AS-PNL(X)-24K (Picture) Z-MAX 24 PORT CATEGORY 6A SHIELDED PATCH PANEL KIT, 1 RMS, BLACK, WITH JACKS
- (X) Panel Style: BLANK = Flat, A = Angled
- Z6AS-PNL(X)-U48K (Picture) Z-MAX 48 PORT CATEGORY 6A SHIELDED PATCH PANEL KIT, 1 RMS, BLACK, WITH JACKS
- (X) Panel Style: BLANK = Flat, A = Angled
- ZS-PNL(X)-24E Z-MAX 24 PORT SHIELDED PATCH PANEL 1 RMS, BLACK, EMPTY
- (X) Panel Style: BLANK = Flat, A = Angled
- ZS-PNL(X)-U48E Z-MAX 48 PORT SHIELDED PATCH PANEL 1 RMS, BLACK, EMPTY
- (X) Panel Style: BLANK = Flat, A = Angled
- Removable Cable Managers
- Z6AS-P(X)-24 Z-MAX 24-Port, CAT 6A Shielded patch panel with removable wire manager kit, 1 RMS, Black, with Jacks
- (X) Panel Style: F = Flat, A = Angled
- Z6AS-P(X)-48 Z-MAX 48-Port, CAT 6A Shielded patch panel with removable wire manager kit, 1 RMS, Black, with Jacks
- (X) Panel Style: F = Flat, A = Angled
- ZS-P(X)-24 Z-MAX 24-Port UTP Patch Shielded panel with removable wire manager, 1RMS, Black, Empty
- (X) Panel Style: F = Flat, A = Angled
- ZS-P(X)-48 Z-MAX 48-Port UTP Patch Shielded panel with removable wire manager, 1RMS, Black, Empty
- (X) Panel Style: F = Flat, A = Angled
- Z-MAX 6A shielded patch panels – accessories
- Z-BL-01 Z-MAX panel blank, bag of 10 black
- Z-PNL-PL24 Patch panel label sheet, numbered 1 to 24, bag of 7 (16 labels/sheet)
- Z-PNL-PL48 Patch panel label sheet, numbered 25 to 48, bag of 7 (16 labels/sheet)
- Z-PNL-PS Patch panel label holder, bag of 25
- Z6A-SP Z-MAX 6A shielded panel outlet
