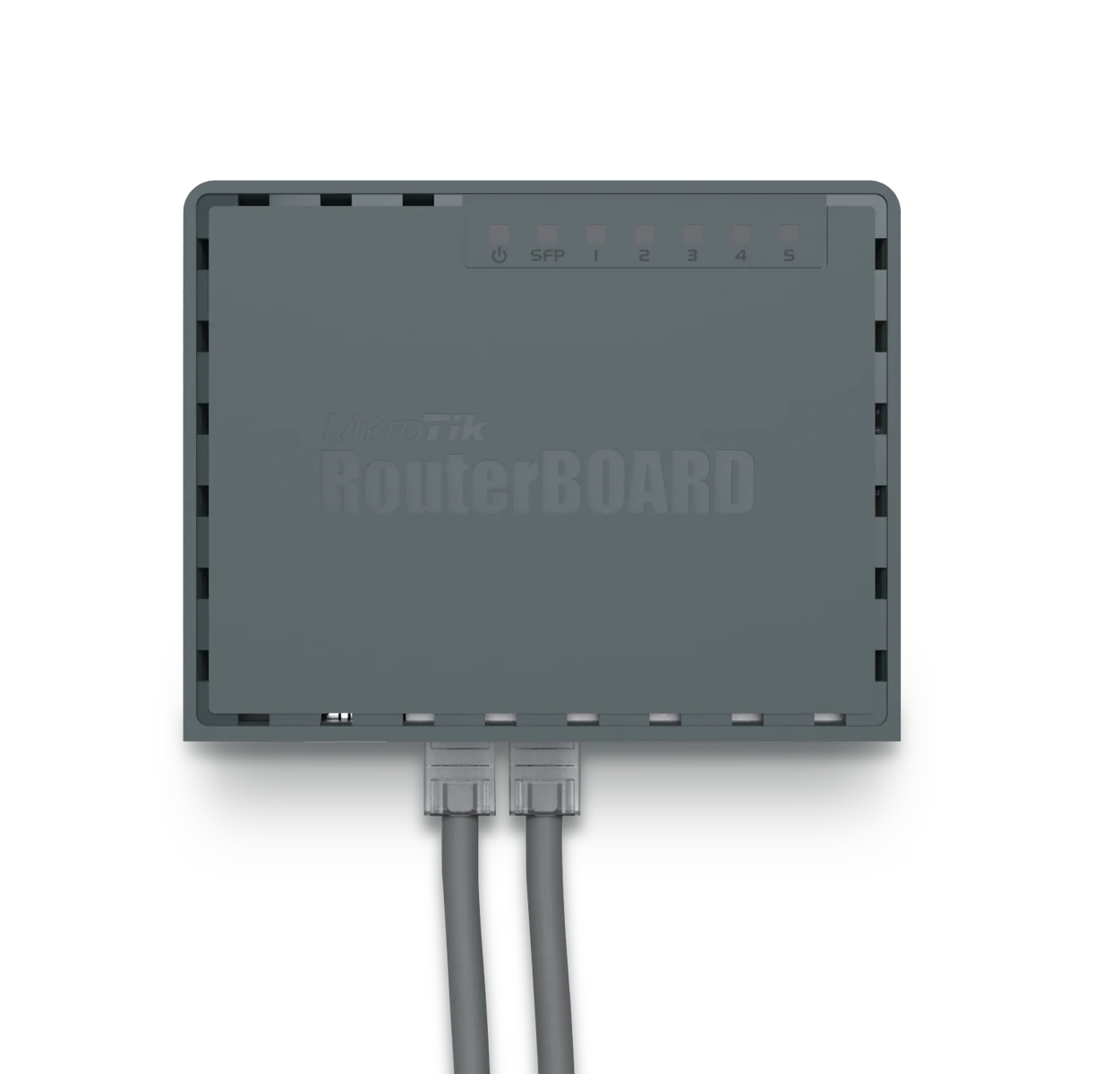

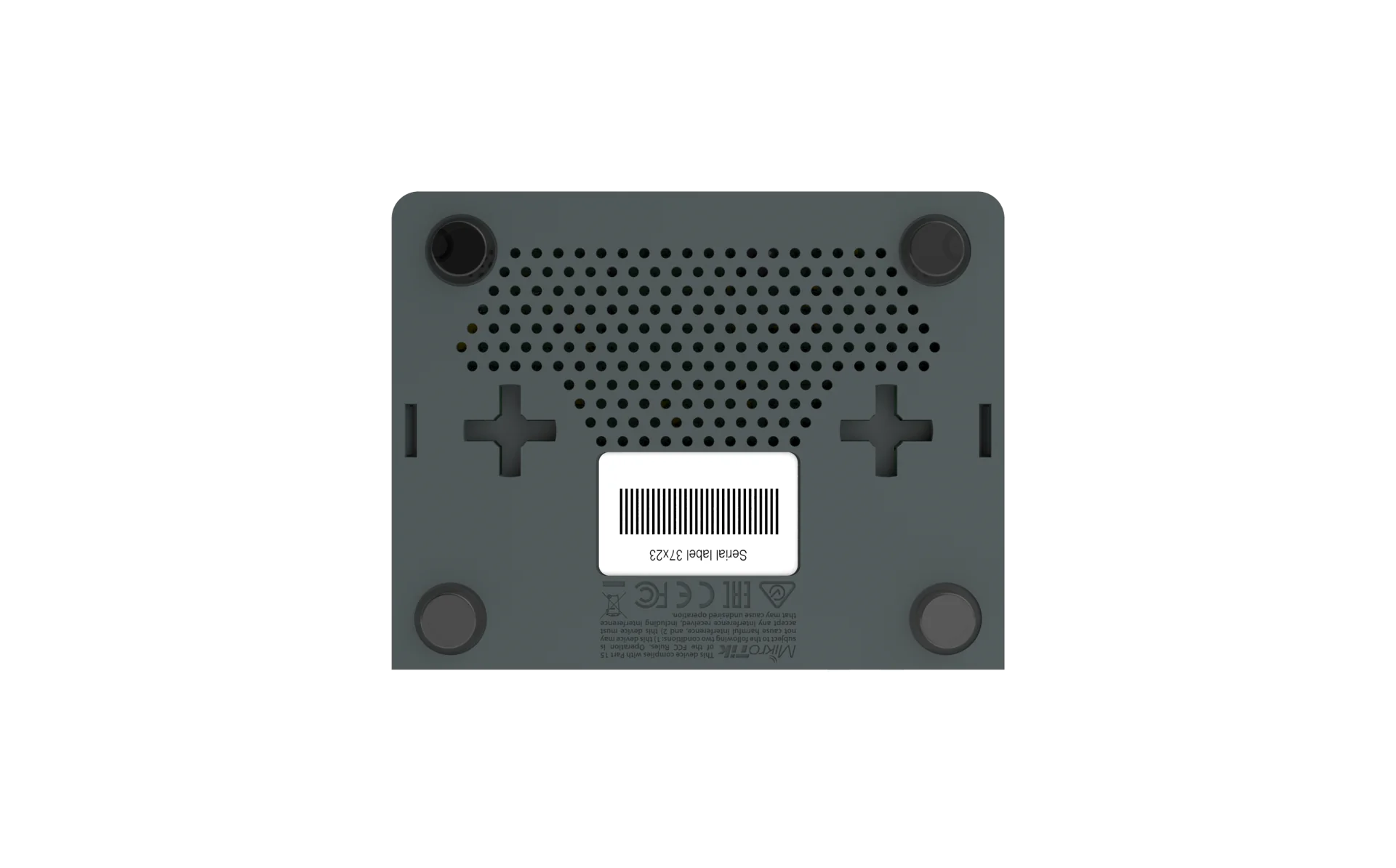

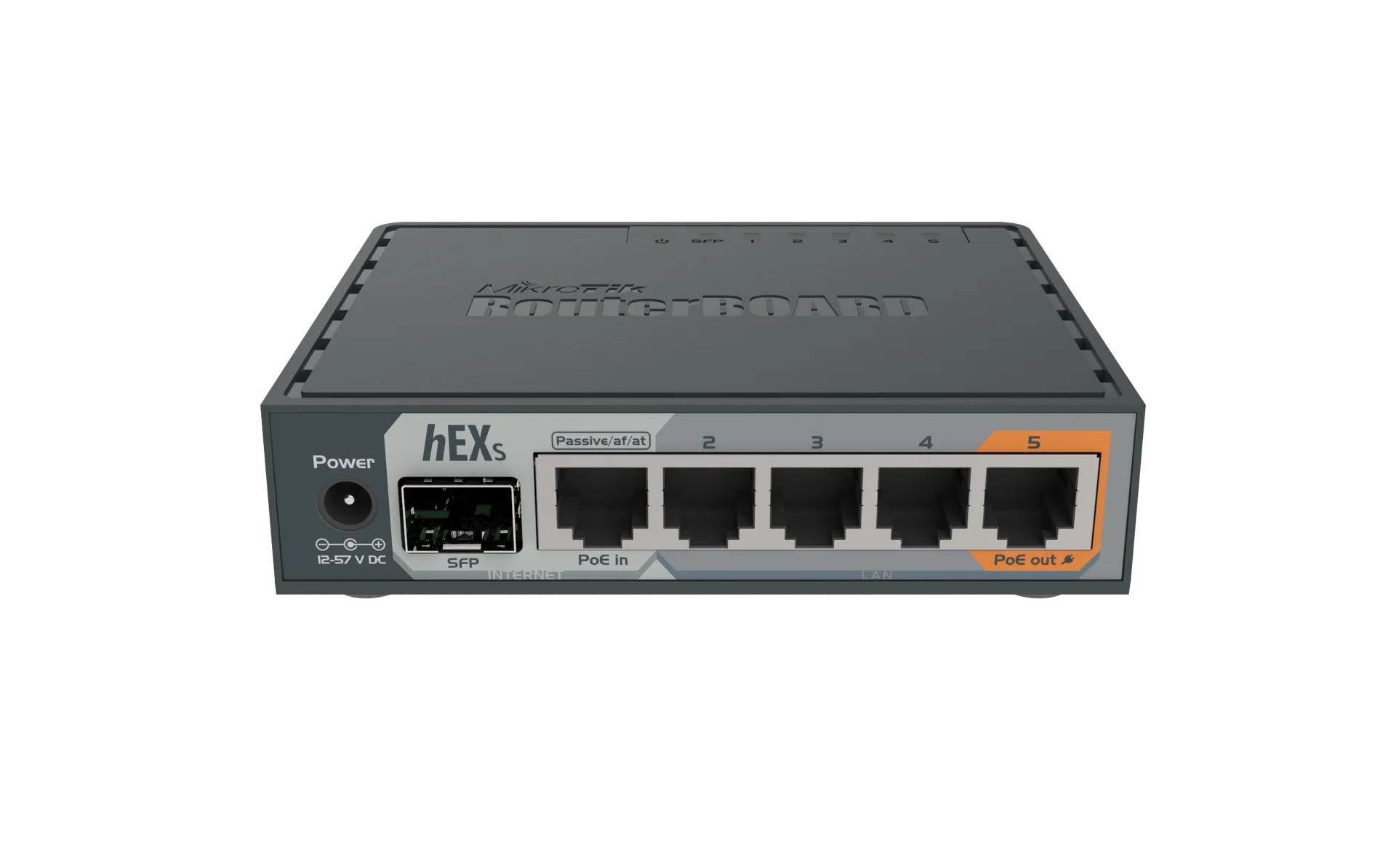

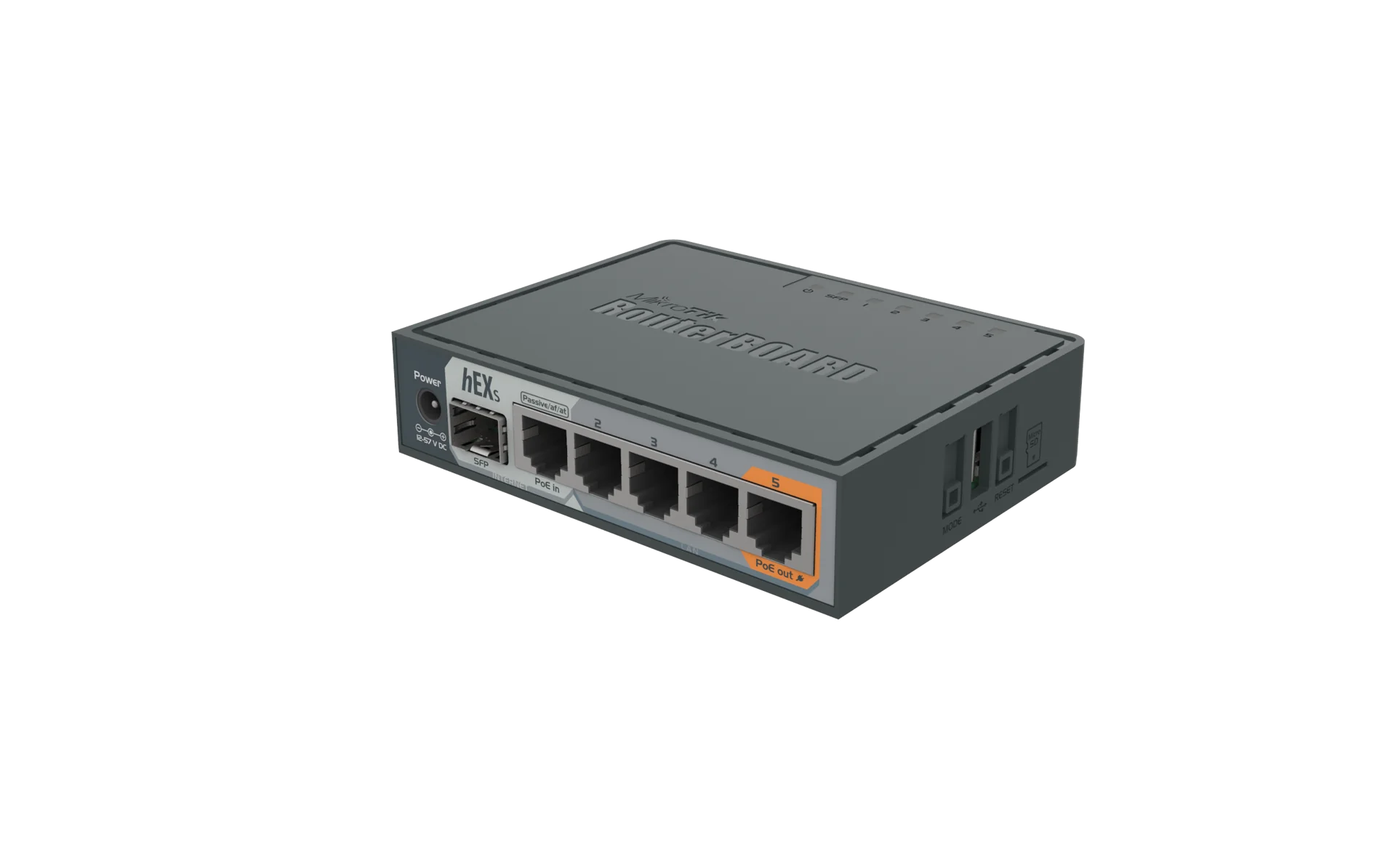

Mikrotik RB760iGS hEX S 5x Gigabit Swicth
The MikroTik RB760iGS hEX S 5× Gigabit Router is a professional-grade wired router designed for users who require reliable and high-speed network performance without wireless functionality.
It features 5 Gigabit Ethernet ports for fast LAN connectivity and a 1 SFP port for fiber uplink integration, making it suitable for modern ISP and enterprise network environments. The router also includes USB 2.0 support, allowing connection of storage devices or LTE modems for additional flexibility.
Powered by a dual-core 880 MHz processor and 256MB RAM, the hEX S delivers strong performance for routing, firewalling, VPN tunnels, bandwidth shaping, and VLAN management. It runs MikroTik RouterOS Level 4, giving full control over advanced networking configurations.
A key feature is Passive PoE output on Ethernet port 5, which can power compatible devices such as access points or switches. The device is also compact, fanless, and energy-efficient, making it ideal for continuous operation in professional environments.
Key Features
- 5 × Gigabit Ethernet LAN ports
- 1 × SFP fiber port (1.25Gbps)
- Dual-core 880 MHz CPU
- 256MB RAM for stable performance
- USB 2.0 port for storage or LTE modem
- Passive PoE output on Ether5
- RouterOS Level 4 license
- Advanced firewall, VPN & VLAN support
- Compact fanless design
Technical Specifications
- Model: RB760iGS (hEX S)
- Architecture: MIPSBE
- CPU: Dual-core 880 MHz
- RAM: 256MB
- Storage: 16MB Flash
- Ethernet Ports: 5 × 10/100/1000 Mbps
- SFP Port: 1 × 1.25Gbps
- USB Port: 1 × USB 2.0
- PoE In: Passive PoE (12–57V)
- PoE Out: Passive PoE on Ether5
- Max Power Consumption: ~24W
- Operating System: MikroTik RouterOS
- Operating Temperature: -40°C to +70°C
- Cooling: Passive (fanless)
Applications
- Small office networks
- ISP installations (CPE router)
- CCTV surveillance systems
- Home high-speed routing
- Fiber uplink connectivity
- VPN and remote access setups
