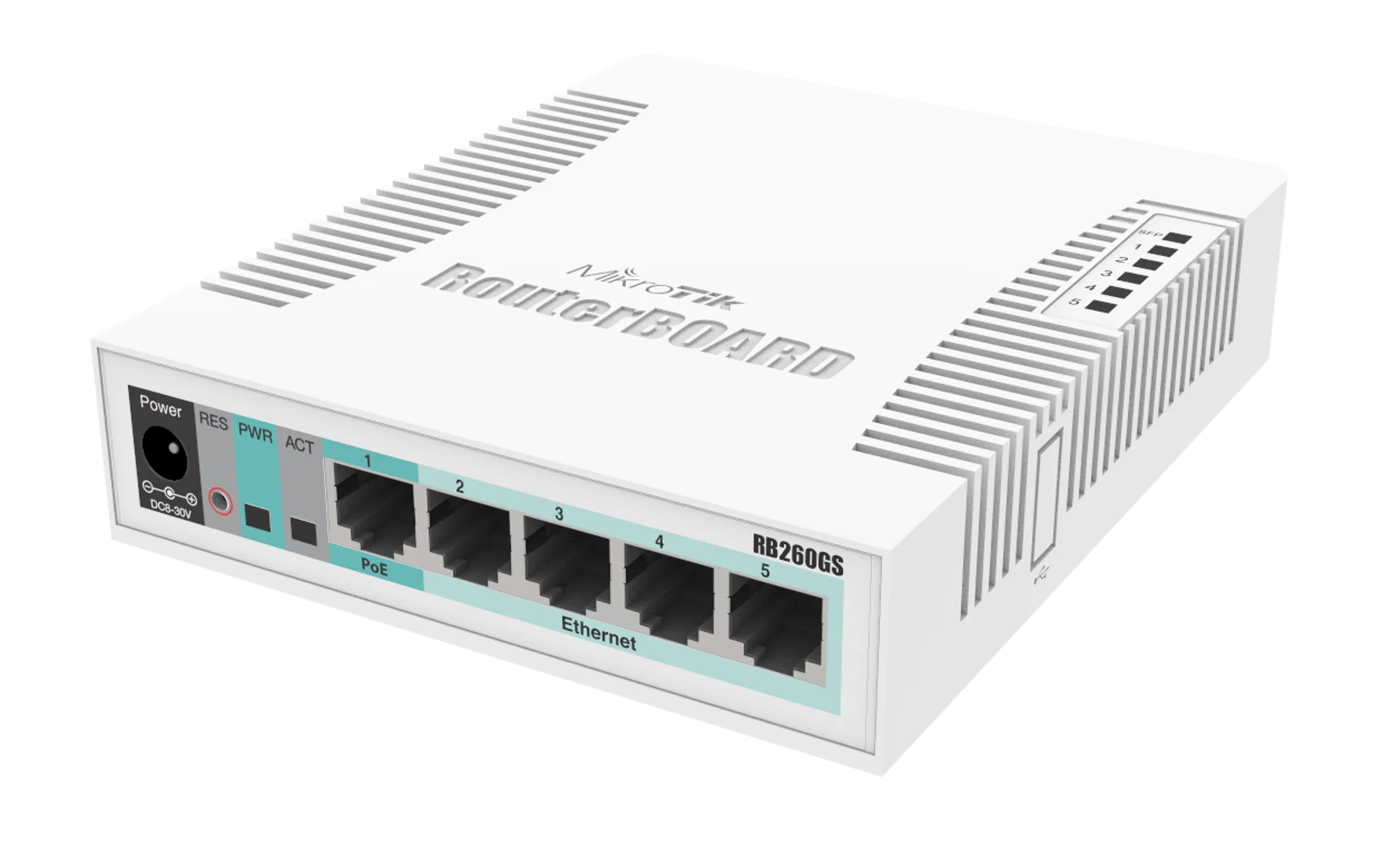

MikroTik RB260GS CSS106-5G-1S
The MikroTik RB260GS (CSS106-5G-1S) is a reliable and cost-effective smart switch designed for small office, home, and light enterprise networking environments. It combines 5 Gigabit Ethernet ports with a 1 × SFP slot for fiber uplink, allowing flexible network expansion and high-speed backbone connectivity.
Running on MikroTik SwOS (SwitchOS), this device offers a simple web-based interface for configuration and monitoring. It supports essential Layer 2 switching features such as VLAN management, MAC filtering, port-to-port forwarding, traffic mirroring, and bandwidth limiting.

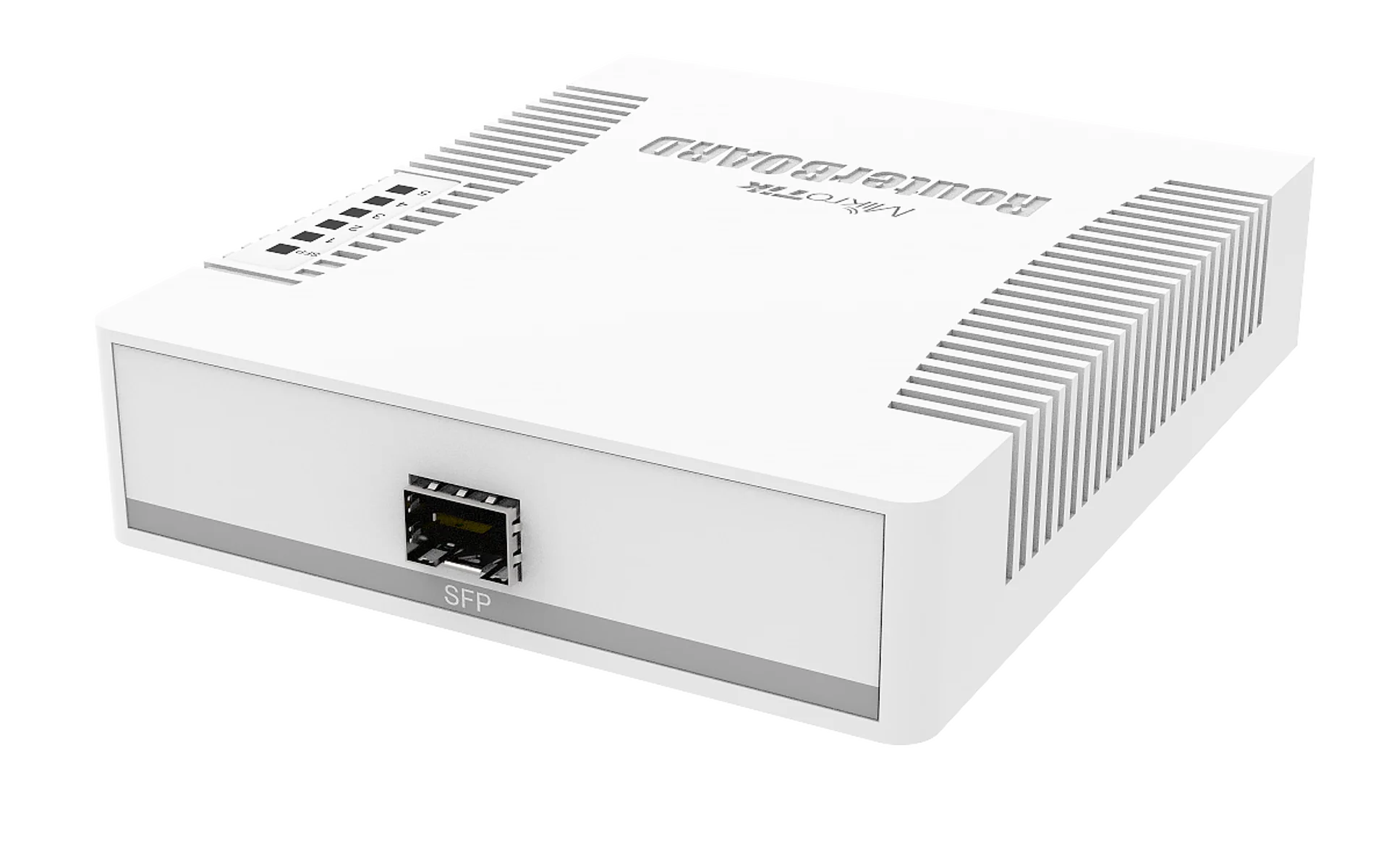

he RB260GS is a small SOHO switch. It has five Gigabit Ethernet ports and one SFP cage powered by an Atheros Switch Chip.
Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)
It is powered by an operating system designed specifically for MikroTik Switch products – SwOS.
Key Features
- 5 × Gigabit Ethernet ports
- 1 × SFP fiber uplink port
- SwOS web-based management system
- VLAN support for network segmentation
- MAC filtering and port isolation
- Bandwidth control and traffic shaping
- Port mirroring for monitoring
- Low power consumption (fanless design)
- Compact desktop form factor
Technical Specifications
- Model: RB260GS (CSS106-5G-1S)
- Architecture: Atheros switch chipset
- CPU: Embedded switch chip (QCA8337)
- RAM: 128 KB flash memory system
- Ethernet Ports: 5 × 10/100/1000 Mbps
- SFP Port: 1 × Gigabit SFP cage
- Operating System: MikroTik SwOS
- Management: Web browser interface
- Power Input: 11–30V DC / Passive PoE-in
- Max Power Consumption: ~5W
- Cooling: Passive (fanless)
- Operating Temperature: -20°C to +70°C
- Dimensions: 113 × 139 × 28 mm
Applications
- Small office and home networks
- CCTV and surveillance systems
- ISP customer edge switching
- Fiber uplink expansion
- Retail and business networks
- Basic VLAN segmentation setups
