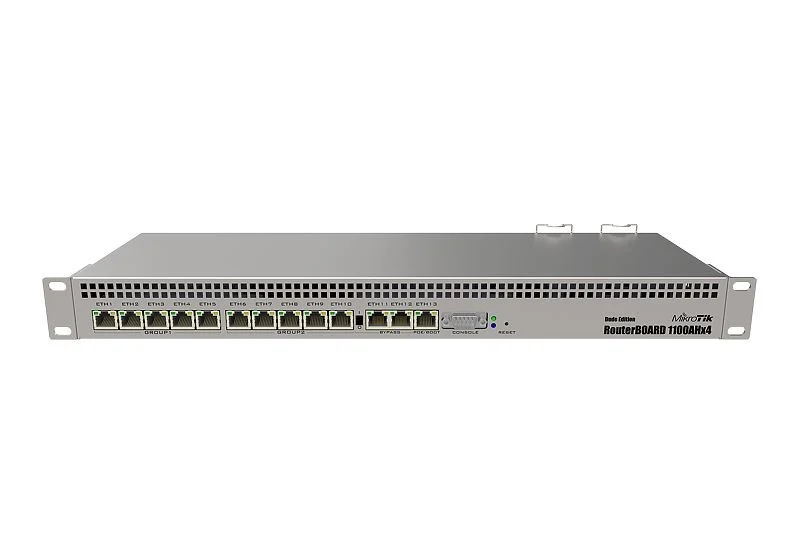

Buy Mikrotik RB1100AHx4 Dude Edition 1U rackmount router from Brighttech Networks.
The MikroTik RB1100AHx4 Dude Edition 1U Rackmount Router is designed to deliver enterprise-class routing, VPN security, and centralized network monitoring. Powered by the Annapurna Alpine AL21400 quad-core ARM processor running at 1.4 GHz, it provides routing throughput of up to 7.5 Gbps while supporting hardware-accelerated IPsec encryption of up to 2.2 Gbps, making it ideal for high-performance business and ISP environments.
Built in a durable 1U rackmount chassis, the router includes 13 Gigabit Ethernet ports, dual failover AC power supplies, support for 802.3af/at PoE input, and -48V DC telecom power, ensuring maximum uptime in mission-critical installations.

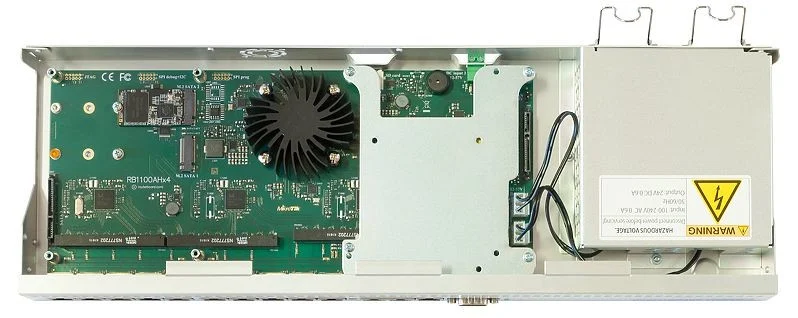

The Dude Edition comes with a 60 GB M.2 SATA SSD pre-installed for hosting The Dude network monitoring database. It also provides two SATA III connectors, two M.2 SATA slots, and a microSD slot for expanding storage used for logs, proxy cache, and other RouterOS applications.
Powered by RouterOS Level 6, the router supports advanced enterprise networking features including dynamic routing, BGP, OSPF, MPLS, VLANs, VPNs, QoS, firewall, hotspot, load balancing, and centralized network monitoring.
Key Features
- Enterprise-grade 1U rackmount router
- Annapurna Alpine AL21400 quad-core ARM CPU (1.4 GHz)
- 13 × Gigabit Ethernet ports
- Hardware IPsec encryption acceleration
- Up to 7.5 Gbps routing throughput
- Pre-installed 60 GB M.2 SATA SSD
- Designed to host The Dude monitoring platform
- Dual SATA III connectors for additional storage
- Two M.2 SATA expansion slots
- microSD card slot
- Dual redundant AC power supplies
- Passive PoE & 802.3af/at PoE input support
- -48V DC telecom power compatibility
- RouterOS Level 6 license included
- RS232 serial console port
- Rackmount-ready metal enclosure
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | MikroTik RB1100AHx4 Dude Edition 1U Rackmount Router |
| Brand | MikroTik |
| Model | RB1100Dx4 (RB1100AHx4 Dude Edition) |
| Form Factor | 1U Rackmount |
| CPU | Annapurna Alpine AL21400 |
| CPU Architecture | ARM 32-bit |
| CPU Cores | 4 |
| CPU Frequency | 1.4 GHz |
| CPU Threads | 4 |
| RAM | 1 GB |
| Flash Storage | 128 MB NAND |
| Included Storage | 60 GB M.2 SATA SSD |
| Ethernet Ports | 13 × 10/100/1000 Gigabit Ethernet |
| Switch Chip | RTL8367 |
| RouterOS License | Level 6 |
| Operating System | RouterOS |
| Hardware IPsec | Yes |
| Maximum Routing Throughput | Up to 7.5 Gbps |
| IPsec Throughput | Up to 2.2 Gbps (AES-128) |
| SATA Ports | 2 × SATA III |
| M.2 Slots | 2 × SATA (2242/2260/2280 M-Key) |
| microSD Slot | Yes |
| Serial Console | RS232 |
| Power Inputs | Dual 100–240V AC IEC, 20–57V DC Telecom (-48V supported), PoE |
| PoE Input | Passive PoE & 802.3af/at (Ethernet Port 13) |
| Maximum Power Consumption | 25 W |
| Dimensions | 443 × 148 × 44 mm |
| Protection Rating | IP20 |
| Operating Temperature | -40°C to +70°C |
| MTBF | Approximately 200,000 hours at 25°C |
Applications
The MikroTik RB1100AHx4 Dude Edition 1U Rackmount Router is ideal for:
- Internet Service Providers (ISPs)
- Enterprise networking
- Corporate offices
- Data centers
- VPN gateways
- Firewall appliances
- BGP and OSPF routing
- MPLS deployments
- Centralized network monitoring with The Dude
- Universities and campus networks
- Server rooms
- High-performance routing environments
Package Includes
- MikroTik RB1100AHx4 Dude Edition 1U Rackmount Router
- Pre-installed 60 GB M.2 SATA SSD
- Rack Mount Ears
- SATA Cables
- 2 × IEC Power Cords
- Mounting Screw Kit
- Quick Installation Guide
