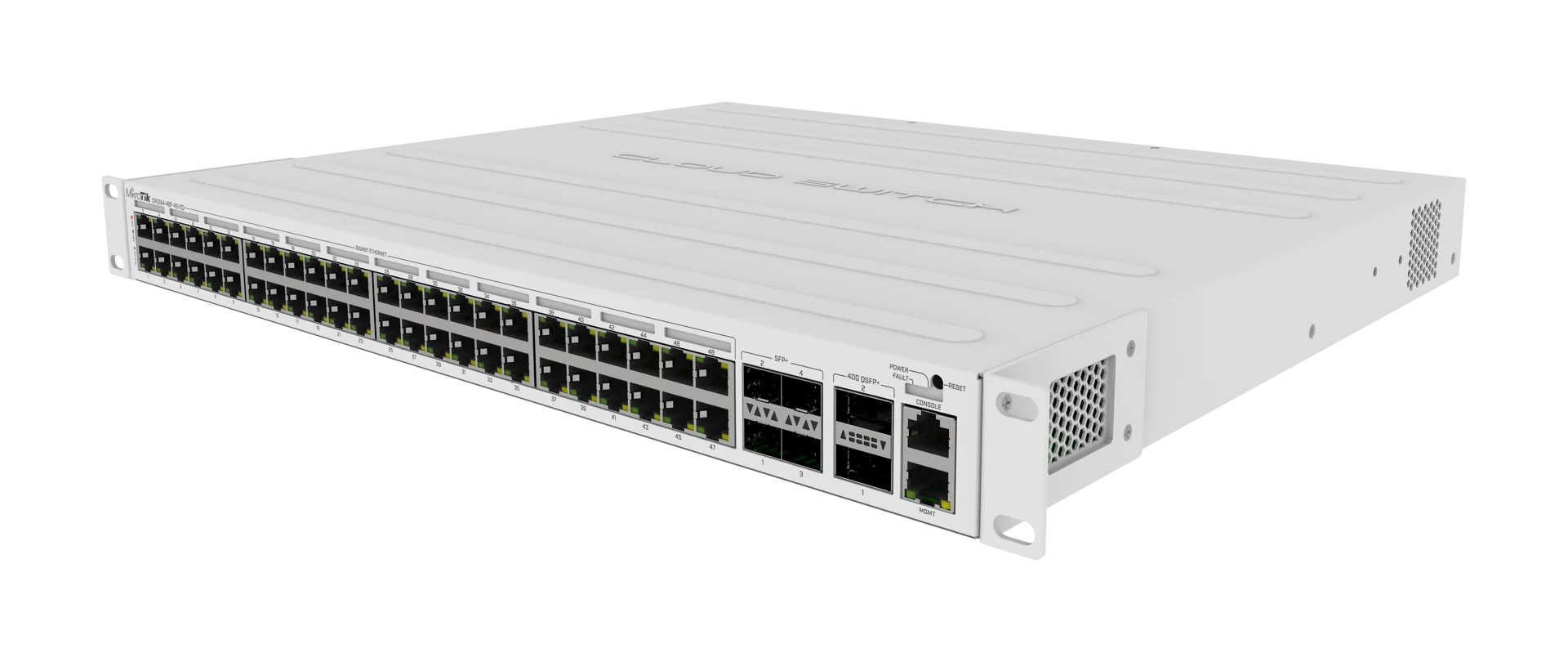

MikroTik CRS354-48P-4S+2Q+RM Cloud Router Switch
The MikroTik CRS354-48P-4S+2Q+RM Cloud Router Switch is a high-capacity Layer 2/Layer 3 managed switch built for demanding enterprise and service provider environments. With 48 Gigabit Ethernet ports supporting PoE-out, this switch can power IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices directly through the network cable.
For high-speed uplinks and backbone connectivity, the switch includes 4 × 10G SFP+ ports and 2 × 40G QSFP+ ports, making it ideal for network aggregation, data center interconnects, and high-bandwidth applications. The CRS354-48P-4S+2Q+RM supports both RouterOS v7 and SwitchOS, allowing administrators to choose between advanced routing functionality and streamlined switch management.
If you are looking for a single switch that will put your network setup ahead of the curve and power all the necessary devices – look no further! The new CRS354-48P-4S+2Q+RM is an effective and adaptable rackmount solution for managing networks in the most demanding environments. Unlike many other switches out there, our products are made with the system administrator in mind.
This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. All 48 Ethernet ports offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing, making this switch the easiest solution to power even the largest setups. We have included a mighty power supply that can provide 750 W of power – this switch can handle a lot. And there is a special bracket for easy cable management.
CRS354-48P-4S+2Q+RM is extremely functional, and it has the best price-point on the market – it will make the perfect addition to a professional setup.
Built in a 1U rackmount chassis with active cooling and redundant network capabilities, the CRS354-48P-4S+2Q+RM provides reliable performance and scalability for modern networking requirements.
Key Features
- 48 × Gigabit Ethernet ports with PoE-out
- 4 × 10G SFP+ uplink ports
- 2 × 40G QSFP+ uplink ports
- Supports RouterOS v7 and SwitchOS
- Up to 700W total PoE budget
- 802.3af/at and Passive PoE support
- Advanced VLAN, QoS, ACL, and LACP support
- MLAG support for redundancy
- Hardware offloaded switching
- Rackmount 1U design
- Enterprise and ISP-grade performance
Technical Specifications
| Specification | Details |
|---|---|
| Model | CRS354-48P-4S+2Q+RM |
| Product Type | Cloud Router Switch |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU Frequency | 650 MHz |
| CPU Cores | 1 |
| RAM | 128 MB |
| Storage | 32 MB Flash |
| Ethernet Ports | 48 × 10/100/1000 Mbps |
| PoE-Out Ports | 48 Ports |
| PoE Standards | Passive PoE, 802.3af/at |
| SFP+ Ports | 4 × 10Gbps |
| QSFP+ Ports | 2 × 40Gbps |
| Switching Chip | Marvell 98DX3257 |
| Operating System | RouterOS v7 / SwitchOS |
| RouterOS License | Level 5 |
| Switching Capacity | 336 Gbps |
| Max Power Consumption | 800W |
| PoE Budget | Up to 700W |
| Cooling | 4 Active Fans |
| Console Port | RJ45 Serial |
| Dimensions | 443 × 382 × 44 mm |
| Form Factor | 1U Rackmount |
| Operating Temperature | -20°C to +60°C |
Applications
- Enterprise network infrastructure
- Large-scale CCTV deployments
- ISP and WISP networks
- Campus and educational networks
- Hospitality and hotel networking
- Data center aggregation
- VoIP phone deployments
- Wireless access point powering
- High-density PoE environments
