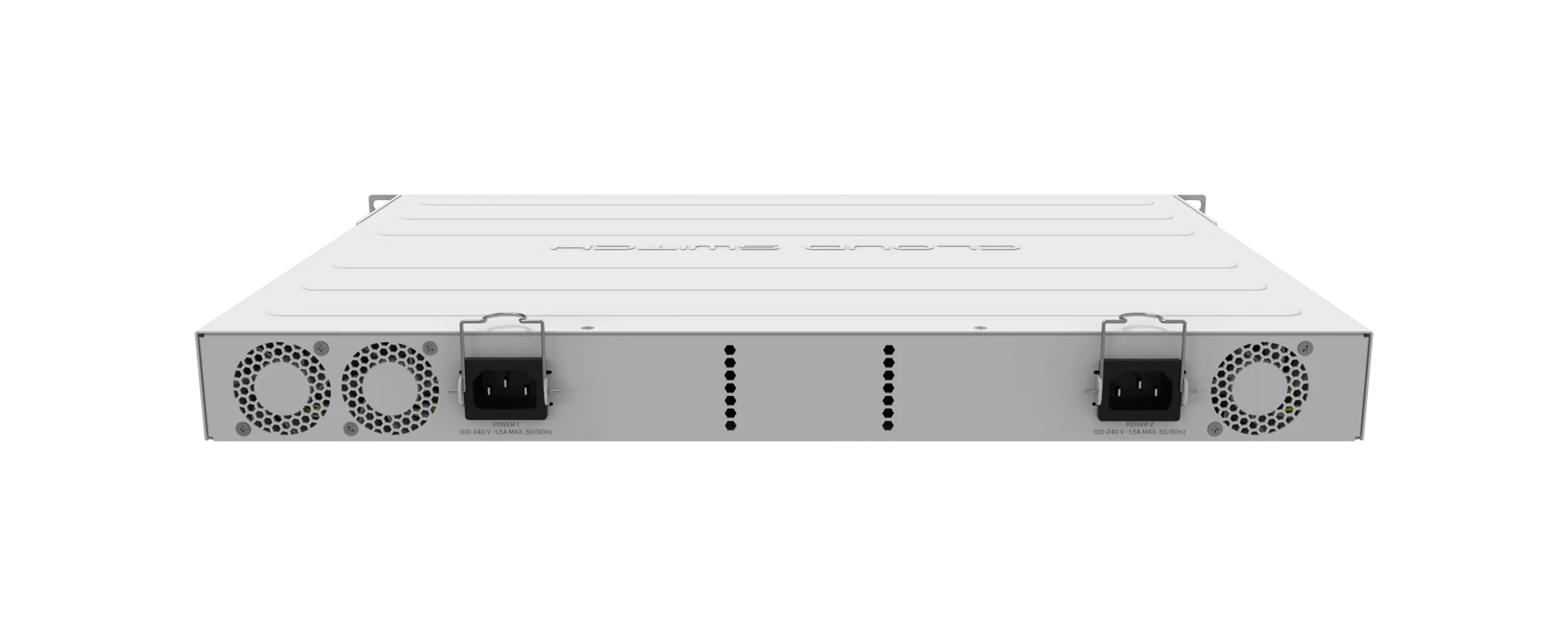

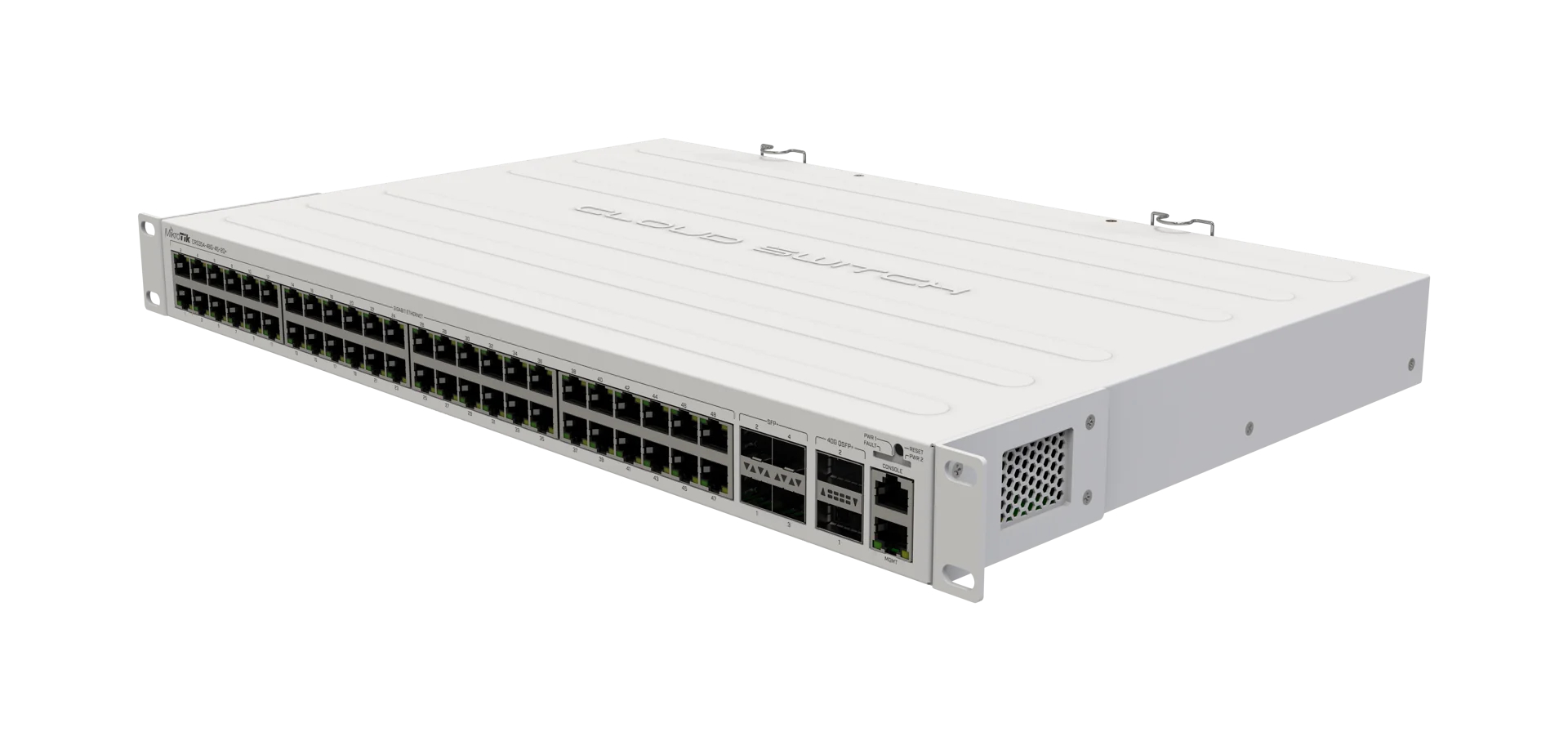

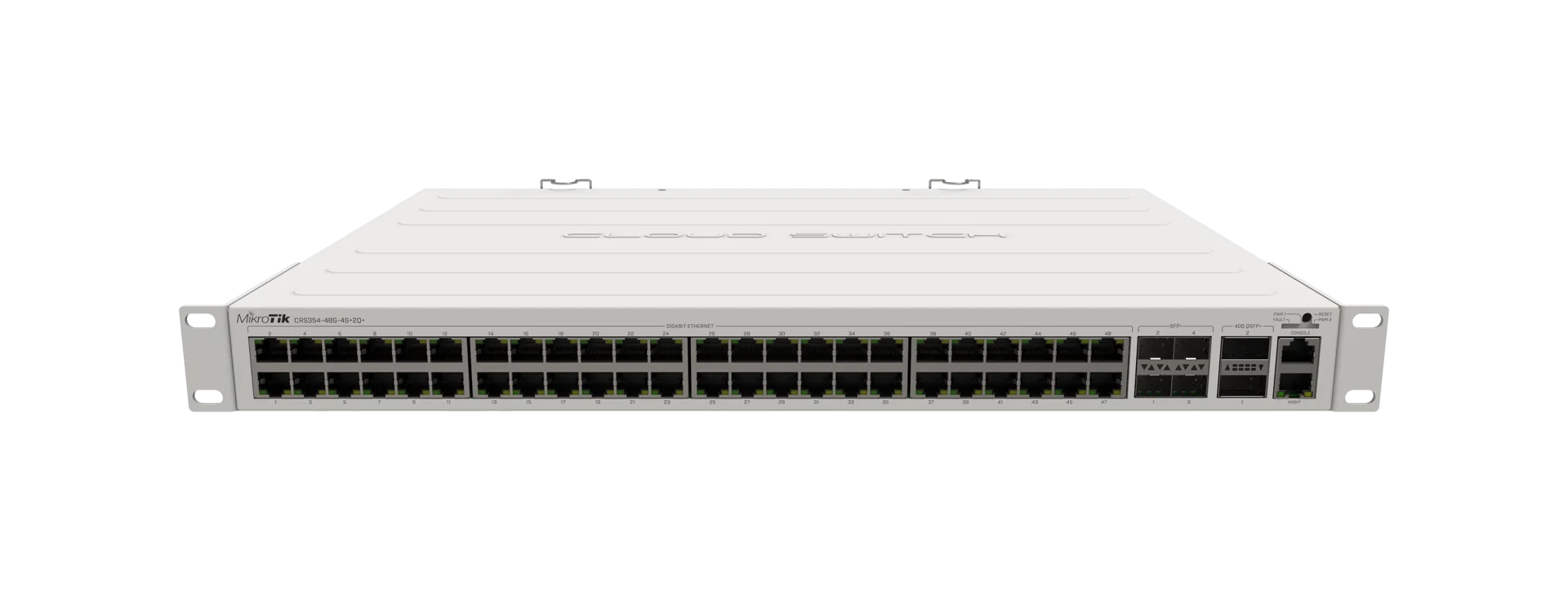

MikroTik Cloud Router Switch (CRS354-48G-4S+2Q+RM)
The MikroTik CRS354-48G-4S+2Q+RM Cloud Router Switch is one of MikroTik’s most powerful rackmount switches, built for demanding network environments such as ISPs, enterprise campuses, data centers, and large business infrastructures.
It features 48 Gigabit Ethernet ports for high-density device connectivity, alongside 4 × 10G SFP+ ports and 2 × 40G QSFP+ ports, making it ideal for high-speed uplinks, server aggregation, and fiber backbone deployments.
The switch delivers a total non-blocking throughput of up to 168 Gbps and a switching capacity of 336 Gbps, ensuring smooth performance even under heavy traffic loads. Its hardware-based switching architecture enables wire-speed forwarding across all ports.
Equipped with 48 Gigabit Ethernet ports, the CRS354 offers extensive connectivity options for a variety of network devices such as workstations, servers, and access points. For higher bandwidth needs, it includes four 10G SFP+ ports and two 40G QSFP+ ports, allowing for fast and seamless communication across different network segments.
The CRS354 runs on MikroTik’s powerful RouterOS, providing an intuitive interface for network configuration and monitoring. Whether you’re setting up VLANs, implementing firewall rules, or analyzing traffic, the system offers all the tools necessary to keep your network secure and efficient.
Specifications
Product Information
Model: CRS354-48G-4S+2Q+RM
Architecture: MIPSBE
CPU: QCA9531, 1 core @ 650 MHz
Switch Chip: 98DX3257
Operating System: RouterOS v7 / SwitchOS (License level 5)
RAM: 64 MB
Storage: 16 MB Flash
Dimensions: 297 x 443 x 44 mm
Mean Time Between Failures (MTBF): ~200,000 hours at 25°C
Operating Temperature: -20°C to 60°C
Price: $599.00
Power Supply
AC Inputs: 2 (100–240V, 50–60 Hz)
PSU Slots: 2
Max Power Consumption: 60 W (50 W without attachments)
Cooling: 3 internal fans
Networking Interfaces
Ethernet Ports: 1 x 10/100 Mbps, 48 x 10/100/1000 Mbps
Fiber Ports: 4 x 10G SFP+, 2 x 40G QSFP+
Peripherals
Console Port: RJ45
Monitoring & Sensors
CPU Temperature Monitor: Yes
PCB Temperature Monitor: Yes
Voltage Monitor: Yes
Certifications
Approvals: CE, EAC, ROHS
IP Rating: IP20
