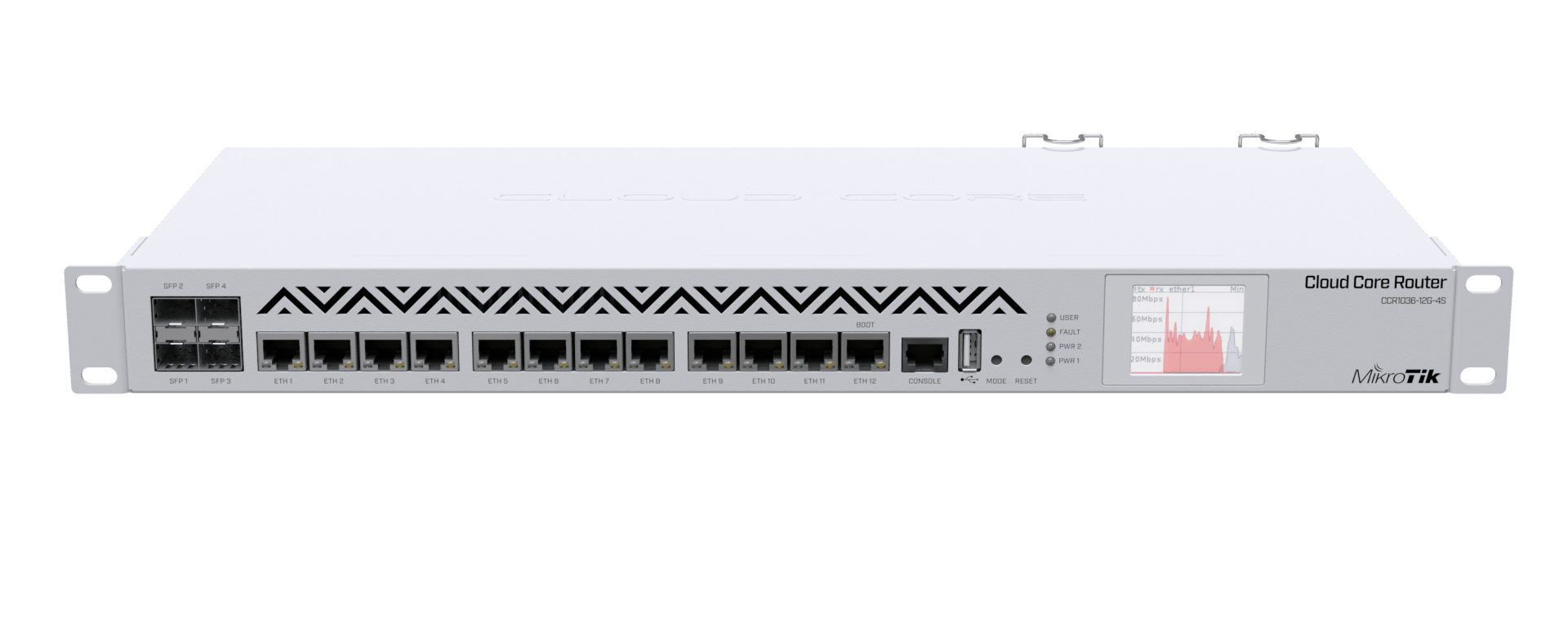

MikroTik CCR1036-12G-4S Router Tile-Gx36 36-Core 1.2GHz
The MikroTik CCR1036‑12G‑4S Router is a high-performance, enterprise-grade cloud core router designed for demanding networks. Powered by a 36-core Tilera Tile-GX36 CPU at 1.2 GHz per core, it delivers robust throughput capable of handling millions of packets per second. With advanced routing, firewall, VPN, MPLS, QoS, and load-balancing features, this router is ideal for ISPs, data centers, and high-demand office environments. Its 1U rackmount design includes 12 Gigabit Ethernet ports, 4 SFP ports, dual power supplies for redundancy, and a touchscreen LCD for monitoring and basic configuration.
Specifications
| Details | |
|---|---|
| Product code | CCR1036-12G-4S |
| Architecture | TILE |
| CPU | TLR4-03680 |
| CPU core count | 36 |
| CPU nominal frequency | 1.2 GHz |
| Dimensions | 355x145x44mm |
| License level | 6 |
| Operating System | RouterOS v6 (64bit) |
| Size of RAM | 4 GB |
| Storage size | 1 GB |
| Storage type | NAND |
| Tested ambient temperature | -20C .. +60C |
| Suggested price | $995.00 |
Powering
| Details | |
|---|---|
| Max Power consumption | 69W |
| Number of AC inputs | 1 |
| AC input range | 100-240 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 12 |
Fiber
| Details | |
|---|---|
| SFP DDMI | Yes |
| SFP ports | 4 |
Peripherals
| Details | |
|---|---|
| Serial port | RS232 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | microUSB type AB |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
