Huawei eKIT Wireless AP160 Wi-Fi 6 In-Wall
The Huawei eKitEngine AP160 is an elegant, compact wall-plate Wi-Fi 6 access point built for high-density environments. It combines powerful performance with an ultra-thin 8 mm panel design that fits standard wall boxes, making it perfect for professional installations.
Key Features:
Wi-Fi 6 Performance: Dual-band 2×2 MIMO with combined throughput up to 1.775 Gbps.
Smart Antennas: Automatically optimize signal direction and strength for seamless roaming.
Enterprise-Grade Reliability: MU-MIMO, OFDMA, 1024-QAM, and BSS-Coloring enhance speed and stability in busy networks.

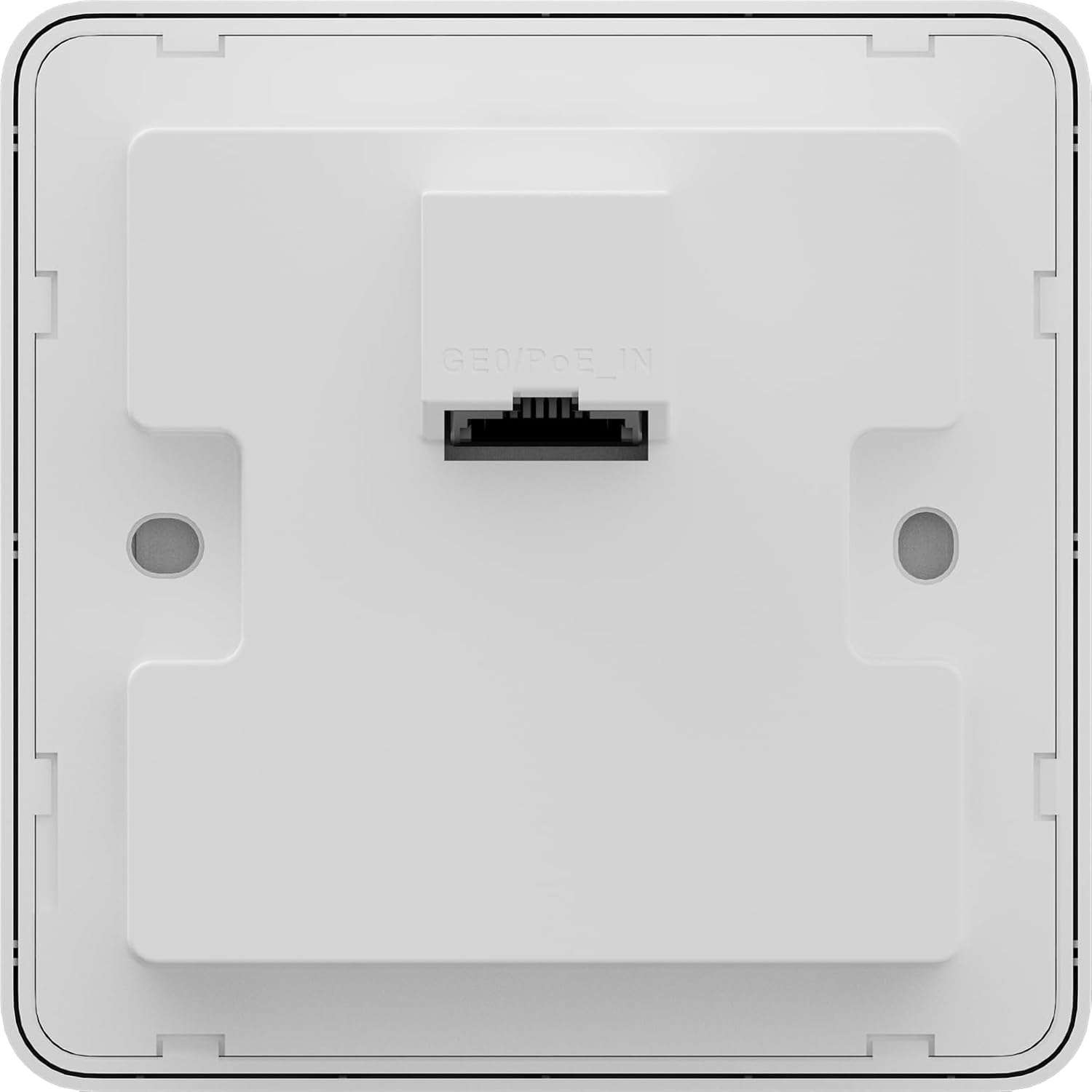

Easy Installation: Powered via PoE (802.3af) with both uplink and downlink gigabit Ethernet ports.
Flexible Deployment: Supports Fit, Fat, and cloud management modes, with quick setup using the Huawei eKit app.
Strong Security: WPA3, WPA2, 802.1X authentication, CAPWAP, and DTLS encryption.
Compact Size: Discreet 86 × 86 mm form factor, lightweight at just 0.14 kg.
Ideal for hotels, apartments, offices, and retail environments where high-speed, stable, and discreet Wi-Fi is required.
Technical Specifications
| Category | Specification |
|---|---|
| Wi-Fi Standard | Wi-Fi 6 (802.11ax), dual-band 2×2 MIMO |
| Max Throughput | 1.775 Gbps (2.4 GHz: 575 Mbps, 5 GHz: 1.2 Gbps) |
| Antennas | Built-in smart antenna (2.4 GHz ~3 dBi, 5 GHz ~2 dBi) |
| Ethernet Ports | 1 × GE uplink, 1 × GE downlink (10/100/1000 Mbps auto-sensing) |
| Power Input | IEEE 802.3af PoE |
| Power Consumption | Max 9.1 W |
| Dimensions | 86 × 86 × 42.5 mm (panel thickness 8 mm) |
| Weight | 0.14 kg |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | –40 °C to +70 °C |
| Humidity | 5–95% RH, non-condensing |
| Altitude | –60 m to +5000 m |
| Deployment Modes | Fit, Fat, Cloud; onboarding via Wi-Fi, barcode, or leader-AP (Huawei eKit app) |
| Wi-Fi Features | MU-MIMO, OFDMA, 1024-QAM, BSS-Coloring, 80 MHz channel width |
| Security | WEP, WPA/WPA2-PSK, WPA3-SAE, PPSK, WPA3-802.1X, CAPWAP, DTLS encryption |
