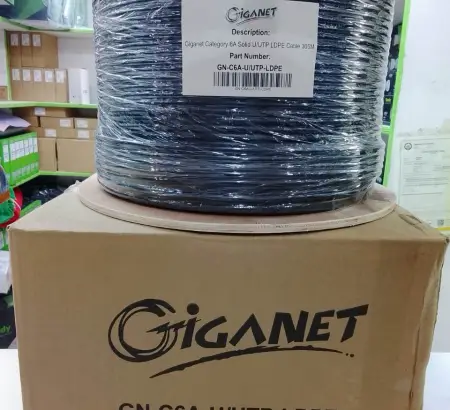

Giganet Category 6A Solid U/UTP Outdoor LDPE Cable – 305m drum GN-C6A-U/UTP-LDPE
The Giganet Category 6A 500Mhz U/UTP LDPE cable has been designed and manufactured to exceed ANSI/TIA-568.2-D, ISO/IEC 11801-1, and EN 50173-1 performance requirements. The cable is ideal for 10 Gigabit networks. The four pairs are individually wrapped with aluminum foil tape with an overall aluminum foil with drain wire to provide immunity from Alien Crosstalk (electromagnetic noise that can occur from one pair to an adjoining cable) and external EMI. The Cat 6A system supports emerging and convergence applications, performance, and ease of termination.
- External Grade
- Insulation Thickness – 0.23mm or 0.0091inches
- Outdoor type
- Four-Number of Pairs
- UV and Moisture Resistant polyethylene Outer Sheath
- Supports Gigabit Ethernet
- 23AWG {0.575mm (0.023 in.)} conductor
- Insulation – LDPE
- Jacket – PE
Features
| Conductor: | 23AWG |
| Length: | 305M |
| Material: | Solid bare Copper |
| Sheath: | HDPE |
| Performance: | 500Mhz |
| Standard: | TIA‐568‐C.2, EN50173‐1 and ISO/IEC 11801 |
