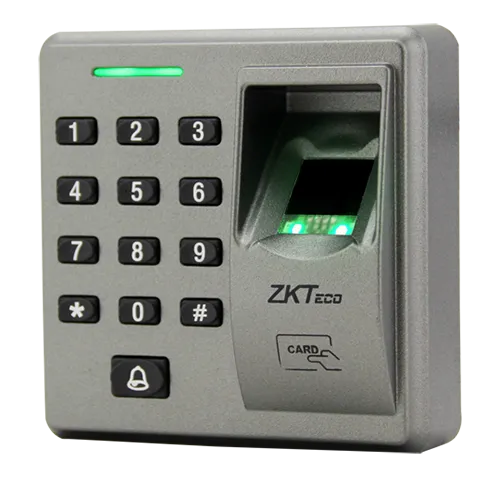

FR1300 Fingerprint Reader Exit Reader
The ZKTeco FR1300 Fingerprint Reader Exit Reader is a compact indoor RS-485 biometric slave reader designed for secure exit and entry authentication in professional access control systems. It works seamlessly with ZKTeco inBio Series biometric access controllers, providing fast and reliable fingerprint verification for offices, commercial buildings, educational institutions, healthcare facilities, and residential properties.
Equipped with ZKTeco’s advanced infrared optical fingerprint sensor, the FR1300 offers quick and accurate biometric recognition while minimizing false acceptance and rejection rates. It also features a built-in 125 kHz EM RFID card reader, allowing users to authenticate using either fingerprint or RFID card. When connected to an inBio controller, the FR1300 also supports password verification for enhanced security.
Key Features
- Indoor biometric slave fingerprint reader
- Designed as an exit or entry reader for access control systems
- RS-485 communication interface
- Compatible with ZKTeco inBio Series controllers
- Advanced infrared optical fingerprint sensor
- Built-in 125 kHz EM RFID card reader
- Optional MIFARE/IC card support
- Password authentication when used with inBio controllers
- LED status indicator and built-in buzzer
- Supports wired doorbell function
- Energy-saving auto-sleep fingerprint sensor
- Flush-mounted installation for standard electrical boxes
- Reliable and fast fingerprint verification
- Low power consumption
Technical Specifications | |
| Sensor | ZK Infrared Optical Sensor |
| Communication | RS485 |
| Built-in Card Reader | 125 kHz EM card reader, Optional Mifare card reader |
| Optional Function | Mifare Card Module |
| Power Supply | DC 12V |
| Operating Temperature | 0°C ~ 45°C |
| Operating Humidity | 20% ~ 80% |
| Dimension | 88mm×88mm×33.6mm |
