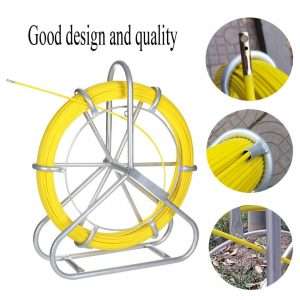

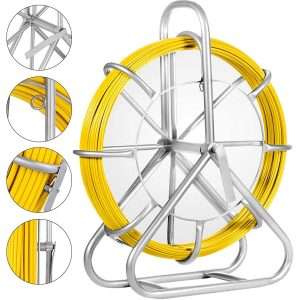

14mm 200m plastic cable guide Fiberglass duct rodder with wheels
The 14mm 200m Plastic Cable Guide Fiberglass Duct Rodder with Wheels is a professional-grade cable installation tool designed for pulling and guiding cables through underground ducts, conduits, and pipelines. Manufactured with a high-strength fiberglass core and a durable plastic coating, it delivers the flexibility and tensile strength required for demanding cable installation projects.
The 14mm 200m Plastic Cable Guide Fiberglass Duct Rodder with Wheels features an integrated wheeled frame that improves mobility and makes transportation easier across job sites. With a 200-meter rod length and a 14mm diameter, it is ideal for long-distance fiber optic, electrical, and telecommunications cable installations.
Specification
Rod Diameter(mm) | Φ4.5, Φ6, Φ8, Φ9, Φ10, Φ11, Φ12, Φ13, Φ14, Φ15, Φ16 | |||
Rod Length(m) | 30m~500m, or 600-10000m | |||
Frame Spec.(mm) | 1300x450x1330, 1200x420x1220, 980x350x1000, 680x240x700, 420x180x400, or without frame. or with wooden drum | |||
Fiberglass rod inner | Extruded fiberglass and high strength resin at high temperature | |||
Fiberglass rod cover | UV-resistant pp cover | |||
Metal Frame | Galvanized steel tube | |||
Fiberglass content | 75-80% | |||
Density | >1.9gr/cm3 | |||
Working environment | -40°Cto+80°C | |||
Minimum Pulling strength | 4000N+/-5% | |||
Rod consistency | 137gr/m | |||
Flexural Modulus | >46.500Mpa | |||
Elongation at break | 2.5-3% | |||
Min Bending Radius | 388mm | |||
14mm 200m Plastic Cable Guide Fiberglass Duct Rodder
14mm 200m plastic cable guide Fiberglass duct rodder push pull rod.
Material: Fiberglass Core, and ABS Layer
Trademark: longtime
Application: Pipeline Operations, Cable Pulling
Length: 50 100 150 200 250 300m/etc
Fiberglass FRP Duct Rodder 14mm 200m Fiber Pulling Wire
Fiberglass cable snake duct rodder flexible cable for push rod · FRP conduit duct rodder is an ideal tool for underground jobs such as pulling cables and lines …
14mm 200m Traceable Fiberglass Frp Fiber Optical Cable
Fiberglass duct rodder is selected as a special tool for pulling electric cables and optical fiber cables in telecom, power industries, buildings and many other …
14mm Duct Rodder – Fiberglass duct rod
Which make them safe for use in cable pulling in the conduit. Fiberglass duct rodder will equipped with different size reel according to the length of rod.
Fiberglass duct rodder
FRP duct rodder With inner cage · Orange Fiberglass Cable Guide Push Puller · Fiberglass Cable Cobra Rod · 10mm x 200m Red Fiberglass Cable Rod · 8mm x 150m Blue …
High strength Fiberglass Cable Guide Roller
Fiberglass duct rodder packed in plastic woven, pallet or as your request … strength Fiberglass Cable Guide Roller / 14mm*250m Fiberglass push duct rod.
