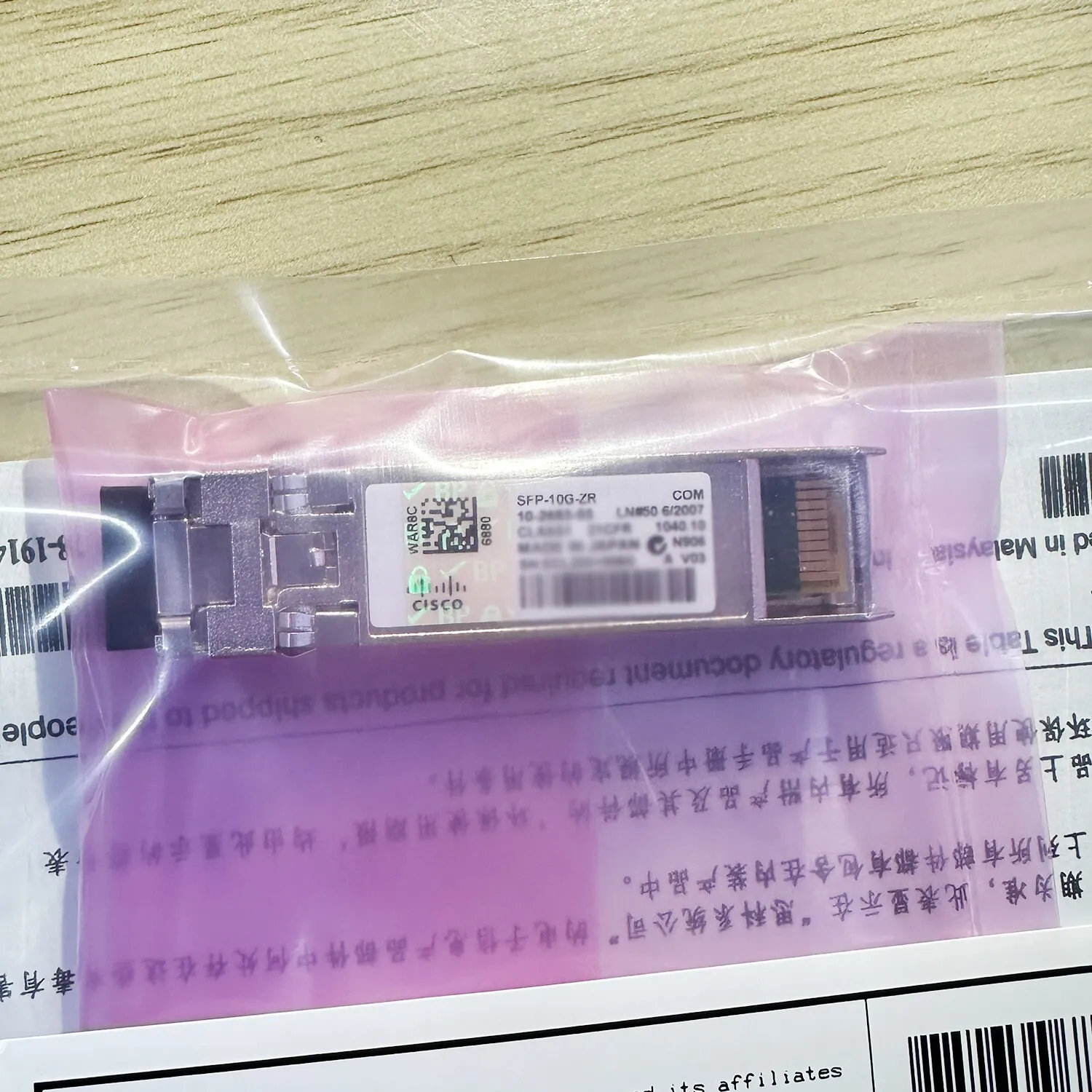

Cisco SFP-10G-ZR 10G SFP+ ZR Transceiver – 1550nm, 80km, LC SMF
The Cisco SFP-10G-ZR is a high-performance 10G SFP+ transceiver module designed for long-distance data transmission over single-mode fiber (SMF). Operating at a 1550nm wavelength, it supports links up to 80 kilometers—ideal for telecom networks, data centers, and enterprise backbone connections.
Built to Cisco’s proprietary specifications, this multi-rate module supports 10GBASE-ZR, 10GBASE-ZW, and OTU2/OTU2e applications. It’s compatible with a wide range of Cisco switches and routers, offering exceptional reliability and compatibility.
Key Features:
Model: Cisco SFP-10G-ZR
Wavelength: 1550nm
Distance Support: Up to 80km on standard G.652 SMF
Connector Type: LC duplex
Transmit Power: 0 to 4 dBm
Receive Sensitivity: -24 to -7 dBm
Power Consumption: Max 1.5W
Operating Temperature Range: 0°C to 70°C (Commercial)
Dimensions: 8.5 x 13.4 x 56.5 mm
Platform Support: Compatible with Cisco 7600, ASR 900/1000/9000, Catalyst 2960-X, 3850, 4500-X, and Nexus 2000–9500 Series
Bail Latch Color: Green for easy identification
Note: An optical attenuator may be required depending on fiber length:
<5km: 15dB
5–15km: 10dB
15–25km: 5dB
Ideal For:
Long-haul fiber connections
High-bandwidth backbones
Service provider environments
Data centers requiring reliable 10G connectivity over long distances
Ensure your network infrastructure is built for endurance and high performance with the Cisco SFP-10G-ZR – a long-range SFP+ solution from the industry leader.
