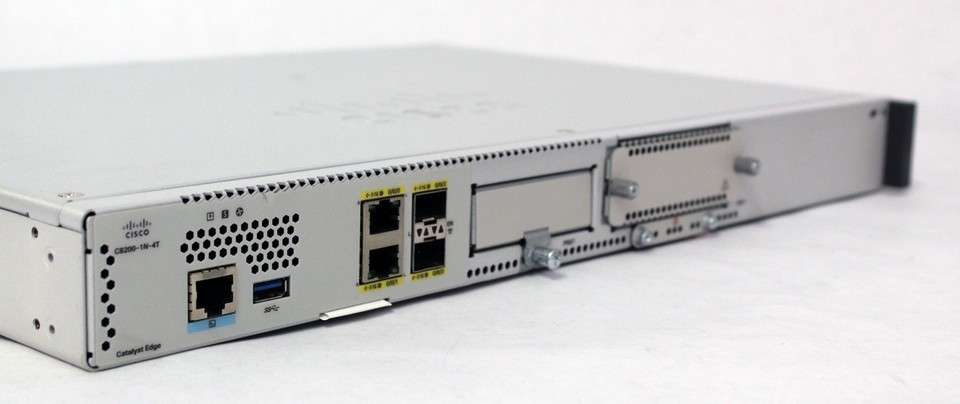

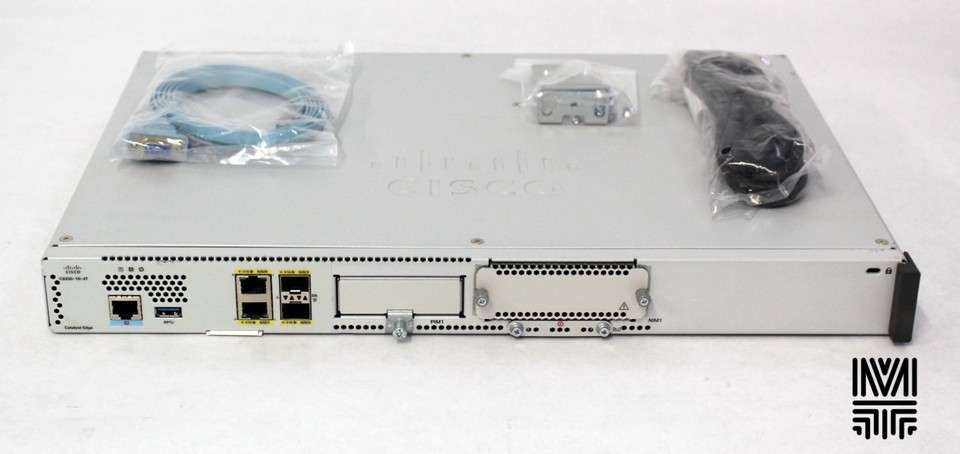

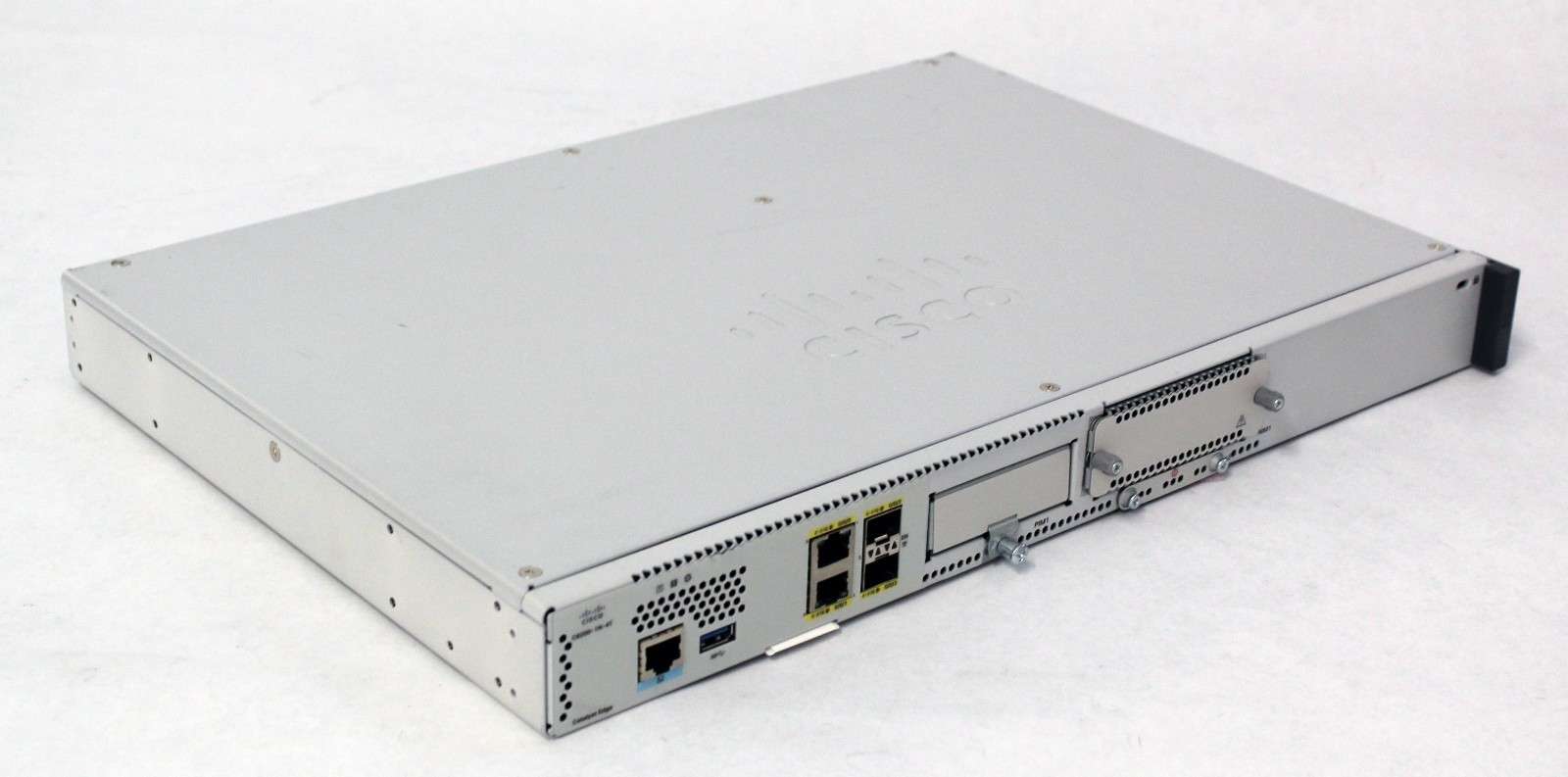

Cisco C8200-1N-4T Router
The Cisco C8200-1N-4T Router is part of the Cisco Catalyst 8200 Series, engineered for small to medium-sized branch offices requiring secure, scalable, and cloud-ready WAN connectivity. It combines enterprise-grade routing, SD-WAN capabilities, advanced security, and application optimization in a compact 1RU platform.
Built with an 8-core processor, 8GB DRAM, and support for modular expansion through a NIM slot, the C8200-1N-4T delivers exceptional performance for modern business networks. It supports 4 integrated Gigabit WAN interfaces, including both RJ45 and SFP connectivity options, providing deployment flexibility for fiber and copper networks.
The router offers integrated SD-WAN, advanced VPN services, application-aware routing, cloud security integration, and centralized management through Cisco vManage and Cisco Catalyst Center. With hardware-accelerated IPsec encryption, it can achieve up to 1 Gbps of secure VPN throughput, making it ideal for distributed enterprise environments.
Whether deployed as a branch router, SD-WAN edge device, or secure WAN gateway, the Cisco C8200-1N-4T delivers reliable performance, enhanced security, and future-ready networking capabilities.
Key Features
- Enterprise-class SD-WAN edge router
- 8-core multicore processor
- 4 × 1 Gigabit WAN interfaces
- 2 × RJ45 Gigabit Ethernet ports
- 2 × Gigabit SFP ports
- 1 NIM expansion slot
- Up to 1 Gbps IPsec VPN throughput
- Cisco IOS XE operating system
- Cloud-managed via Cisco vManage
- Advanced routing, security, and WAN optimization
- Rack-mountable 1RU design
- Support for SASE and cloud security integration
Technical Specifications
| Specification | Details |
|---|---|
| Model | C8200-1N-4T |
| Product Series | Cisco Catalyst 8200 |
| Form Factor | 1RU Rack Mount |
| CPU | 8-Core Processor |
| Memory | 8GB DRAM (Upgradeable) |
| Storage | 16GB M.2 Storage |
| WAN Ports | 4 × 1 Gigabit WAN Ports |
| RJ45 Ports | 2 × Gigabit Ethernet |
| SFP Ports | 2 × Gigabit SFP |
| Expansion Slots | 1 × NIM Slot, 1 × PIM Slot |
| USB Ports | USB Management Port |
| SD-WAN Throughput | Up to 1 Gbps |
| IPsec Throughput | Up to 1 Gbps |
| Operating System | Cisco IOS XE |
| Input Voltage | 90–264 VAC |
| Dimensions | 1.73 × 17.25 × 11.8 inches |
| Weight | 4.54 kg |
| Operating Temperature | 0°C to 40°C |
Applications
- Enterprise branch networking
- SD-WAN deployments
- Secure VPN connectivity
- Multi-site business networks
- Cloud application access
- Managed service provider networks
- WAN edge routing
- Hybrid cloud connectivity
