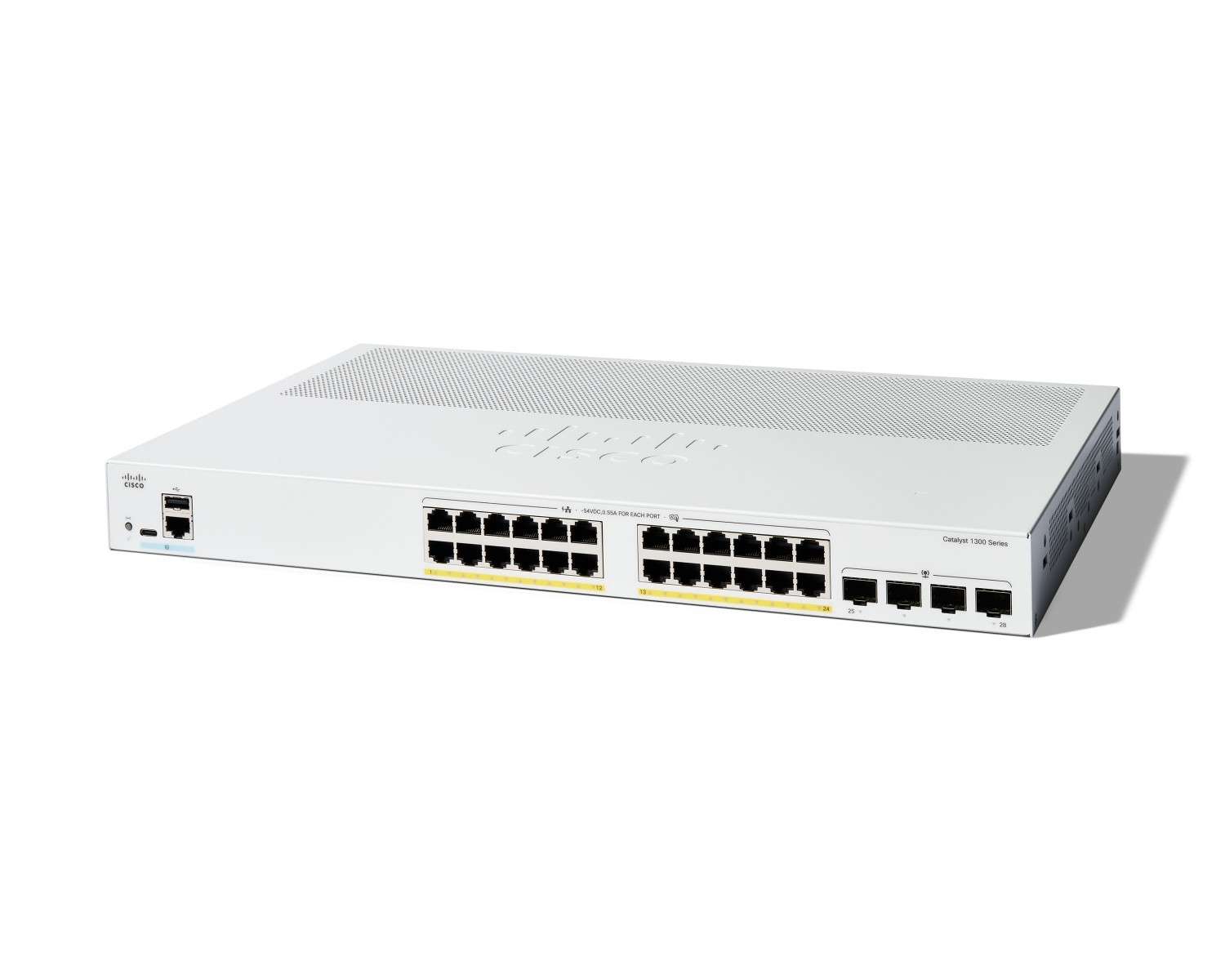

Cisco C1300-24P-4X Catalyst 1300
The Cisco C1300-24P-4X Catalyst 1300 is a high-performance 24-Port Gigabit Ethernet switch with PoE support and 4×10G SFP+ uplinks, designed for enterprise networks, small to medium businesses, and high-density environments. It provides reliable connectivity for IP phones, access points, cameras, and other network devices directly from the switch using Power over Ethernet (PoE). The 4×10G SFP+ uplinks enable high-speed aggregation for backbone connections, while its compact rackmount-ready design ensures easy deployment in offices and branch locations. Advanced Layer 2 and Layer 3 features, along with Cisco management tools, make it a versatile and scalable solution for modern network infrastructures.
Key Specifications
Model: Cisco C1300-24P-4X Catalyst 1300
Ports: 24× Gigabit Ethernet (GE) with PoE
Uplinks: 4× 10G SFP+
PoE Support: Yes, IEEE 802.3af/at
Switching Capacity: 128 Gbps (example typical value)
Forwarding Rate: 95 Mpps (approximate)
Layer Support: Layer 2 and Layer 3 features
Management: Web GUI, CLI, Cisco DNA Center compatible
Form Factor: 1U rackmount, compact design
Power Supply: Internal AC, redundant optional
Fan Type: Internal cooling
Dimensions: ~44 x 440 x 300 mm (1.73” x 17.32” x 11.81”)
Weight: ~6 kg (13.2 lbs)
Use Cases: Enterprise offices, SMBs, branch deployments, high-density networks
Advanced Features: VLANs, QoS, Spanning Tree, Link Aggregation, PoE scheduling, ACLs
