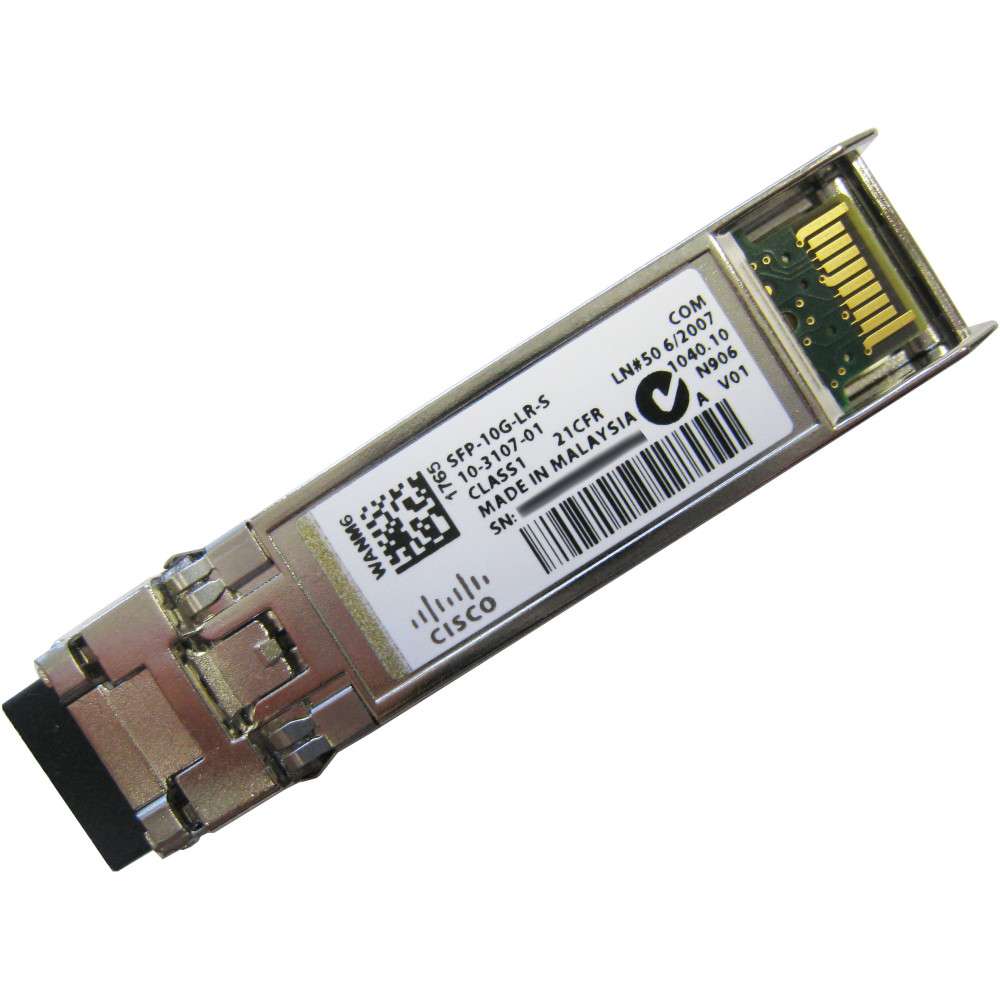

Cisco 10G SFP Singlemode module SFP-10G-LR
The Cisco SFP-10G-LR 10GBASE-LR SFP+ Singlemode Module delivers outstanding network performance for high-speed 10 Gigabit Ethernet applications. Operating at a 1310 nm wavelength, it transmits data over single-mode fiber (SMF) for distances up to 10 km, making it ideal for inter-building, metro, or backbone connections.
With its compact SFP+ form factor, the module is hot-swappable, allowing for quick installation or replacement without network downtime. It supports Digital Optical Monitoring (DOM), enabling administrators to monitor optical power, temperature, and voltage in real time for proactive maintenance.
Built to meet Cisco’s rigorous standards, the SFP-10G-LR guarantees compatibility, energy efficiency, and consistent link quality. It’s a preferred choice for data centers, enterprises, and service providers that demand high reliability and scalable network performance.
Specifications:
| Feature | Description |
|---|---|
| Model | Cisco SFP-10G-LR |
| Type | 10GBASE-LR SFP+ Optical Transceiver |
| Data Rate | 10 Gbps |
| Fiber Type | Single-mode fiber (SMF, 9/125 µm) |
| Wavelength | 1310 nm |
| Maximum Transmission Distance | Up to 10 km |
| Connector Type | Duplex LC |
| Form Factor | SFP+ (hot-swappable) |
| Operating Temperature | 0°C to 70°C (standard version) |
| Power Consumption | Typically < 1.3 W |
| Digital Optical Monitoring (DOM) | Supported |
| Standards Compliance | IEEE 802.3ae 10GBASE-LR, SFP+ MSA, RoHS compliant |
| Compatibility | Fully compatible with Cisco switches, routers, and network devices |
Applications:
Enterprise backbone and core network links
Data center interconnections
Campus and metropolitan area networks
Long-distance switch-to-switch or router connectivity
High-speed fiber uplinks and aggregation networks
Specification
- Operates on ordinary multimode fiber-optic (MMF) link spans up to 2 kilometers long. For 100Mbps Ethernet ports
- Supports digital optical monitoring (DOM) capability
- Robust design for enhanced reliability
- 1000BASE-T SFP for Copper Networks
- Module Type: SFP+
- Data Rate: 10 Gbps
- Interface: LC duplex connector
- Optical Fiber Type: Singlemode
- Wavelength:
- 1310 nm (nanometers)
- Maximum Cable Distance:
- Depending on the specific module and the Singlemode fiber type, distances can vary from 10 kilometers (km) to 80 km or more.
- Compatibility: These modules are compatible with various Cisco networking devices, but compatibility can vary depending on the specific module model.
