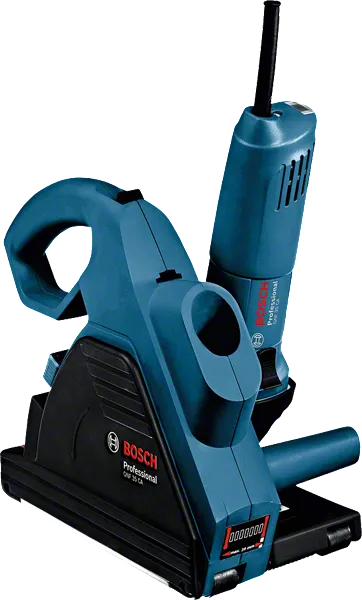

The Bosch PRO GNF 35 CA Wall Chaser is a powerful professional-grade wall chasing machine designed for creating clean and precise channels in concrete, brick, and masonry. Powered by a 1,400 W high-performance motor with Constant Electronic technology, it maintains consistent cutting speed under heavy loads, ensuring efficient performance on demanding construction sites.
Designed with an excellent power-to-weight ratio and ergonomic grip zones, the GNF 35 CA minimizes operator fatigue during prolonged use. It features adjustable groove depths up to 35 mm and groove widths from 3 mm to 39 mm, making it ideal for installing electrical conduits, plumbing pipes, communication cables, and HVAC systems. The tool is compatible with the Bosch Click & Clean dust extraction system, helping maintain a cleaner and healthier work environment. It also includes soft start and spindle lock for safer operation and easier accessory changes.
Key Features
- Powerful 1,400 W motor for demanding applications
- Constant Electronic technology maintains cutting speed under load
- Adjustable cutting depth from 0–35 mm
- Adjustable groove width from 3–39 mm
- Large 150 mm diamond disc capacity
- Ergonomic design with optimized grip zones
- Soft start for smooth operation
- Spindle lock for quick disc changes

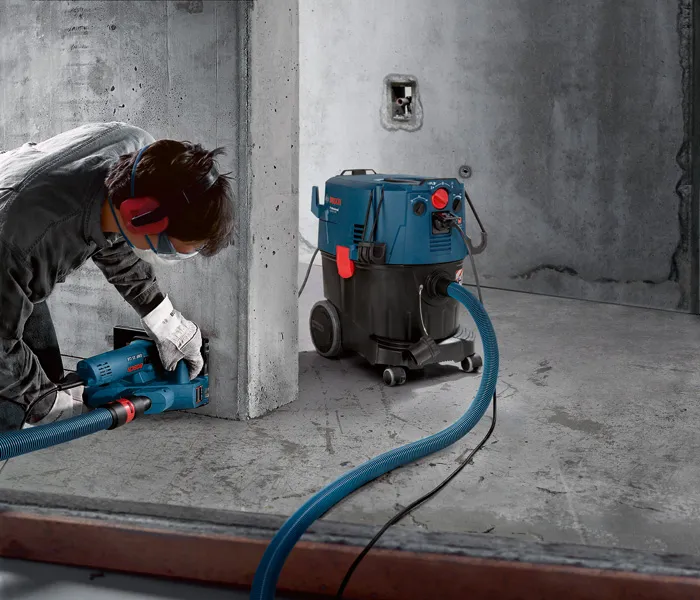

- Compatible with Bosch Click & Clean dust extraction
- Durable construction for professional use
Specifications
| Specification | Details |
|---|---|
| Brand | Bosch Professional |
| Model | PRO GNF 35 CA |
| Product Type | Wall Chaser |
| Rated Input Power | 1,400 W |
| Power Output | 820 W |
| No-Load Speed | 9,300 rpm |
| Disc Diameter | 150 mm |
| Adjustable Groove Depth | 0–35 mm |
| Groove Width | 3–39 mm |
| Spindle Thread | M14 |
| Mounting Bore | 22.23 mm |
| Weight | 4.7 kg |
| Soft Start | Yes |
| Constant Electronic | Yes |
| Spindle Lock | Yes |
| Dust Extraction | Bosch Click & Clean Compatible |
| Recommended Materials | Concrete, Brick, Stone, Masonry |
Package Contents
- Bosch PRO GNF 35 CA Wall Chaser
- Carrying Case
- Backing Flange
- Round Nut
- Spacer Set
- Two-Hole Spanner
- Break-Out Tool
- User Manual
Applications
- Electrical conduit installation
- Plumbing pipe channels
- Cable routing
- HVAC installations
- Concrete wall chasing
- Brick and masonry cutting
- Residential and commercial construction
- Renovation and maintenance projects
