Bosch GLL 12V-100-33 CG Professional Line Laser
The Bosch GLL 12V-100-33 CG Professional Line Laser delivers exceptional accuracy and visibility for professional leveling and alignment applications. Equipped with three full 360° green laser planes, it projects one horizontal and two vertical laser lines, enabling complete room coverage with fewer repositioning steps.
Built for demanding jobsite conditions, this laser features a rugged IP65-rated rubber-reinforced housing that provides superior protection against dust, water, and impacts. The integrated Bluetooth® connectivity allows users to remotely control the laser lines using the Bosch Levelling Remote App, increasing efficiency and reducing setup time.
Powered by either a Bosch 12V Li-Ion battery or standard AA batteries, the GLL 12V-100-33 CG ensures uninterrupted operation throughout the workday. When paired with the Bosch LR 7 laser receiver, its working range extends up to 100 meters, making it suitable for both indoor and outdoor applications.
Key Features
- Bright 3 x 360° green laser lines
- Highly visible green laser technology
- Bluetooth® remote control via Levelling Remote App
- Dual power source (12V Li-Ion & AA batteries)
- Automatic self-leveling within ±4°
- Professional accuracy of ±0.3 mm/m
- Receiver mode extends working range to 100 m
- Rugged IP65 dust, water, and impact protection
- Rubber-reinforced housing for jobsite durability
- Dual tripod mounting threads (1/4″ & 5/8″)
- Compatible with Bosch LR 7 Laser Receiver
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Bosch GLL 12V-100-33 CG Professional Line Laser |
| Brand | Bosch Professional |
| Model | GLL 12V-100-33 CG |
| Product Type | 360° Green Line Laser |
| Laser Colour | Green |
| Laser Class | Class 2 |
| Laser Wavelength | 500–540 nm |
| Laser Output | <10 mW |
| Laser Projection | 3 × 360° Laser Lines |
| Working Range | Up to 30 m |
| Working Range with Receiver | Up to 100 m (radius) |
| Accuracy | ±0.3 mm/m |
| Self-Leveling Range | ±4° |
| Leveling Time | 4 Seconds |
| Protection Rating | IP65 |
| Connectivity | Bluetooth® (Levelling Remote App) |
| Power Supply | Bosch 12V Li-Ion Battery or 4 × AA Batteries |
| Battery Runtime | Up to 6 Hours (12V Battery), Up to 4 Hours (AA Batteries) |
| Tripod Thread | 1/4″ & 5/8″ |
| Weight | Approx. 0.96 kg |
| Operating Temperature | -10°C to +40°C |
| Storage Temperature | -20°C to +70°C |
| Compatible Laser Receiver | Bosch LR 7 |
Applications
The Bosch GLL 12V-100-33 CG Professional Line Laser is ideal for:
- Drywall installation
- Ceiling installation
- Floor leveling
- Tile installation
- Electrical installations
- Plumbing layouts
- Cabinet installation
- Window and door alignment
- Steel framing
- Interior renovations
- Commercial construction
- Surveying and layout work

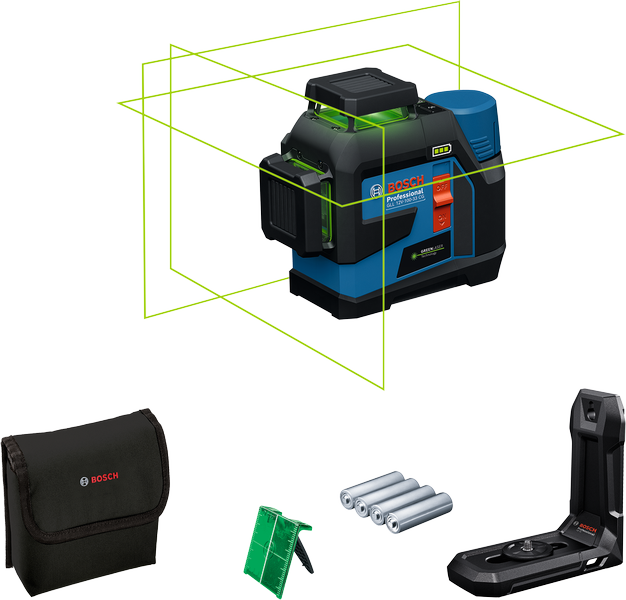

Package Includes
- Bosch GLL 12V-100-33 CG Professional Line Laser
- Universal Mount LB 10 Professional
- Laser Target Plate
- Protective Pouch
- AA Battery Adapter
- 4 × AA Batteries (or 12V battery kit depending on package variant)
- User Manual
