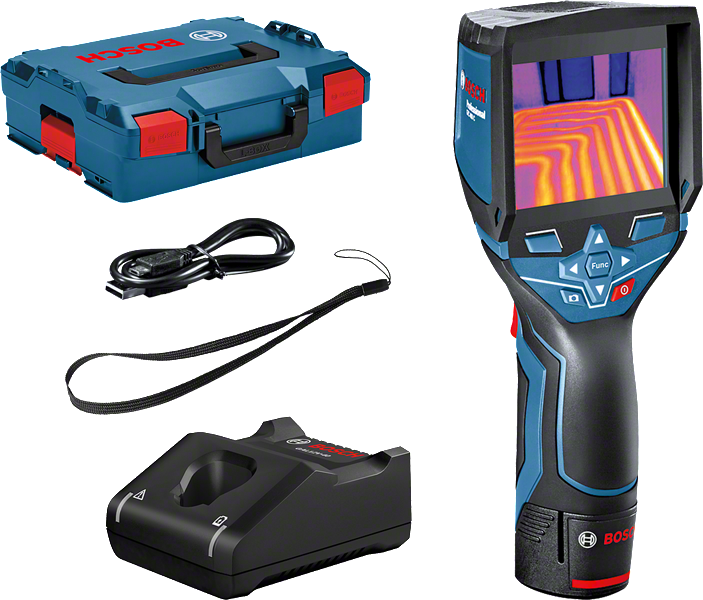

Buy Bosch GTC 400 C Professional Thermo Camera from Brighttech Limited.
The Bosch GTC 400 C Professional Thermal Camera is a high-performance thermal imaging camera designed for electricians, HVAC technicians, facility managers, building inspectors, and maintenance professionals. It enables users to quickly detect and visualize temperature differences, making it easy to identify overheating electrical components, heat loss, moisture issues, insulation defects, and underfloor heating systems.
Featuring a measurement range of -10°C to +400°C, the GTC 400 C delivers accurate thermal images using a 160 × 120 infrared sensor with 19,200 temperature measurement points. Its innovative Picture-in-Picture (PiP) technology overlays thermal images onto real images, allowing precise identification of hotspots and problem areas for faster diagnosis and repairs.
The camera includes a 3.5-inch colour display, Wi-Fi and Micro USB connectivity for easy image transfer, and compatibility with the Bosch ThermalOn App for documenting and sharing inspection results. Built for demanding jobsite conditions, the GTC 400 C features an IP53-rated housing and offers flexible power options using either a Bosch Professional 12V battery or 4 AA batteries.
Key Features
- Thermal measurement range from -10°C to +400°C
- 160 × 120 pixel infrared sensor
- 19,200 temperature measurement points
- Picture-in-Picture (PiP) technology for accurate hotspot identification
- 3.5-inch colour display
- High thermal sensitivity (NETD ≤50 mK)
- Temperature resolution of 0.1°C
- Wi-Fi and Micro USB connectivity
- Compatible with the Bosch ThermalOn App
- Internal memory for up to 500 images
- IP53-rated dust and splash protection
- Dual power source: Bosch Professional 12V battery or 4 × AA batteries
- Ideal for electrical, HVAC, plumbing, building inspection, and preventive maintenance applications
Technical Specifications for Bosch GTC 400 C Professional Thermo Camera
| Specification | Details |
|---|---|
| Product Name | Bosch GTC 400 C Professional Thermal Camera |
| Model | GTC 400 C |
| Measurement Range | -10°C to +400°C |
| Measuring Accuracy | ±3°C (plus application-dependent deviation) |
| Temperature Resolution | 0.1°C |
| Thermal Sensor Resolution | 160 × 120 pixels |
| Number of Measuring Points | 19,200 |
| Thermal Sensitivity (NETD) | ≤50 mK |
| Field of View | 53° × 43° |
| Display | 3.5-inch Colour Display |
| Image Modes | Thermal Image, Picture-in-Picture (PiP), Visual Image |
| Data Transfer | Wi-Fi, Micro USB |
| Memory Capacity | Internal Memory (Up to 500 Images) |
| Image File Format | JPEG (.jpg) |
| Minimum Focus Distance | 0.3 m |
| Power Supply | Bosch Professional 12V Battery, Bosch 10.8V Battery, or 4 × AA Batteries |
| Protection Rating | IP53 |
| Operating Temperature | -10°C to +45°C |
| Storage Temperature | -20°C to +70°C |
| Dimensions | 95 × 233 × 63 mm |
| Weight | Approx. 0.54 kg |
Ideal Applications
- Electrical panel inspections
- Detecting overheating electrical components
- HVAC system diagnostics
- Building insulation inspections
- Moisture and water leak detection
- Underfloor heating inspection
- Roof and façade inspections
- Preventive maintenance
- Industrial equipment monitoring
- Facility management and energy audits
Package Contents
- Bosch GTC 400 C Professional Thermal Camera
- Hand Strap
- Micro USB Cable
- L-BOXX Carrying Case (kit-dependent)
- Bosch Professional 12V Battery (selected kits only)
- Battery Charger (selected kits only)
- User Manual
Bosch Camera Thermo (-10 °C to +400 °C) (GTC 400 C)
- Data transfer via Wi-Fi and USB using Bosch Thermal App or PC software for efficient documentation
